Glassware

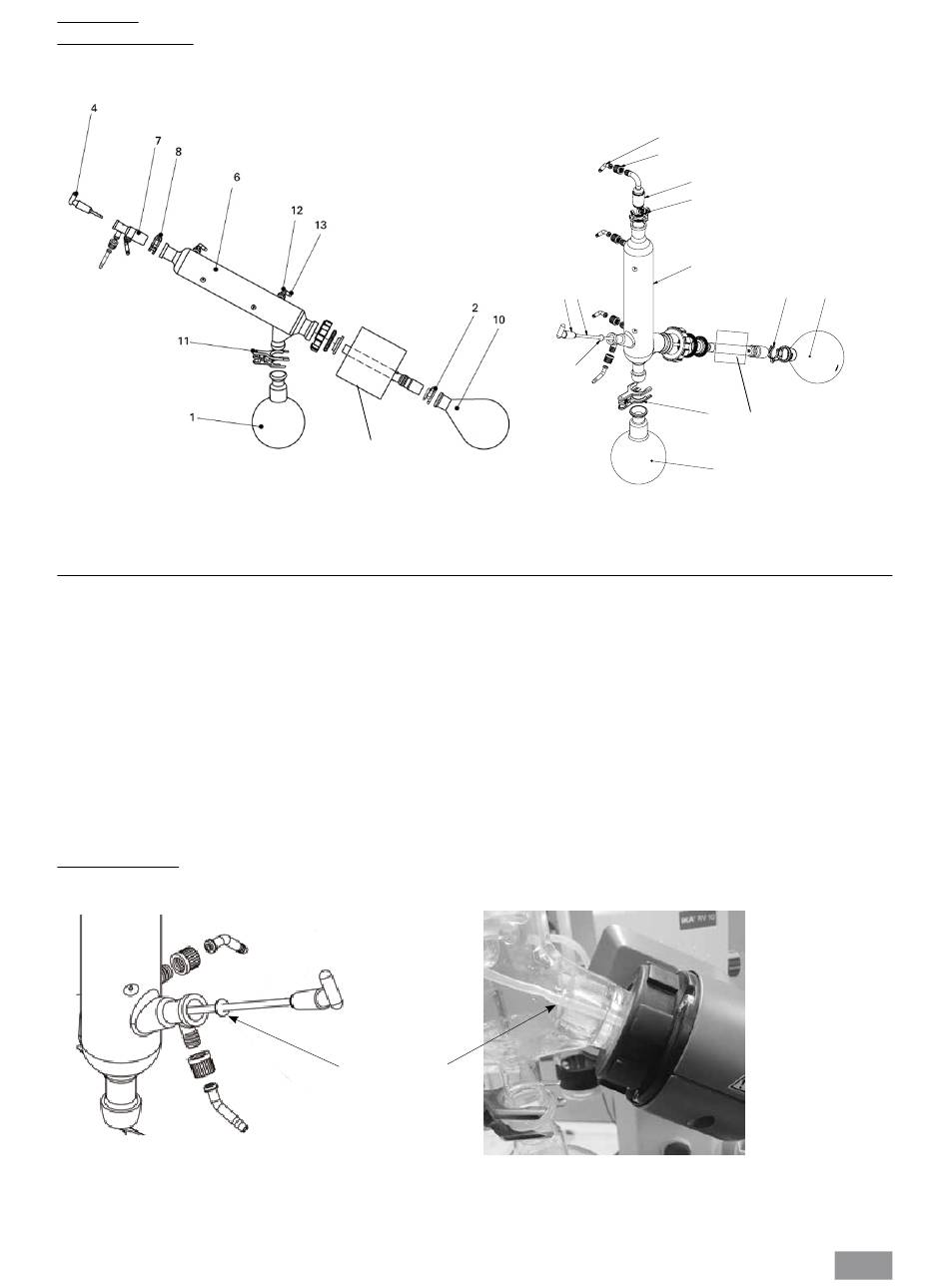

Mounting the glassware
Item Designation
1 Receiving flask
2 Clamp NS 29, stainless steel
4 Stopcock
5 Tube
6 Condenser
7 Connection
8 Clamp NS 29, plastic
10 Evaporator piston 1000 ml
11 Ball joint clamp RV 05.10
12 Screw joint cap
13 Hose connection
18 Washer
Mounting the washer
Note: Pay attention to the correct position of the washer.
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
Rotary head
Drainage washer
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
13 (4x)
12 (4x)
7
8
6
4 5
18
11
1
Quantity
diagonal glassware
1
1
1
-
1 Diagonal condenser
1 Introduction sleeve
1
1
1
4
4
-
2 10
Rotary head
Quantity
vertical Glassware
1
1
1
1
1 Vertical condenser
1 Vacuum connection
1
1
1
4
4
1
