Removing the condenser
 Use the ring spanner provided to loosen union nuts that are tightly
fitted.
 Loosen the union nut by turning anticlockwise.
 Remove the Velcro ® .
Hose system

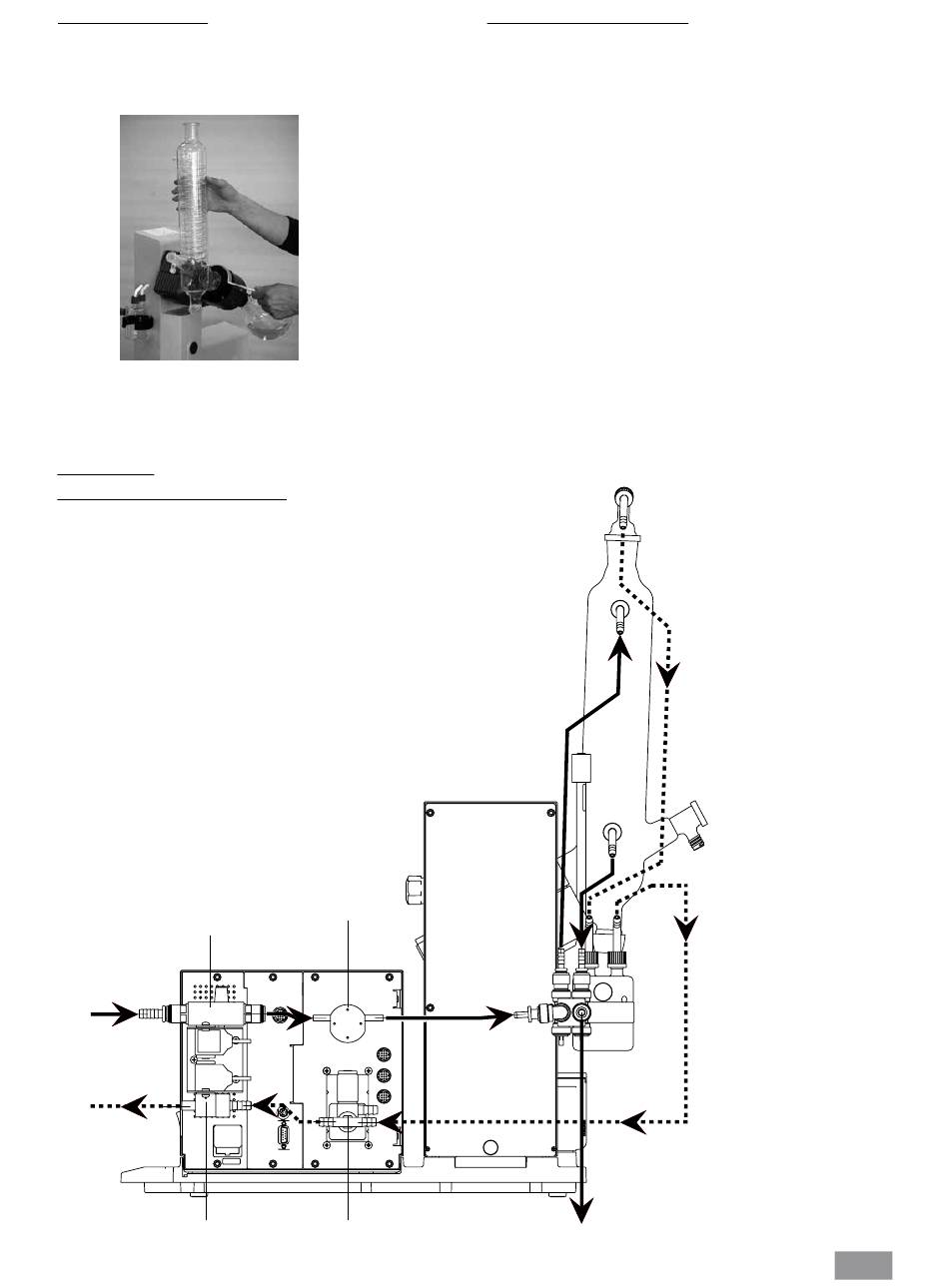

Schematic view of hose system (rear view)
RV 10.5001
Water regulator
valve,
optional
Water
Vacuum
2x T1,6A 250V
RV 10.4002
Vacuum valve
Fig. 13
Flow meter
Pressure sensor
and
bleed valve
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design for
particularly efficient condensation.
Also available with coating (RV 10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum condensation
thanks to low temperatures.
Also available with coating (RV 10.40)
(Cannot be used in automatic mode for the RV10 control)
• RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV 10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-off
valve for reflux distillation
This vertical-intensive action condenser features a double jacket design
for particularly efficient reflux distillation.
Also available with coating (RV 10.60)
Water
46
Fig. 14
