BFT RIGEL 6 Instructions D'installation page 38

x2
***
0--- 10--
ALT follow the user guide
Add. 1ch
Add. 2ch
Add. 3ch
Add. 4ch
erase 64
erase 1
language
For AUTOSET menu,
autoset
see simplified menu
Control unit
software version
stat
vers OK
- +
No total manoeuvres(in hundreds)
n. cycles
OK
- +
No radio controldevices memorised
n. remotes
OK
- +
List of last 30 errors
err OK
password 0---
38
- RIGEL 6

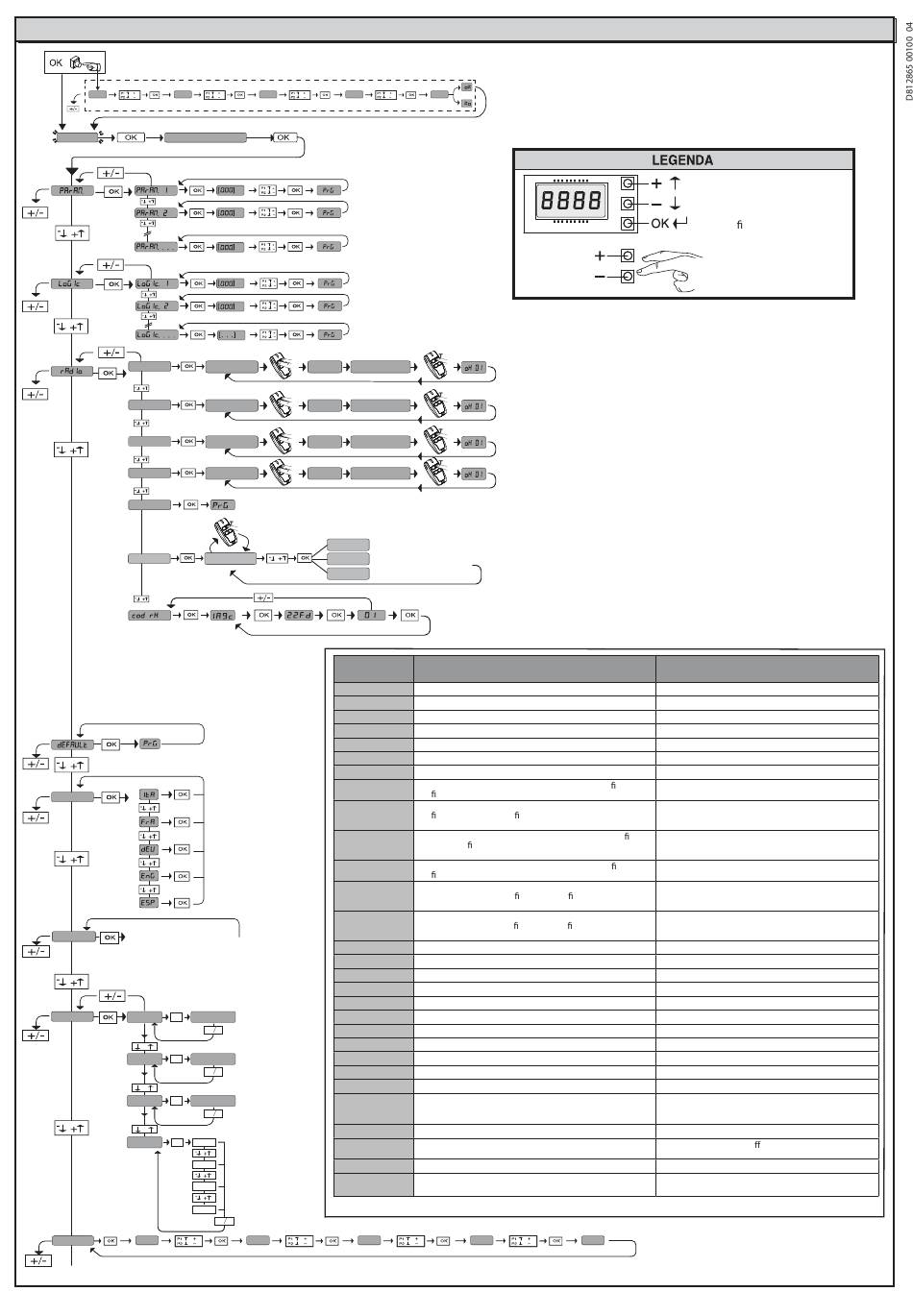

ACCESS MENUS Fig. 1 INSTALLATION MANUAL
150- 1520
See PARAMETERS MENU
See LOGIC MENU
hidden butt release
desired button
hidden butt release
desired button
hidden butt release
desired button
hidden butt release desired button
ok
( 0001 )
KO
dis
Diagnostics
code
STRE
STRI
OPEN
CLS
PED
TIME
STOP
PHOT
PHOP
PHCL
BAR
baro
barc
SWC1
SWO1
SWC2
SWO2
ER01
ER02
bft . . .
+ -
ER03
ER04
er06
0000
+ - ER07
ER08
00
ER1x*
+ -
ER3x*
01. 3 3
ER7x*
02. 0 1
ERf3
ERF9
........
30. 1 5
+ -
10-- 150-
ok
See RADIO MENU
If cancelled
If not present
If clone, it is disabled
DESCRIPTION
START E external start input activated
START I internal start input activated
OPEN input activated
CLOSE input activated
PED pedestrian input activated
TIMER input activation or activation time band
STOP input activated
Activation of PHOT photocell input or, if con gured as
veri ed photocell, Activation of the associated FAULT input
Activation of PHOT OP opening photocell input or, if
con gured as active veri ed photocell only when opening,
Activation of the associated FAULT input
Activation of PHOT CL closing photocell input or, if con gured
as active veri ed photocell only when closing, Activation of
the associated FAULT input
Activation of BAR safety edge input or, if con gured as
veri ed safety edge, Activation of the associated FAULT input
Activation of BAR safety edge input with ACTIVE reversal ONLY
WHILE OPENING, or, if con gured as veri ed safety edge active
only while opening, Activation of the associated FAULT input
Activation of BAR safety edge input with ACTIVE reversal ONLY
WHILE CLOSING, or, if con gured as veri ed safety edge active
only while closing, Activation of the associated FAULT input
SWC1 motor 1 closing limit switch input activated
SWO1 motor 1 opening limit switch input activated
SWC2 motor 2 closing limit switch input activated
SWO2 motor 2 opening limit switch input activated
Photocell test failed
Safety edge test failed
Opening photocell test failed
Closing photocell test failed
8k2 safety edge test failed
Opening safety edge test failed
Closing safety edge test failed
Board hardware test error
Reverse due to obstacle - Amperostop
Internal system supervision control error.
Error in setting the SAFE inputs
Solenoid lock output overload
*X= 0, 1, .., 9, A, B, C, D, E, F
1520
*** Password entry.
Request with Protection Level
logic set to 1, 2, 3, 4
Scroll up
Scroll down
Con rm/Switch on display
Exit Menù
NOTES
Check photocell connection and/or logic settings
Check safety edge connection and/or logic settings
Check photocell connection and/or parameter/logic setting
Check photocell connection and/or parameter/logic setting
Check safety edge connection and/or parameter/logic settings
Check safety edge connection and/or parameter/logic settings
Check safety edge connection and/or parameter/logic settings
- Check connections to motor
- Hardware problems with board (contact technical
assistance)
Check for obstacles in path
Try switching the board o and back on again. If the prob-
lem persists, contact the technical assistance department.
Check the setting of the SAFE inputs is correct
-Check lock connections
- Unsuitable lock
prg
