Rechargeable Power Cartridge (Battery)
The Eclipse 5 can be powered by the rechargeable
Power Cartridge (Battery), which is supplied with
the device.
Installing the Battery: Align the Battery so that it
will slide into the empty Power Compartment. Push
the Battery into the empty Power Compartment
until it locks (clicks) into position and is flush with
the back of the device. When the Battery is properly
installed and the Eclipse 5 is ON, the Battery Status
Gauge will appear on the Control Panel. (If you DO
NOT have a Battery installed, the Power Cartridge
Status Gauge will not illuminate). The unit will still
operate on external power.
To remove the Battery, pull down on the black re-
lease lever. While holding DOWN the release lever,
pull the Battery away from the Eclipse 5.
Battery Operating Times: The duration-of-use of
the Battery is displayed at the top of the Control
Panel. A variety of factors, such as flow setting,
Pulse or Continuous Flow Mode, and breath rate
will impact the operating time. The table Typical
New Power Cartridge Operating Times provides
operating time estimates for the Eclipse 5 using a
new, fully charged Battery based on flow settings
and operating conditions as indicated.

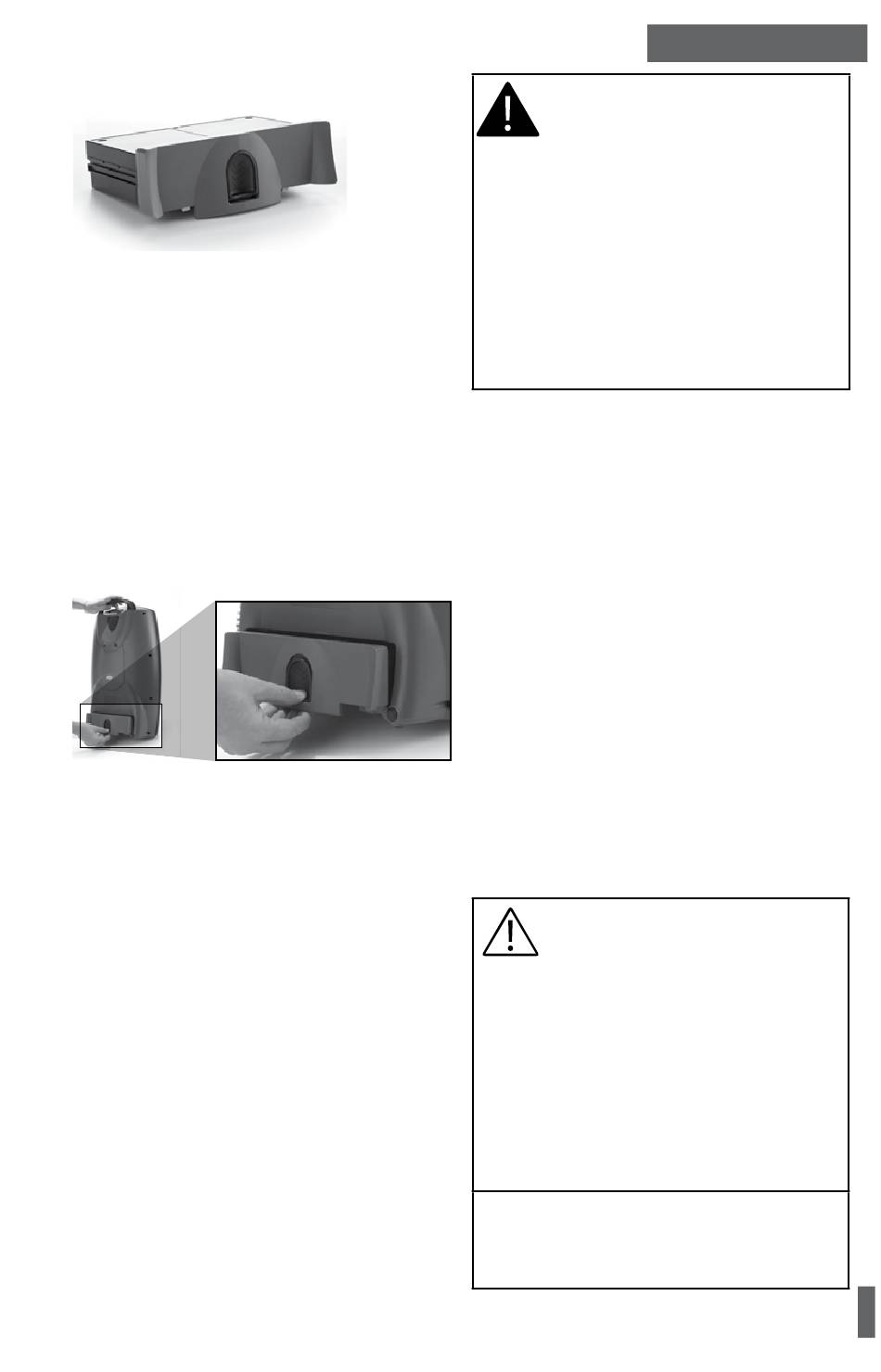

Rechargeable Power
Cartridge (Battery)
Item#7082-SEQ
Initial Battery Charging
The new Battery supplied with your Eclipse 5 is not
fully charged when it is shipped from the factory.
Before using your Eclipse 5 for the first time, you
must first fully charge the Battery.
With the AC Power Supply plugged in, and the
Battery correctly installed in the Power Compart-
ment of the device, allow the Battery to completely
charge. The Battery is fully charged when the Pow-
er Cartridge Status Gauge, on the Control Panel, is
no longer cascading.
The initial battery charge can occur with the
Eclipse either on or off and connected to AC or
DC power. The Eclipse can be used while either
discharging or recharging the Battery. It may take
between 2 and 5 hours, dependent upon the flow
setting, to achieve 80% capacity from a fully
discharged Battery. The battery will also recharge
when the Eclipse is plugged into AC or DC power
and turned off.
CAUTION: Only use the Manufacturer's provided
batteries. For proper battery disposal, contact
your Equipment Provider or your local govern-
ment agency for disposal requirements.
Eclipse 5
WARNING: FOR OXYGEN CONCEN-
TRATORS EQUIPPED WITH BATTERIES:
STORE IN A COOL AND DRY LOCATION
TO HELP ENSURE THE LONGEVITY OF
YOUR BATTERY. STORING YOUR OXY-
GEN CONCENTRATOR FOR EXTENDED
PERIODS OF TIME AT HIGH TEMPERA-
TURES OR WITH A FULLY CHARGED OR
COMPLETELY DISCHARGED BATTERY
CAN DEGRADE ITS OVERALL BATTERY
LIFE. DO NOT ATTEMPT TO OPEN THE
BATTERY; THERE ARE NO SERVICEABLE
PARTS INSIDE THE BATTERY. KEEP
BATTERIES AWAY FROM CHILDREN.
CAUTION: When the automobile in
which you are using the Oxygen Con-
centrator unit is turned off, discon-
nect and remove the device from the
automobile. Do not store the Oxygen
Concentrator in a very hot or cold
automobile or in other similar, high-or
low-temperature environments. DO
NOT leave the Oxygen Concentrator
or the Power Supply plugged into
the vehicle if the ignition is in the
OFF position. Doing so may drain the
vehicle's battery.
PN 21182453-C4 F | User Manual 15 - ENG
