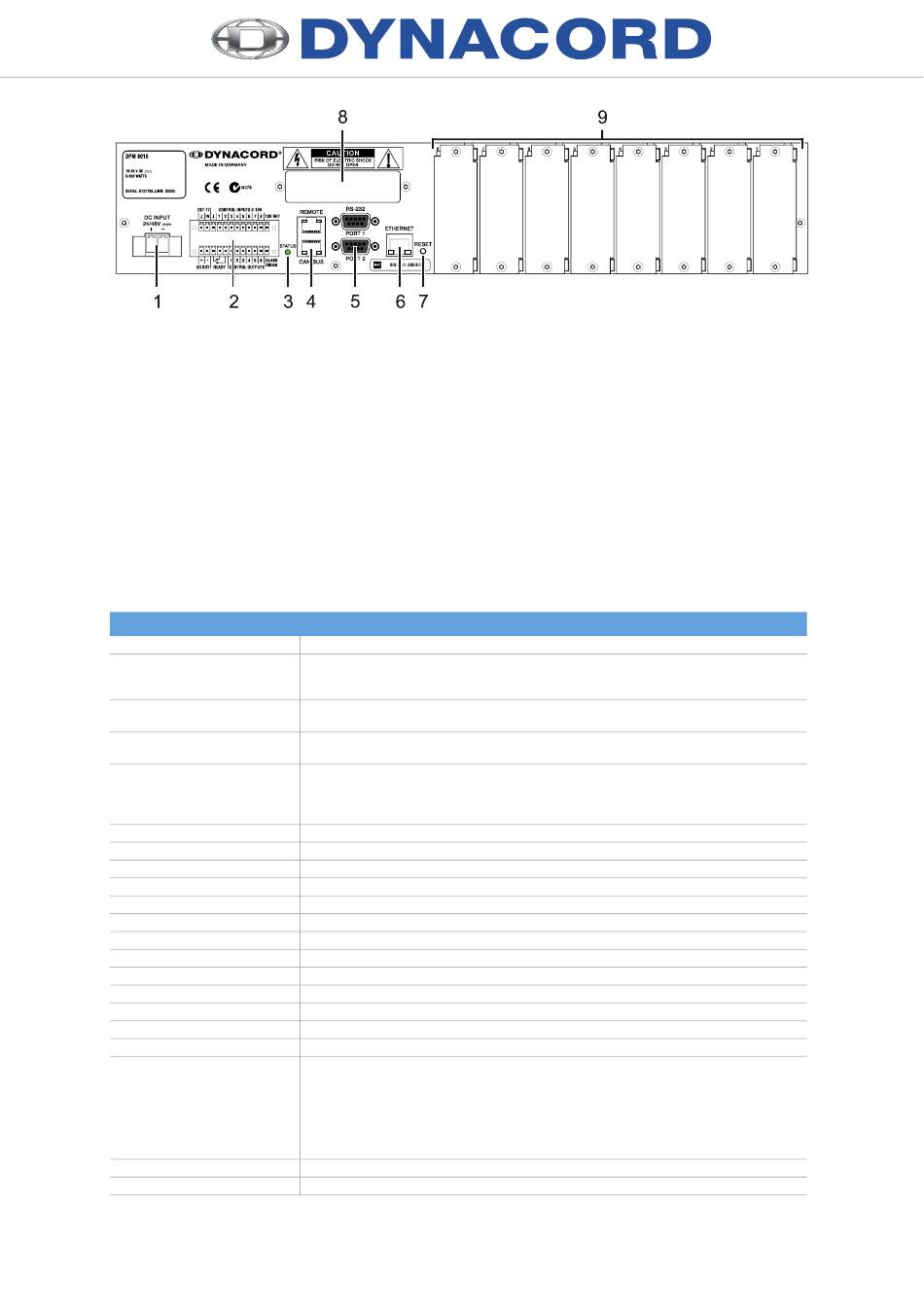

1
Stromversorgungs-Eingang
2
Control Port
3
STATUS LED
4
REMOTE CAN BUS Anschlüsse
5
RS-232 Schnittstellen
6
ETHERNET Schnittstelle
7
RESET Taster
8
Netzwerk-Modul-Slot
9
Erweiterungs-Slots
Technical Specifications
GENERAL DESCRIPTION AND FEATURES
DPM 8016 System Controller
Audio
Networking
Safety / Redundancy
PC Configuration and Control Software
Audio Input Specifications
Audio Output Specifications
Frequency Response
Signal to Noise Ratio
(A-weighted)
THD+N
Crosstalk
Sample Rate
Data Format
Signal Processing
Ethernet
CAN
RS-232
USB
Control Port
Power Supply
Power Consumption
Power Input
Control Port
STATUS LED indicator
REMOTE CAN BUS Interfaces
RS-232 Interfaces
ETHERNET Interface
RESET button
Network Module Slot
Extension Slots
Modular PROMATRIX 8000 system manager including signal processing, routing, system control and supervision
16 Audio Channels
8 Audio Slots, modular
2-Channel Input and Output cards
Module Slot for optional CobraNet Interface
16 I/O Audio
Internal Supervision, System Monitoring, Watchdog, Fault Output
Redundant Audio Network possible
IRIS-Net - Intelligent Remote & Integrated Supervision
Integration of DPM 8016, Amplifiers, Paging Stations and Peripheral Control
Configuration, Control and Supervision for complete Audio Systems
Programmable User Control Panels and Access Levels
See Technical Specifications of used Input Module
See Technical Specifications of used Output Module
20 Hz to 20 kHz (-0.5 dB)
DPM 8016 analogue In to analogue Out: 106 dB typical
< 0.01%
< 100 dB @ 1 kHz
48 kHz
24 Bit linear A/D and D/A conversion, 48 Bit processing
3 DSPs (480 MIPS) internal, DSP Extension Module optional
10 / 100 MB, RJ-45 (PC Control)
10 to 500 kBit/s, 2 x RJ-45 (Remote Amp Control)
2 Ports, 9pin DSUB female (Remote Control)
USB Type B on Front Panel (PC Control)
2 x 12-pole Euro block
1 Slave Clock Output (max. 1 A)
1 Time Sync Input (DCF-77 Standard, for receiver NRS 90193)
8 Control Inputs (analogue 0-10 V / logic control)
6 Control Outputs (Open Collector)
1 Ready / Fault Output (NO / NC Relay contacts)
3 Reference Outputs (+10V, 100 mA / +24V, 200 mA / GND)
+24 V DC (wide range tolerance: 18 V to 58 V DC)
6 to 550 W (depending on installed modules and periphery)
5
Branchement au secteur
Port de controle
STATUS LED
Connexion REMOTE CAN BUS
Interface RS-232
Interface ETHERNET
Bouton RESET
Slot de Module Réseau
Slots réservés
