Inhalt
1 x Technische Informationen AO-1
1 x DPM AO-1 Modul
2 x Schrauben Kombi-Torx
Slot Connector
+24V
+18V
ANALOG
SUPPLY
-18V
+5V
DIGITAL
SUPPLY
MCLK
BCLK
WCLK
SERIAL
SERIAL
AUDIO
DATA
DATA
SELECT
SPI
CONTROL
REGISTER
RES
BOARD
ID

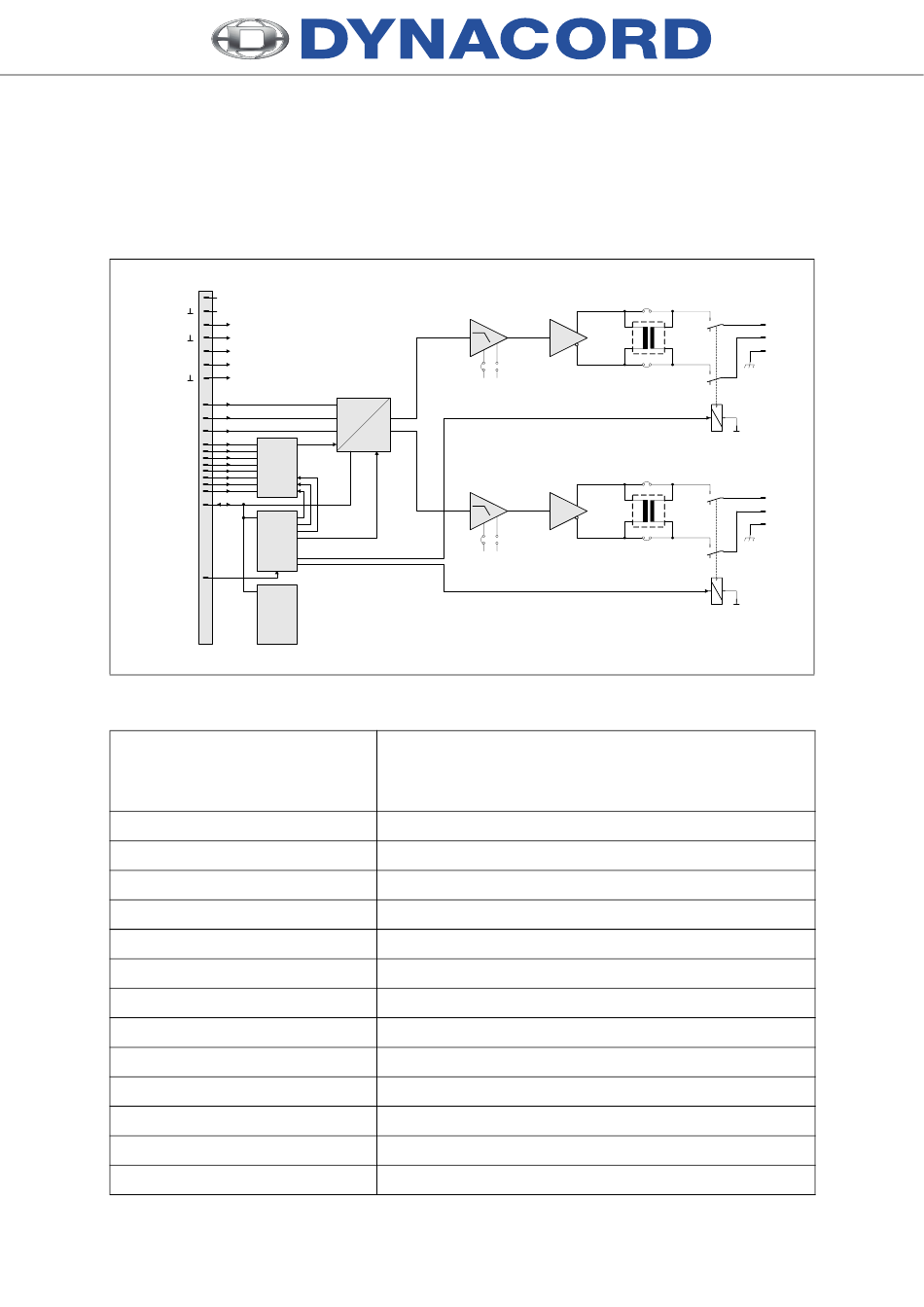

DPM AO-1 Block Diagram
Technical Specifications
Supply Voltage / Current
Audio Outputs
Output Level (nominal)
Output Level (max. before clip)
Output Impedance
Min. Load Impedance
D/A Conversion
Frequency Response
Signal to Noise Ratio (A-weighted)
THD+N
Output Balance
Crosstalk
Sample Rate
Data Format
Contents
1 x Engineering Data Sheet AO-1
1 x DPM AO-1 Module
2 x Screws Combination Torx
M3x10
+6 dBu
D
A
+6 dBu
+3.3 V DC, +/- 0.3 V / 6 mA
+5 V DC, +/- 0.3 V / 55 mA
+18 V DC, +/- 0.5 V / 63 mA
-18 V DC, +/- 0.5 V / 30 mA
2 x 3-pole Euro block connectors, electronically symmetric
+6 dBu / 1.55 V (jumper closed)
+18 dBu / 6.15 V (jumper open)
100 Ω
600 Ω
24 Bit, Sigma-Delta, 128 times oversampling
20 Hz to 20 kHz (-0.5 dB)
109 dB typical
< 0.003 %
> 40 dB
< -110 dB
48 kHz
24 Bit linear D/A conversion, 48 Bit processing
12
Contenu
1 x Informations techniques AO-1
1 x Module DPM AO-1
2 x Vis Combination Torx
M3x10
+18 dBu
Internal Gain
Setting
+18 dBu
Internal Gain
Setting
M3x10
Optional
OUT A
Transformer
Optional
OUT B
Transformer
