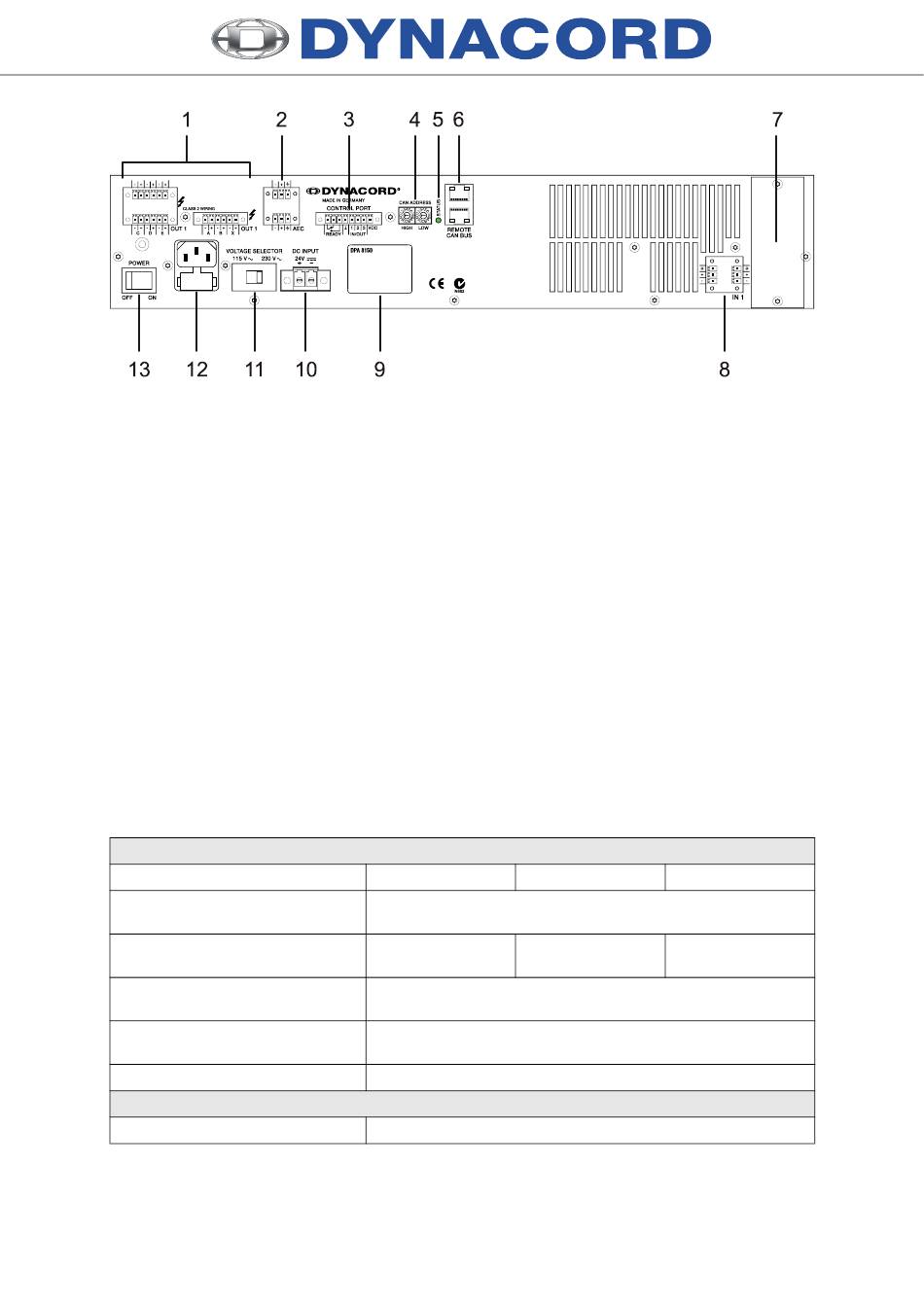

Endstufenausgangsklemmen (OUT 1)
2
Gemeinsamer Audioeingang (AEC)
3
CONTROL PORT mit READY-Kontakt
4
CAN ADDRESS-Wahlschalter
5
Anzeige CAN-Bus (STATUS)
6
REMOTE CAN BUS Anschlüsse
7
Erweiterungs-Slot
8
Audioeingang (IN 1)
9
Typenschild
10
Eingang für Notstrombetrieb (DC INPUT)
11
Spannungswahlschalter für Wechselstrom-Betrieb
(VOLTAGE SELECTOR)
12
Netzeingang für Wechselstrom
13
Netzschalter (POWER)
Technical Specifications
AUDIO SPECIFICATIONS
Load Impedance
Rated Output Power
1 kHz, THD < 0.5%
Rated RMS Voltage Swing
1 kHz, THD = 1%
THD+N at rated output power
MBW = 80 kHz, 1 kHz
Frequency Response, ref. 1 kHz,
rated load
Signal to Noise Ratio, A-weighted
INTERFACES
CAN
Power Amp Output (OUT 1)
Common Audio Input (AEC)
CONTROL PORT with READY contact
CAN ADDRESS selector switch
CAN STATUS LED
REMOTE CAN BUS Interfaces
Extension Slot
Audio Input (IN 1)
Type Plate
Input for emergency power supply (DC INPUT)
Voltage Selection switch for AC supply (VOLTAGE
SELECTOR)
Mains Input for AC
Mains Switch (POWER)
50 V / 5
70 V / 9.8
500 W
50 V
70 V
< 0.5%
50 Hz (-3 dB) to 20 kHz (-6 dB)
> 104 dB
10 to 500 kBit/s, 2 x RJ-45
17
100 V / 20
100 V
