7.1.2 Connection of the camera and
motorised lens

7.1.2.1 Motorised lens PTZ board

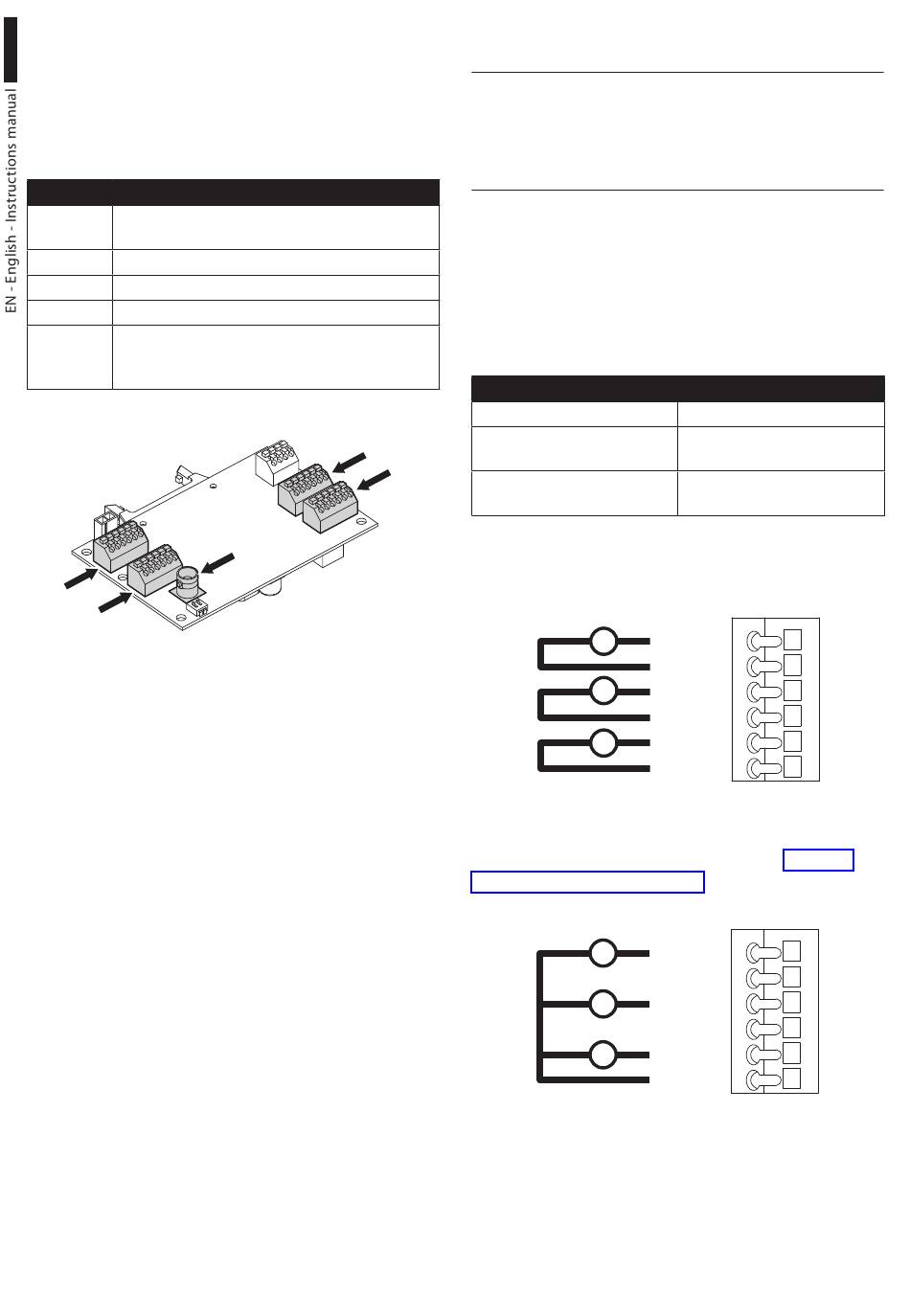

The following is a description of the electronics board
inside the housing, which controls all functions of the
motorised lens.
CODE DESCRIPTION
CN1 BNC connector for connecting the video signal
from the camera
CN2 Motorised lens motor control connector
CN3 Motorised lens potentiometer connector
CN6 Serial connector for controlling the camera
CN7 Camera power supply, clean contact for
activating the camera night mode, additional
lines
Tab. 01
CN3
CN2
Fig. 12
14
CN6
CN7
CN1
7.1.2.2 Connector for camera/motorised
lenses
h All connections illustrated below should
be made only and exclusively by expert
installers who should comply with all the
wiring and power supply specifications for
the devices.
The electronics board is designed to control cameras
with motorised lenses (Focus, Iris, Zoom), which
may or may not have potentiometers to control the
position reached.
Before making the connections make sure that the
voltages supplied by the board fall within the limits
allowed for the apparatus.

CONNECTOR FOR CAMERA/MOTORISED LENSES

Camera power supply
Lens potentiometer power
supply
Lens motor power supply
Tab. 02
In the case of lenses with reverse polarity motors,
connect as shown in the following drawing:
+
M
+
M
+
M
Fig. 13 CN2.
In the case of lenses with common wire motors,
enable the corresponding menu option ("9.6.3 ZFI
camera settings menu", page 28) and connect as
shown in the following drawing:
+
M
+
M
+
M
Fig. 14
CN2.
+12V - 800mA max
+5V - 15mA max
6-15V (adjustable) - 200mA
max (Focus+ Zoom+Iris)
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
