6.4 Preparatory work before
installation

6.4.1 Attaching the support

Use the wall UPTWBA or parapet UPTWBTA support.
Choose the most suitable one for your installation
and follow all the instructions given in this section.
h The device should be assembled vertically.
Any other position could impair the
performance of the appliance. Do not
attach the device upside down.
h Take special care when attaching and
fastening down the apparatus. If it is to be
attached to a concrete surface you must
use dowel pins with a traction torque rating
of at least 300dN each; for a metal surface
use screws with a diameter of at least 8 mm
and of an appropriate length. However, the
clamping system must be able to support
at least 4 times the weight of the entire
equipment, including P&T, lenses and
camera.

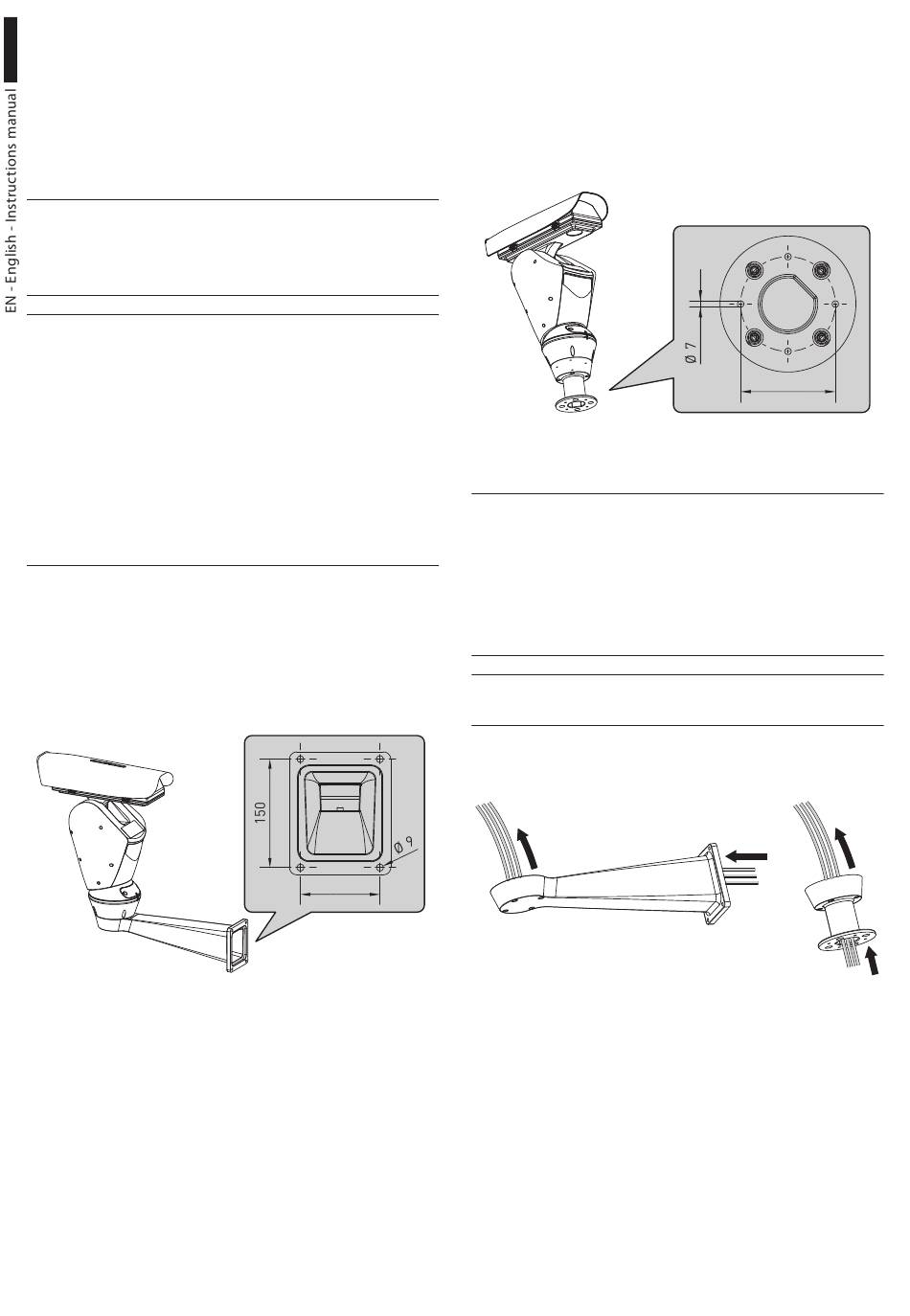

6.4.1.1 Attachment with bracket (optional)

The bracket is drilled to make it easy the connection
cables through it. The base can be attached to the
wall bracket in 4 distinct positions, turning through
90° to each other, in order to facilitate positioning of
the configuration board.
Fig. 06
12
6.4.1.2 Attachment with a pole support
(optional)
The pole support allows the passage of the
connection cables. The base can be attached to the
pole in 4 distinct positions, turning through 90° to
each other, in order to facilitate positioning of the
configuration board.
Fig. 07

6.4.2 Cables management

h
h
Insert the cables into the support so that they
protrude by about 50cm.
110
Fig. 08
The connection cables should not be
accessible from the outside; what is more,
since the cable could be pulled out it
is necessary to fasten it securely to the
pole in order to prevent excessive weight
pulling it out by accident and rendering the
apparatus unsafe.
You must use cables suited to the type of
installation.
50cm
Ø 101.6
50cm
