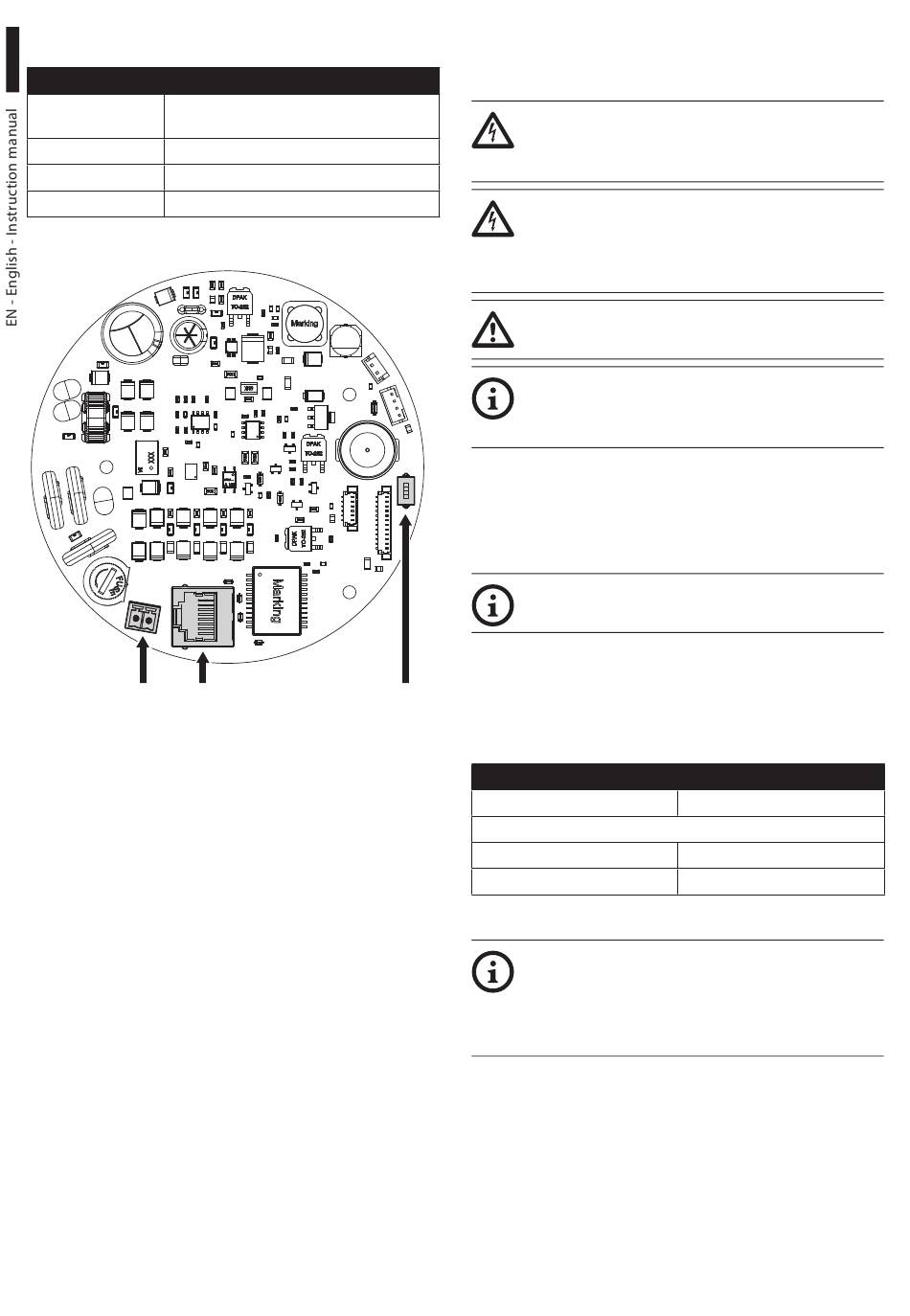

4.2 Housing board description

BOARD DESCRIPTION
Connector/ Function
Terminal
J1 Power supply line (24Vac/24Vdc)
J8 Ethernet, PoE+ power supply
SW1 Reset dip-switch
Tab. 1
J1 J8
Fig. 1
6
4.3 Connection of the power
supply line
Electrical connections must be performed
with the power supply disconnected and
the circuit-breaker open.
When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Check that the power supply is adequately
dimensioned.
The product can be powered in
24Vac/24Vdc or via PoE+ (Power Over
Ethernet).
4.3.1 Connection of the power supply
line (version of the product not cabled)

4.3.1.1 Connection of the power supply line

(24Vac/24Vdc)
Earthing is not planned since the product
does not require it.
The power supply cables should be connected to the
power supply terminal of the housing board (J1, 4.2
Housing board description, page 6).
SW1
Perform the connections following the instructions
reported in the table .
CONNECTION OF THE POWER SUPPLY LINE
Colour
Power supply 24Vac/24Vdc
Defined by the installer
Defined by the installer
Tab. 2
The power supply terminal can host cables
with the characteristics outlined below.
Nominal section: From 0.2mm² (24AWG) up
to 1mm² (17AWG).
Terminals
~/+
~/-
