6 Installation

The product may be interfaced with
devices not manufactured by VIDEOTEC.
VIDEOTEC recommends a test prior to
installation. VIDEOTEC will not be liable for
any installation costs or lost revenues in the
event a compatibility problem will occur.

6.1 Housing opening

Loosen the 2 screws on the side, turn the cover and
the upper half of the body about the opening hinge
axis.
After installation and wiring, close the
product.

6.2 Slide removal

To remove the slide it is necessary to partially
unscrew the fixing screws as shown in figure.
Move the slide, by sliding it until the holes coincide
with the slide locking screws.

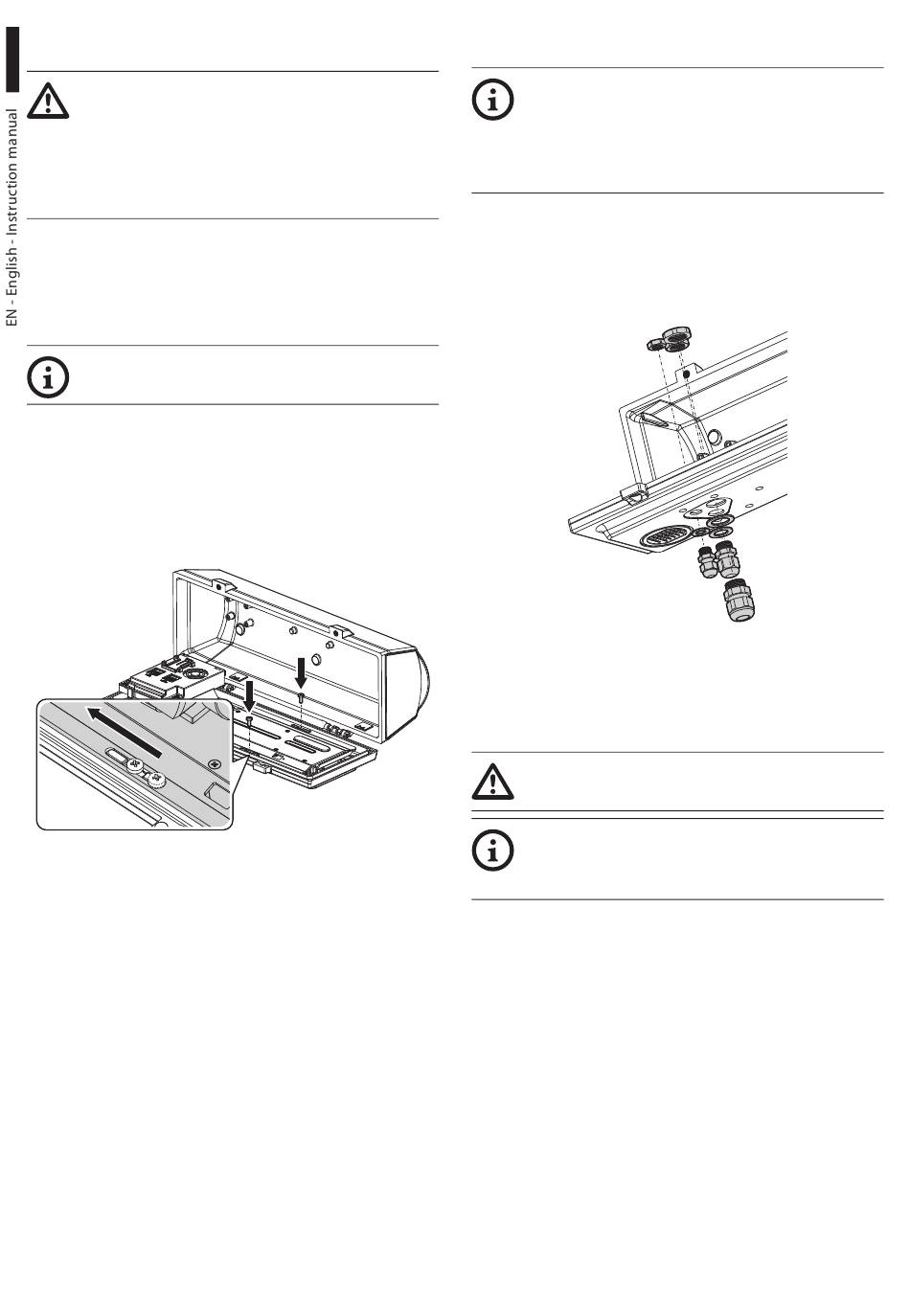

Fig. 1
6

6.3 Installation of cable glands

For the internal cable routing brackets
it is necessary to use the sealing ring kit
(OWBIP). The reduced space does not allow
the use of the supplied cable glands. The kit
must be bought separately.
Inside the supply are 3 cable glands that must be
installed at the bottom of the housing as shown
in figure. The cable glands that are not used must
be sealed with the cap to avoid water entering the
housing.
Fig. 2
6.4 Installation of the GEKO IRH
illuminator (optional)
Maximum power of the illuminator must
not exceed 6W.
To install the illuminator it is necessary to
use the illuminator bracket (OSUPPIR). The
kit must be bought separately.
Use the cable glands or the smallest sealing ring to
avoid water entering the housing.
To install the illuminator under a housing, refer to the
installation manual.
For further details on configuration and use refer to
the relative chapter (6.4.4 Connection of the GEKO
IRH illuminator (optional), page 8).
MNVCHOVHPOE_2222_EN
