6.2 How to install the camera

Open the housing as described in the relative chapter
(6.1 How to open the housing, page 5).

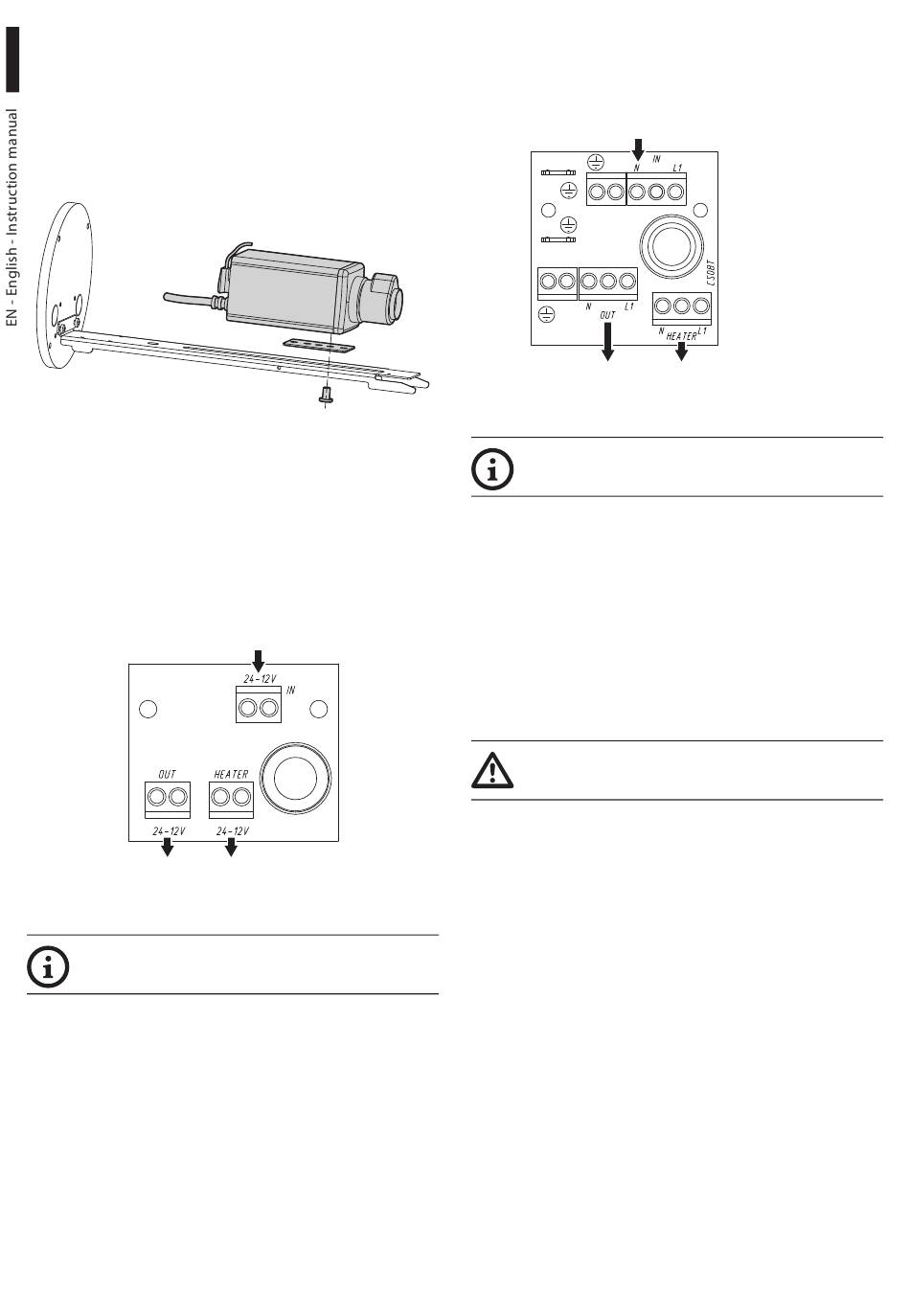

Fit the camera on the slide, using the insulating plate
and the supplied 1/4" screw. If necessary, use the
spacers to position the camera and optics correctly.
Fig. 3
Insert the cables through the cable glands and
electrically connect.
Ensure the cable glands are firmly fastened.

6.2.1 12Vdc/24Vac version

When the power supply voltage is 24Vac the circuit
will be connected by the terminals shown.
IN 12Vdc/24Vac
OUT 12Vdc/24Vac
Fig. 4
Nominal section of the cables used: from
0.2mm² up to 2.5mm².
6
Heater OUT 12Vdc/24Vac

6.2.2 120/230Vac version

When the power supply voltage is 120/230Vac the
circuit will be connected by the terminals shown.
IN 120/230Vac
OUT 120/230Vac
Fig. 5
Nominal section of the cables used: from
0.2mm² up to 2.5mm².

6.3 Closing the housing

Before closing the housing reinsert the bottom
orientating the slide according to the installation
required, on the wall bracket or on the Pan & tilt
head, for the right camera fitting (6.4 Installing the
housing, page 7).
Close the housing taking care not to damage the
sealing ring. Make sure that the sealing ring is
correctly fitted in its position.
Pay attention to the fixing. Tightening
torque: 2.1Nm.
Heater OUT 120/230Vac
