6.4 Installing the housing

Before closing the housing, be sure to have rightly
fitted the internal slide according to the type of
installation.

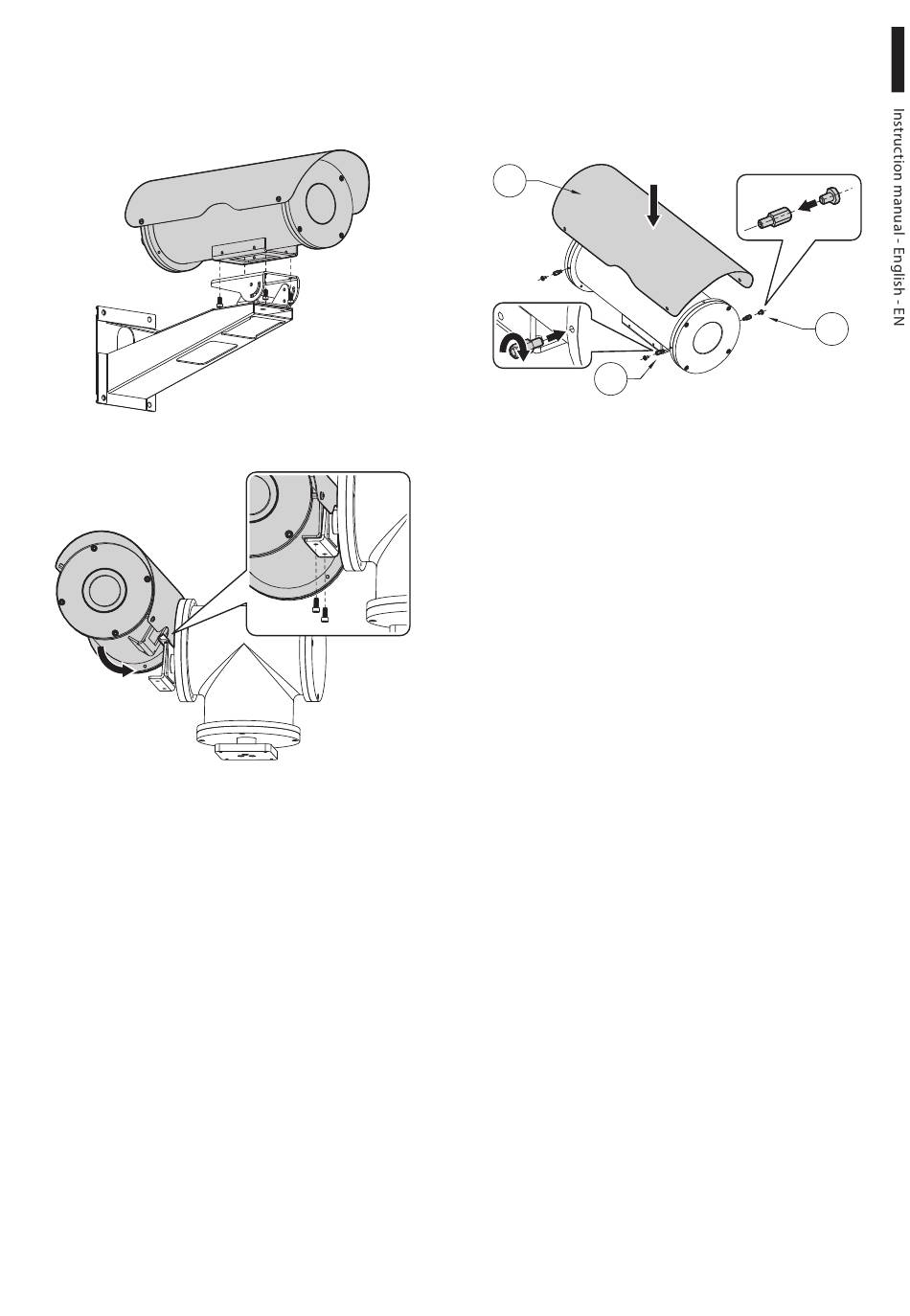

Fig. 6 Bracket mounting.
Fig. 7
P&T installation.
MNVCNXM_1718_EN

6.4.1 Sunshield mounting (optional)

Screw the equipped exagonal spacers on the flanges
of the housing (01). Position the sunshield on the
housing (02) and fix it on the spacers with the
equipped screws (03).
02
01
Fig. 8
03
