3.3.7 – Electrical connections to the control unit
1 Unscrew screw [A] and push button [B], to open the lid.
2 Thread the cables through the slit [C].

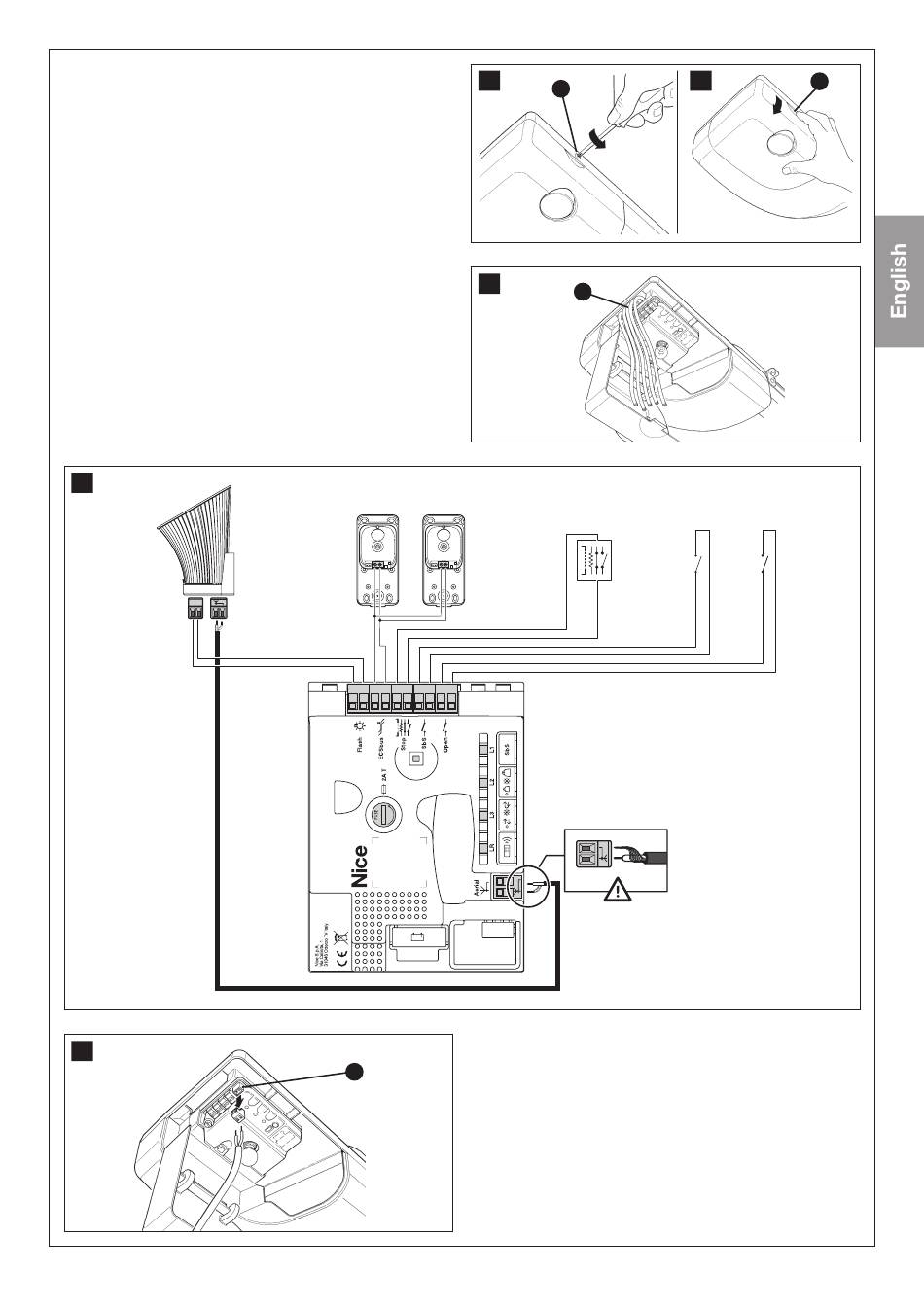

3 Refer to figure 65 for the electrical extra low voltage connection of the
various devices to the control unit terminals.
• The terminals have the same colour coding as the corresponding devic-
es; for example, the terminal (SbS) of the control unit must be connected
to the terminal (SbS) of the accessory.
• For most connections you do not need to observe any polarity; only for
the shielded cable of t he aerial incorporated in the FL200 flashing light
(optional accessory) it is necessary to connect the central core and the
shield as shown in figure 65.
• If you are using the flasher's aerial, remove the piece of wire (connected
to the terminal at the factory) and connect the RG58-type shielded braid-
ing.
• The terminals [D] can be removed in order to facilitate the operations as
shown in figure 66; make the connections and then reinsert them.
4 When the connections have been completed, secure the cables using
suitable clamps.
5 To close the cover, turn and push until a click is heard. Secure the screw [A].
