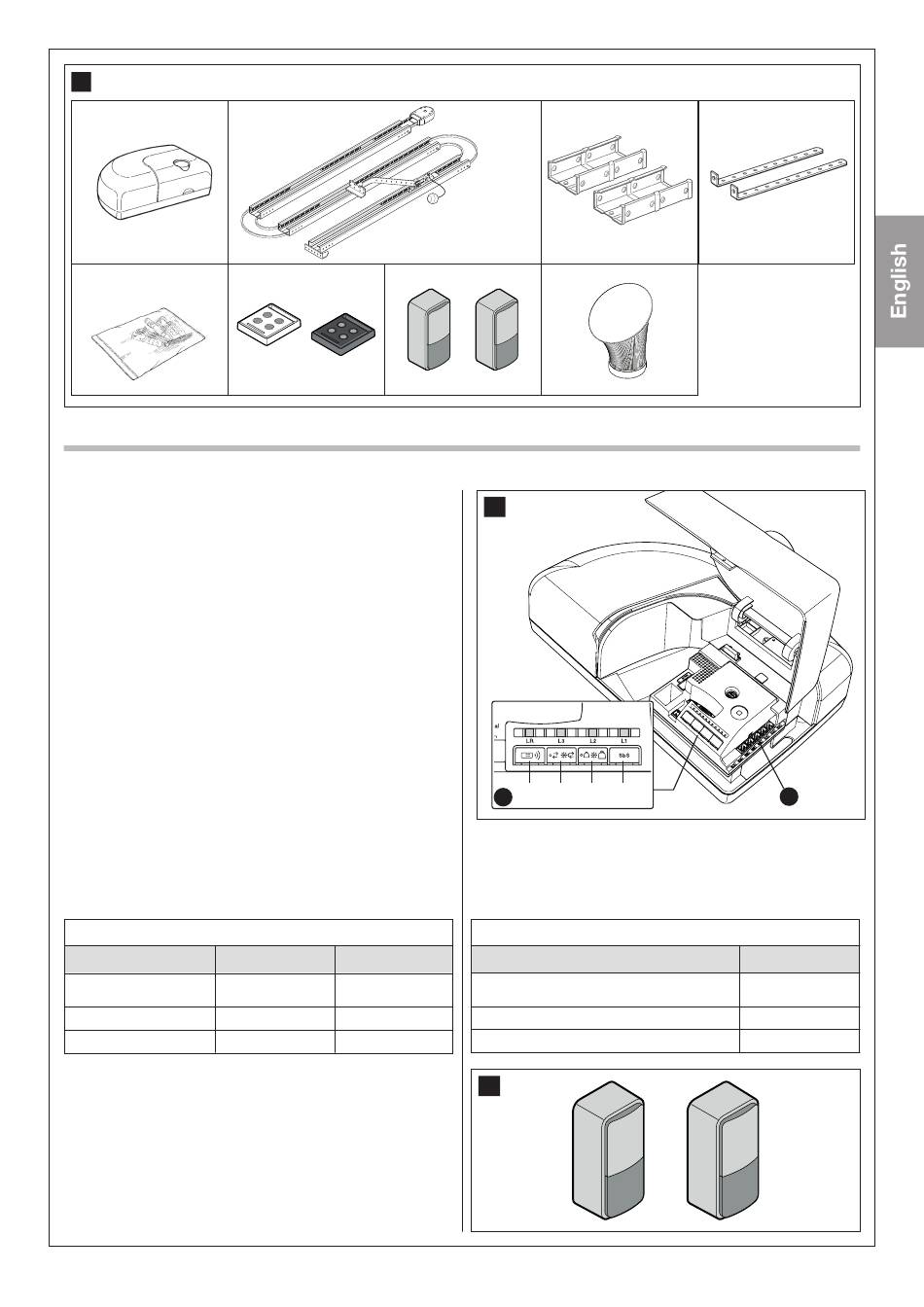

2.3.1 – AVIO600 and AVIO1000 Electromechanical Gearmotor
AVIO600 and AVIO1000 are electromechanical gearmotors made up of
a 24Vdc motor. They feature a mechanical release mechanism with cord
that allows you to move the door manually in the event of a power failure.
The gearmotor is fixed to the ceiling with the relative mounting brackets.
The PR100 buffer battery can be used which allows some manoeuvres in
the absence of the mains power supply.
The control unit actuates the gearmotor and provides for the control of the
supply of the different components; it features an electronic board with
incorporated radio receiver.
Fig. 3:
The four P1, P2, P3 and PR buttons [B] and the corresponding LEDs are
used to program the control unit.
To facilitate the electrical connections, there are separated removable ter-
minals for each device [A]. Near each input terminal there is a LED that
signals its status.
The connection to the power supply is very easy: just insert the plug in a
power outlet.
TABLE 3
List of small parts
M6 self-tapping nuts
M6 x14 screws
6,3x38 tcei screws
g
AVIO600 AVIO1000
Pcs 2 Pcs 4
Pcs 2 Pcs 4
Pcs 4 Pcs 4
c
h
3
PR P3 P2 P1
B
2.3.2 – PH200 photocells (optional)
The pair of PH200 wall-mounted photocells, once they are connected to
the control unit, enables the detection of obstacles found on the optical
axis between the transmitter (TX) and the receiver (RX).
TABLE 4
List of small parts for PH200
HI LO 4X9,5 screw
3,5X25 self-tapping screw
s 5 c nylon screw anchor
4
d
A
Q.ty
Pcs 4
Pcs 4
Pcs 4
