5.8.4 Connecting the Ex Status Module to the DIN-rail supply/external supply

Warning:
- For personal safety and proper operation the yellow / green or grey wire and blue wire
must be connected together to the earth.
white
brown
yellow/green or grey
black
blue
Ex Status Module
(view cable side)
Female connector M12

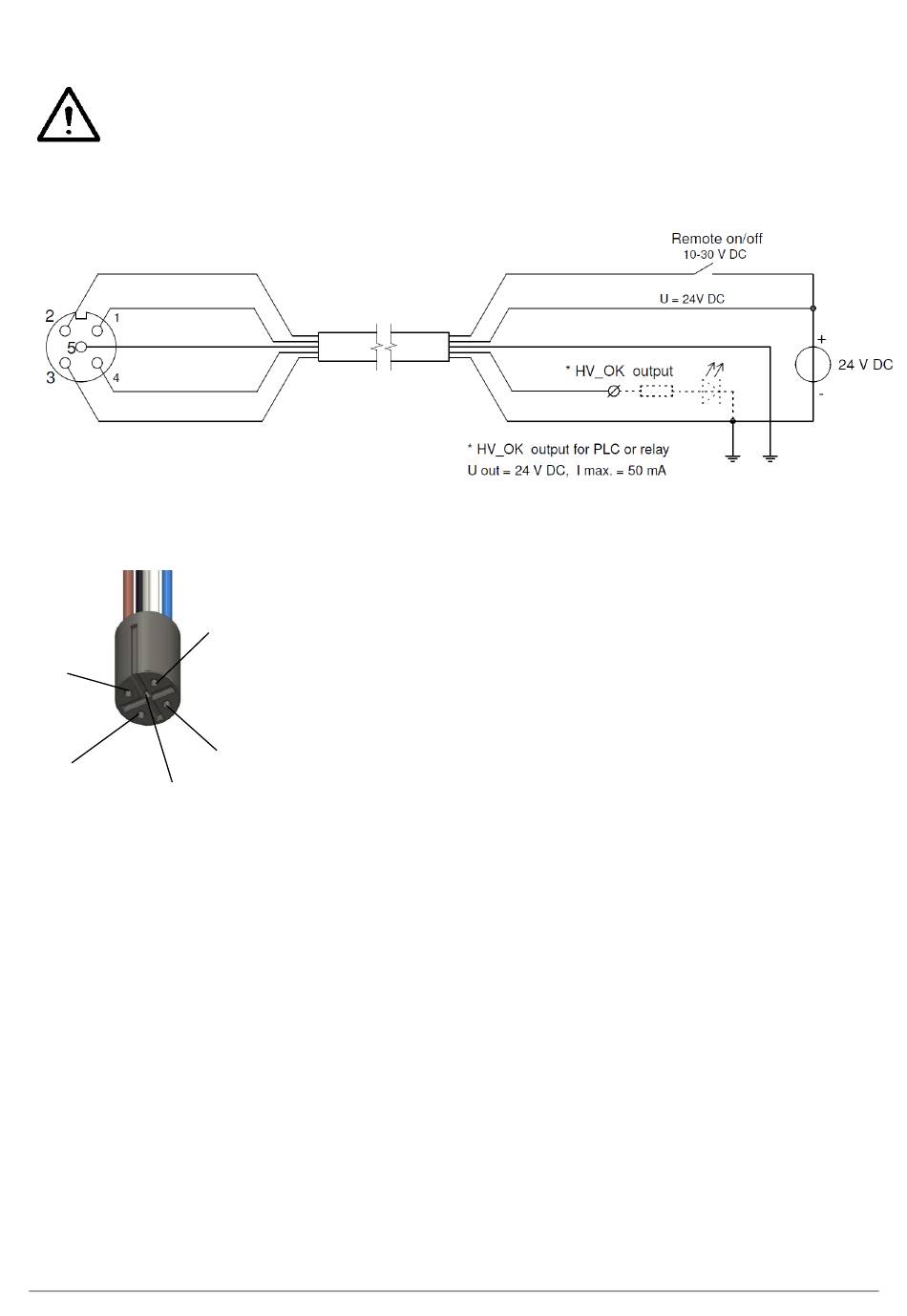

Image 5.8.4.1: Connection Status Module and DIN-rail supply
1
brown
4 black
5
yellow/green
or grey
Image 5.8.4.2: Wiring Ex Status Module external power supply
PerformaxEasyExPerformaxEasyExSpeed_UM_9752153010_NL_D_ GB_F_V2_3
2
white
3 blue
white
brown
yellow/green or grey
black
blue (GND)
66
