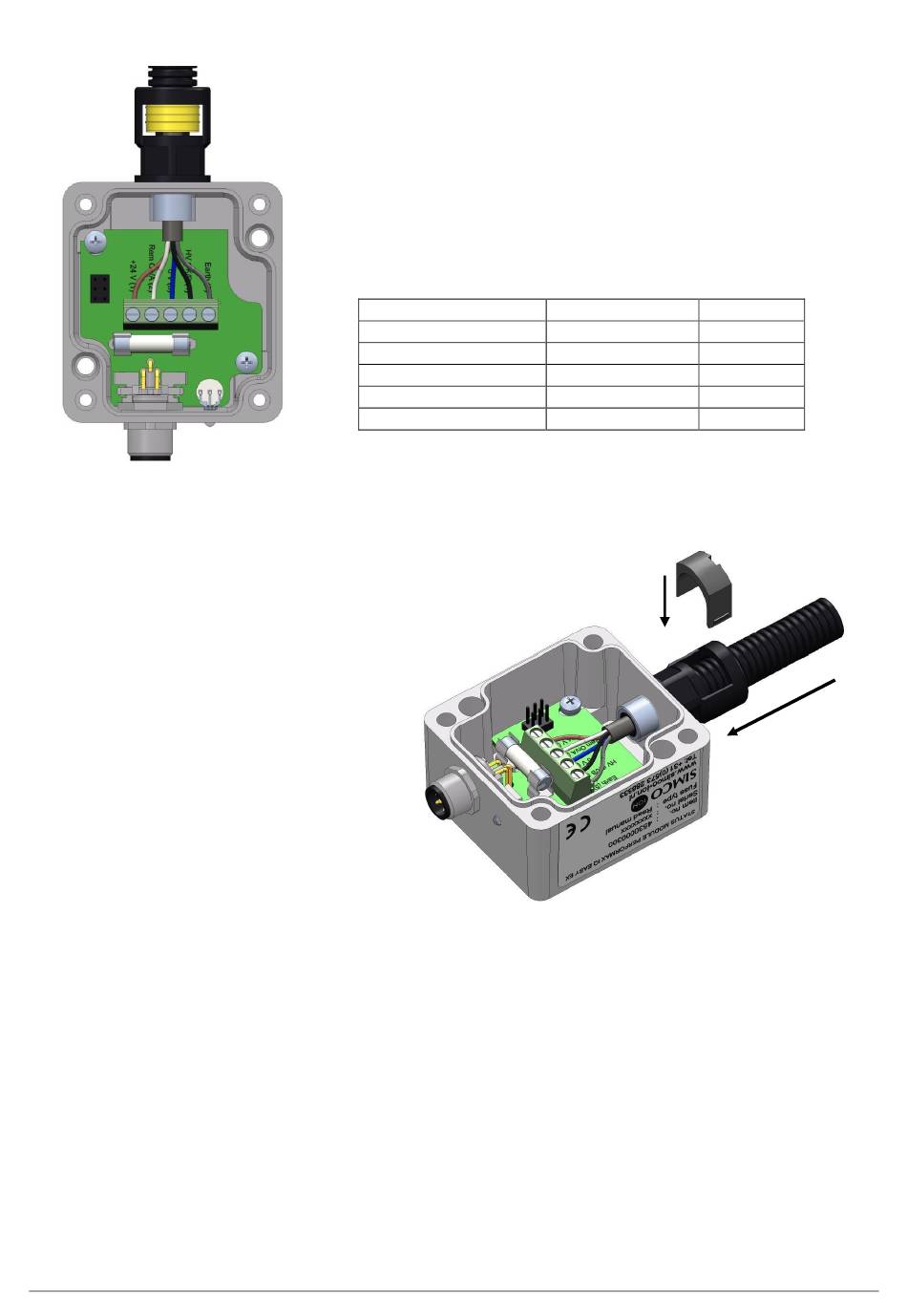

Image 5.8.2.4: connection wiring Performax Easy EX Speed with the Status Module
Push the cable into the Status Module
until the yellow seal is no longer visible
(1).
Then insert the grey clip in the module
with the slot facing the outside (2), so it
can be removed with a screw driver if
required.
Then replace the cover and fasten with
the screws.
PerformaxEasyExPerformaxEasyExSpeed_UM_9752153010_NL_D_ GB_F_V2_3
Connect the cable according to the table below:
Colour:
Brown
White
Blue
Black
Yellow/green or grey
Image 5.8.2.5: Fixing a protective hose to the fitting
Connection: Number:
+ 24 V 1
Rem On 2
0 V 3
HV-OK 4
Earth 5
