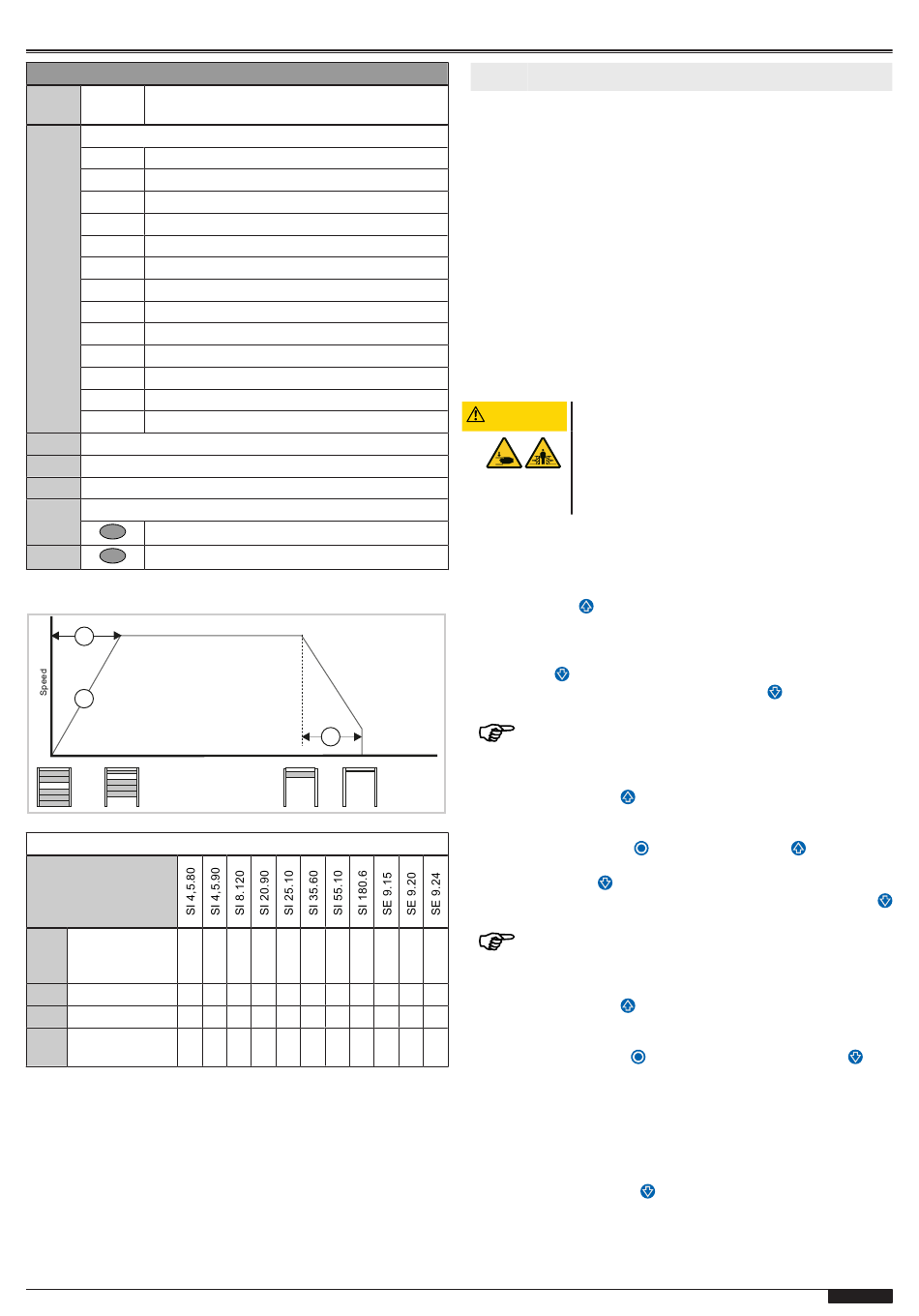

Menu 9 Service menu
menu Entry Selection
item
92 Limitation door cycles
0 Off (default setting)
1 1000 cycles
2 4000 cycles
3 8000 cycles
4 12000 cycles
5 16000 cycles
6 20000 cycles
7 25000 cycles
8 30000 cycles
9 35000 cycles
10 40000 cycles
11 45000 cycles
12 50000 cycles
96 Operating hours counter output – hours
97 Error memory output hours – error code
98 Software version output creation date – serial number
99 Reset to default setting
Press for 5 s
- - Exit menu
Diagram for door run and recommended settings
70
72
Menu 7 Recommended settings
Menu item
70 Soft start 5
acceleration
time
71 Soft stop 10 20 25 20 0
72 Reduced torque 16 15 0
73 Selection of 0
drive
71
Time
5 0 8 0 7 0 0 0
20 0 0 0
10 0 10 0 0 0
0 0 0 1 0 1 1 1
7 Operation
Safety instructions for operation
Observe the following safety information for operation:
• The operator must be instructed on how to handle the
control or the controlled door system and be familiar with the
applicable safety regulations.
• Comply with the accident prevention regulations and
general safety regulations relevant to the field of application.
• Check the control and the door system connected for visual
defects before use.
• If you detect any safety-relevant deficiencies, decommission
the door system and report all defects to the responsible line
manager.
• Have the deficiencies remedied immediately.
• If the operational behaviour of the door system changes,
switch the system off immediately. Recommissioning must
be prevented. Notify the operating company of the change.
CAUTION
Functional description for the door operation
The control allows for the selection of different operating modes:
Dead man OPEN / dead man CLOSE
By pressing the
door operation starts in the OPEN direction until the OPEN door
end position has been reached or the door operation is stopped
by letting go of the button. The door is closed by continuously
pressing the button (dead man function) until the door end po-
sition has been reached. If you let go of the
door is closing, the door will stop immediately.
Access by non-instructed persons only with key switch
and in dead-man mode.
Pulse OPEN / dead man CLOSE
By briefly pressing the
the door starts moving in the OPEN direction until the door end
position OPEN has been reached or the door operation is
stopped by pressing the
continues the opening operation. The door is closed by continu-
ously pressing the
end position CLOSE has been reached. If you let go of the
button while the door is closing, the door will stop immediately.
0 0
Access by non-instructed persons only with key switch
and in dead-man mode.
Pulse OPEN / pulse CLOSE
0 0
By briefly pressing the
0 0
the door starts moving in the OPEN direction until the door end
0 0
position OPEN has been reached or the door operation is
stopped by pressing the
ton, the door starts moving in the CLOSE direction until the door
end position CLOSE is reached.
This operating mode requires the installation of a closing edge
safety device (menu item 35). When the closing edge safety
device is activated while the door is closing, the door will stop and
a direction reversal will take place. Activation of the safety device
has no effect when the door is opening. If there is a defect, the
door can be closed by the button.
T100 R
Crush hazard and risk of being struck by the
closing door!
Persons can be struck when the door is closed
or collide with the door.
• The door must be visible from the place of
operation.
button continuously (dead man function), the
button or by external pulse generators,
button. Pressing the
button (dead man function) until the door
button or by external pulse generators,
button. By briefly pressing the
button while the
button again
but-
EN - 29
