3 Product description

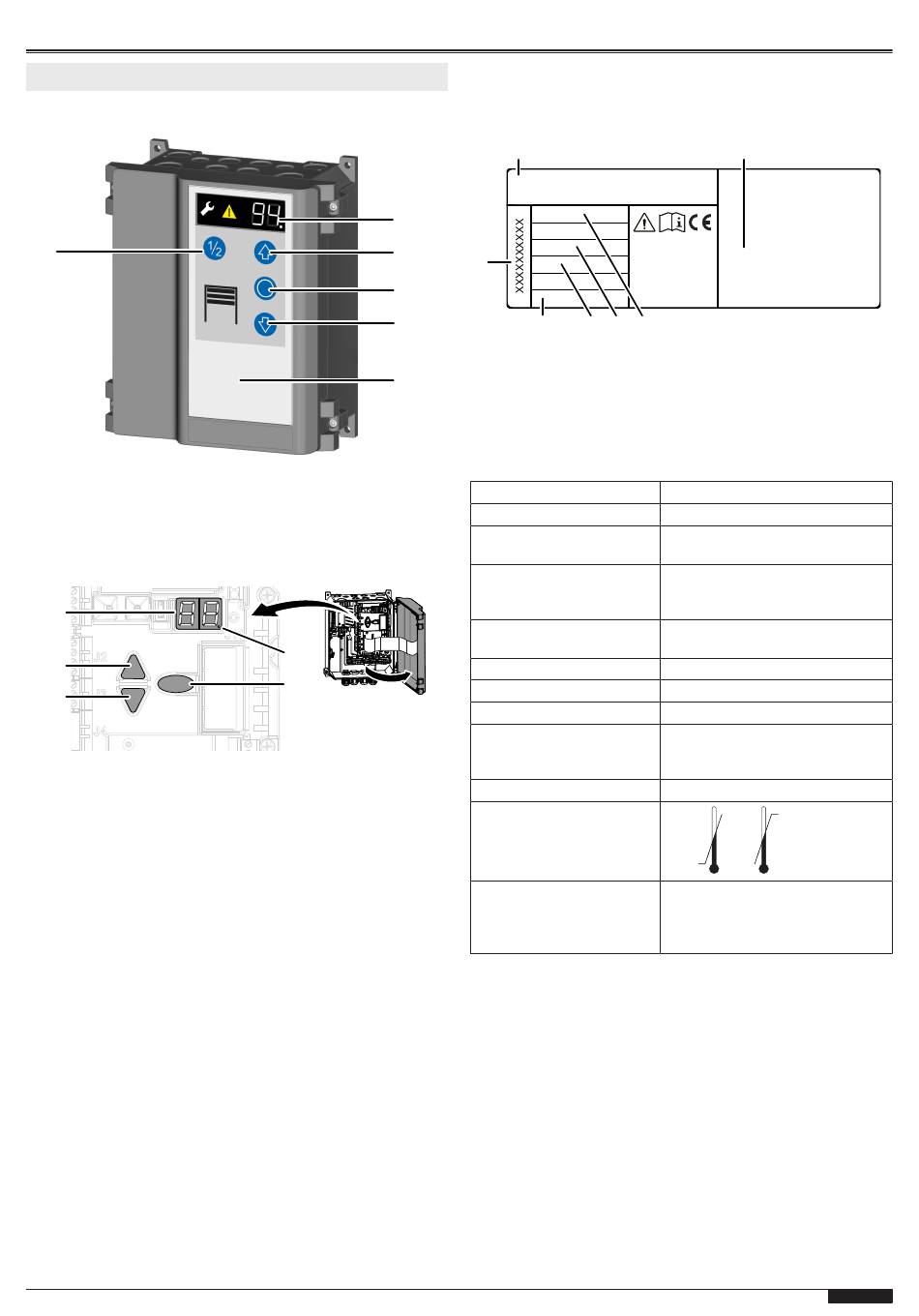

Control elements
6
1 LED display
2 Door OPEN button
3 STOP button
Programming control elements
1
3
4
1 LED display
2 LED spot (confirmation of
the programming entry)
4 Door CLOSE button
5 Housing cover
6 1/2 open button
2
5
3 Up navigation button
4 Down navigation button
5 Programming button (Prog
button)
Rating plate
The rating plate is located at the side on the control housing. Ob-
serve the power supply specifications.
1
1
2
7
3
4
6
1 Control type
5
2 Manufacturer and address
3 Supply voltage
4 Amperage
Technical data
Control unit
Rating plate no.
Height x width x depth
Cable feed-throughs
Supply voltage
Control voltage
External power supply
Max. motor power
Safety according to
EN 13849-1:
Protection type
Operating temperature
Manufacturer
T100 R
2
Made in Germany
5 4 3
5 Max. motor power
6 Protection type
7 Rating plate no.
T100 R
15331560850
250 mm x 215 mm x 120 mm
Assembled vertically
6 x M20
2 x M16
2 x M20 V cutout
3N~ 400 V
3~ 230 V
24 V DC
max. 700 mA
Max. 3.0 kW
Input STOP A: Cat 2 / PL = C
Input STOP B: Cat. 2 / PL = C
Input STOP C: Cat. 2 / PL = C
IP 54 / CEE plug = IP44
-20 °C
Novoferm tormatic GmbH
Eisenhüttenweg 6
D-44145 Dortmund
www.tormatic.de
+50 °C
