Do not use any materials other than those supplied.
The supplied materials are incombustible and have been
manufactured specifically for this appliance.

Remote control

Remote control is supplied as a standard accessory.The
heater has a freely adjustable. Batteries, with a life expectancy
of approximately one year, feed the electrical supply.The
remote control will only work if the pilot light is lit.

Connecting the Receiver

The remote control system comprises a receiver and a
remote control, packed together in one box.The receiver
must be connected to the appliance fitting the batteries.
This is done as
follows:
• Take the receiver
out of the box.
• Slide the brown plug
of the cable onto
B
the receiver circuit
board
(fig. 10).
• Connect the white
plug to the
C
connector on the
gas control valve.
The different sized
plugs correspond
with the connector.
• Open the lid.
• Insert 4 penlight batteries (type AA). Make sure they are
the right way round.
• Replace the lid.

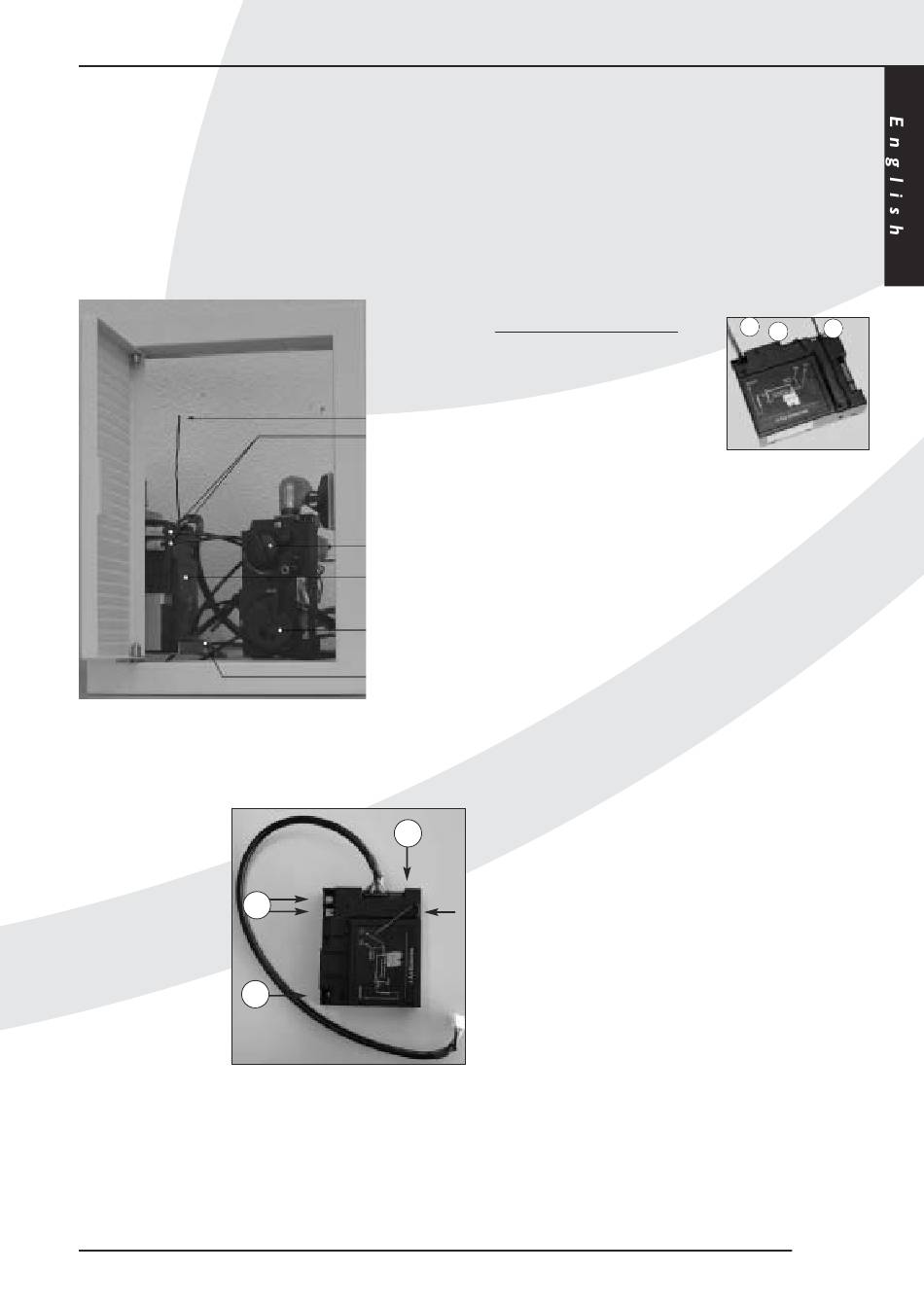

• Connect the thermocouple wiring (fig. 23, arrows B)
• Connect the ignition wiring (fig. 23, arrow C)
• Place the remote control receiver in the tray on the
service flap.
• If you are using an adaptor, connect it to the unit

Warning:

Make sure the aerial is not too close to the ignition wire or the
high-voltage transformer (under the cover).This could damage
the receiver (see fig. 24)
correct position of the aerial
1. ignition wire
2. high-voltage transformer
3. aerial
aerial
thermocouple
wiring
The ignition wire must not be laid along metal elements as
this will weaken the spark.
Make sure the receiver is covered during any building or
finishing work, so that no dust gets in or on it.
button B
Make sure there can be no short circuit between the battery
unit and any metal components of the appliance.
high-voltage
This could damage the remote control (see fig. 2 in the
transformer
troubleshooting table)
button A
I.e. the ignition wire must not:
- lie across the receiver (the black box)
ignition wire
- touch or cross the aerial

Replacing the batteries in the receiver

• Open the door from the service flap.
• Take the receiver and open the lid.The batteries are under
that cover.
• Remove the old batteries and insert the new ones, making
sure that the + and – signs on the batteries correspond
A with those in the holder.
Inserting or replacing the batteries
in the remote control
reset
• Remove the cover on the back of the remote control.
• Connect a square battery (type 6LR61) to the clip.
• Fit the battery in the holder.
• Replace the cover.
• The temperature is shown on the display in Fahrenheit, press
NB: Do not throw old batteries in the dustbin.
fig. 23 They should be treated as Chemical Waste.
For the optimal functioning and longer useful life of its
appliance, Dru advises the use of Duracell batteries.
23
INSTRUCTIONS FOR INSTALLATION
(fig 23, arrow A) and plug the appliance in.
both buttons for a few seconds and it will change to Celsius.
1.
3.
2.
fig. 24
