6.4
Electrical connection
Attention: always respect the safety regulations!
Carry out a lightning risk assessment. We recommend installing a type 3/class III surge protective device (SPD) in
accordance with EN/IEC 61643-11 to ensure disconnection in the event of lightning and surges.
Check that the mains voltage is the same as that on the motor data plate.
Carry out the wiring and verification of line protections while referring to the Safety Booklet enclosed with the product and
the design of the electrical system and/or equipment.
6.4.1 Power supply electrical connection
All the starting operations must be performed with the cover of the EVP OEM control panel closed!

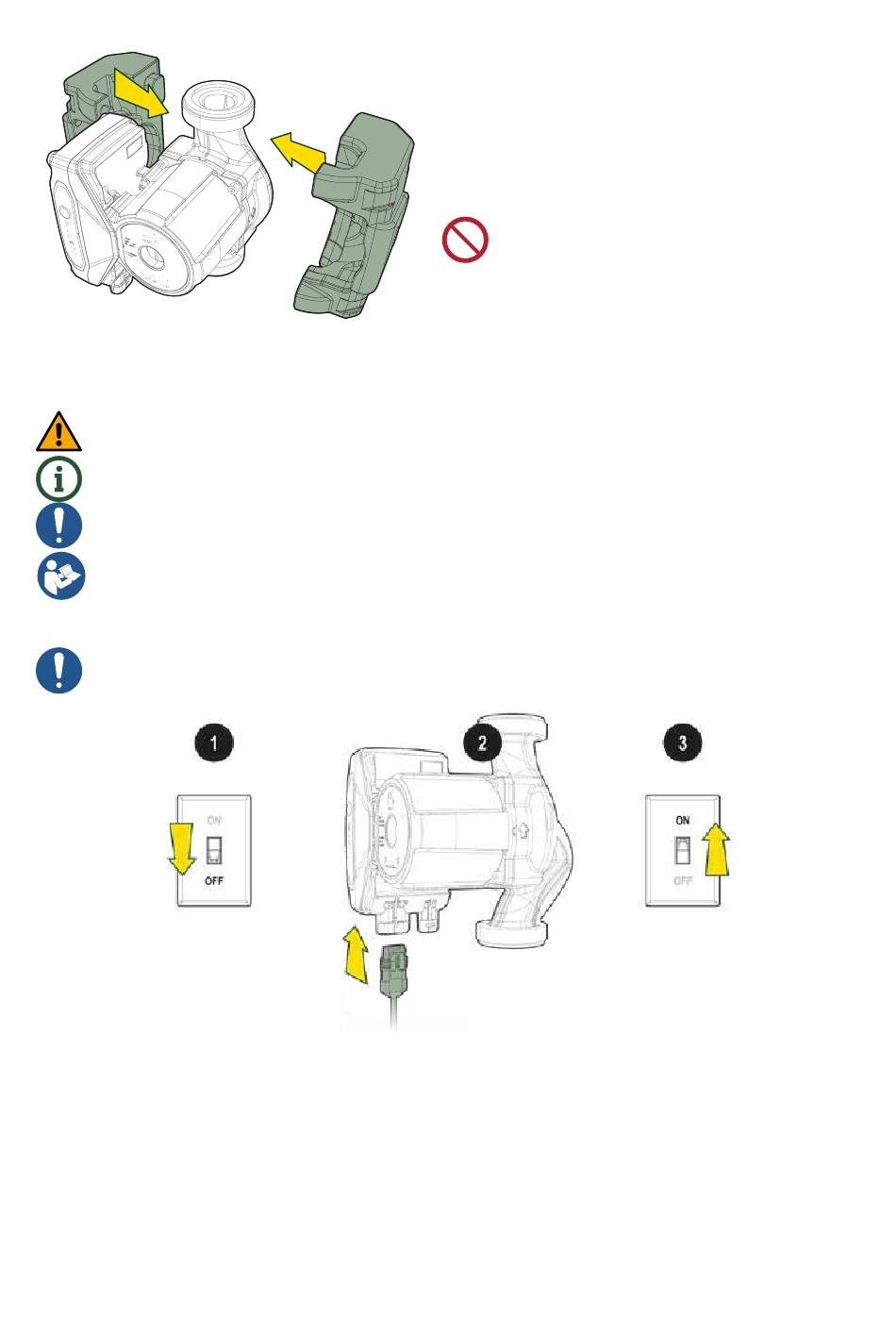

Proceed as follows to connect the circulator (see Fig. 10):
1.
Cut off the electric power supply;
2.
Unscrew the cable gland and extract the terminal board from the connector, releasing it from the side clips,
Rotate the terminal board 180°;
Insert the cable through the nut, strip the wires as shown in Fig. 10 and insert it through the cable gland. Connect the phase (L),
neutral (N) and earth (PE y/g) wires to the terminal board and tighten the three screws on the wires;
Insert the wired terminal board in the cable gland, securing it with the side clips. Screw on the locking nut;
3.
Connect the wired connector to the pump, securing it with the rear hook;
4.
Reactivate the electric power supply.
Fig. 9
ENGLISH
It is possible to reduce heat loss and improve system performance
by insulating the pump body with the insulating shells available to
purchase separately.
Do not insulate the electronic box and do not cover the
control panel
Fig. 10
42
