Fronius DeviceNet Instructions De Service page 55

DeviceNet/DeviceNet Twin signal description

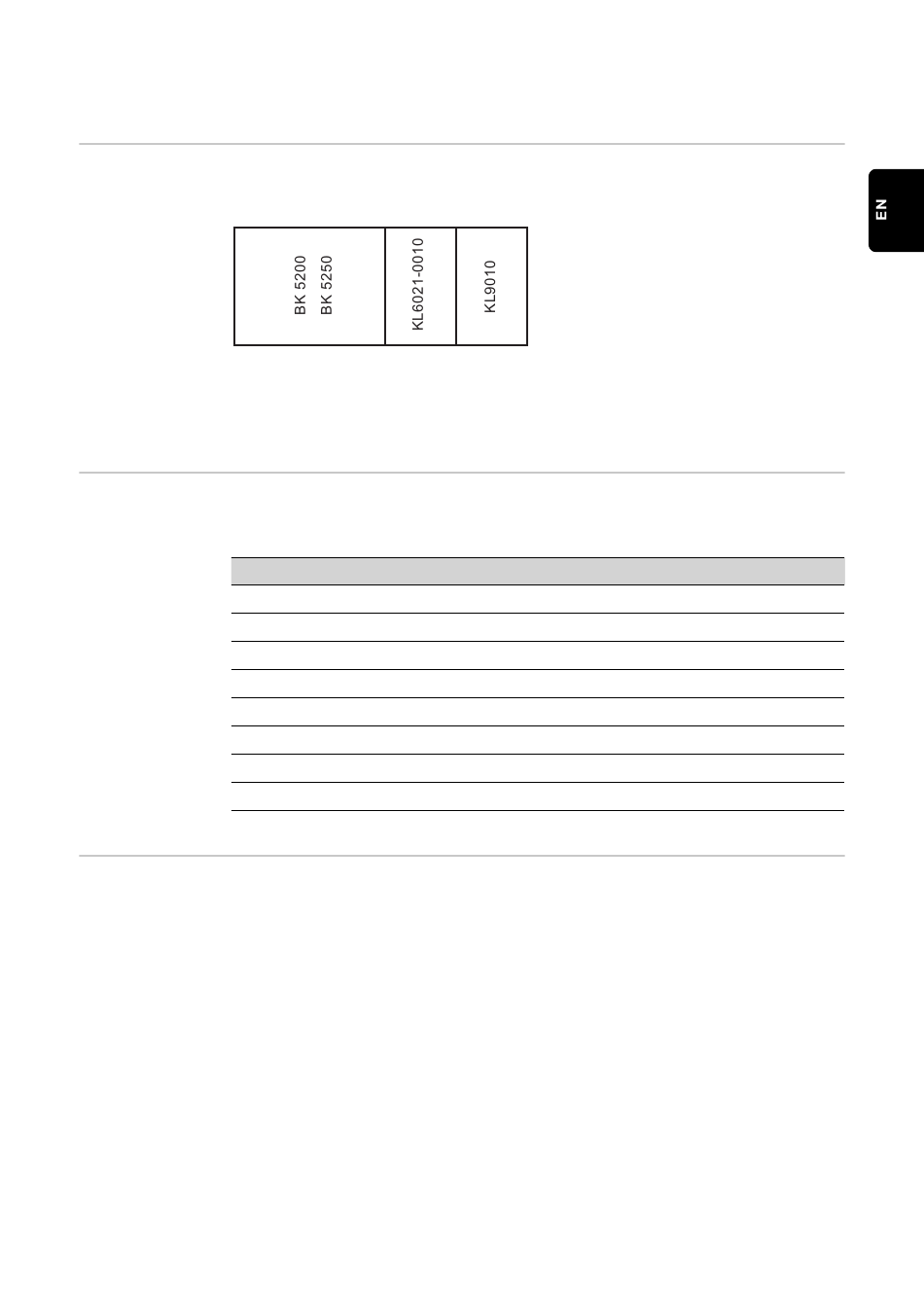

General The following signal descriptions apply to an interface with a KL 6021-0010 com-
munication terminal (standard version)
Extra terminals can also be installed in a robot interface. However, the number
that can be installed is limited by the size of the housing.
IMPORTANT! When installing extra terminals, the process data image changes.
Power source Depending on the selected mode, the DeviceNet/DeviceNet Twin interface can
modes - TS/TPS, transfer a wide variety of input and output signals.
MW/TT series
Mode
MIG/MAG standard synergic welding
MIG/MAG pulsed arc welding
Job mode
Internal parameter selection
TIG
CC/CV
Standard manual welding
CMT/special process
Overview 'DeviceNet/DeviceNet Twin' signal description is composed of the following sec-
tions:
-
-
-
-
-
-
Input and output signals for MIG/MAG - TS/TPS, MW/TT range
Input and output signals for TIG - TS/TPS, MW/TT range
Input and output signals for CC/CV - TS/TPS, MW/TT range
Input and output signals for standard manual - TS/TPS, MW/TT range
Input and output signals for MIG/MAG Twin DeviceNet - TS/TPS, MW/TT
range
Input and output signals for MIG/MAG Twin DeviceNet John Deere - TS/
TPS, MW/TT range
E05 E04 E03
0 0 0
0 0 1
0 1 0
0 1 1
1 1 0
1 0 1
1 0 0
1 1 1
55
