Fronius DeviceNet Instructions De Service page 75

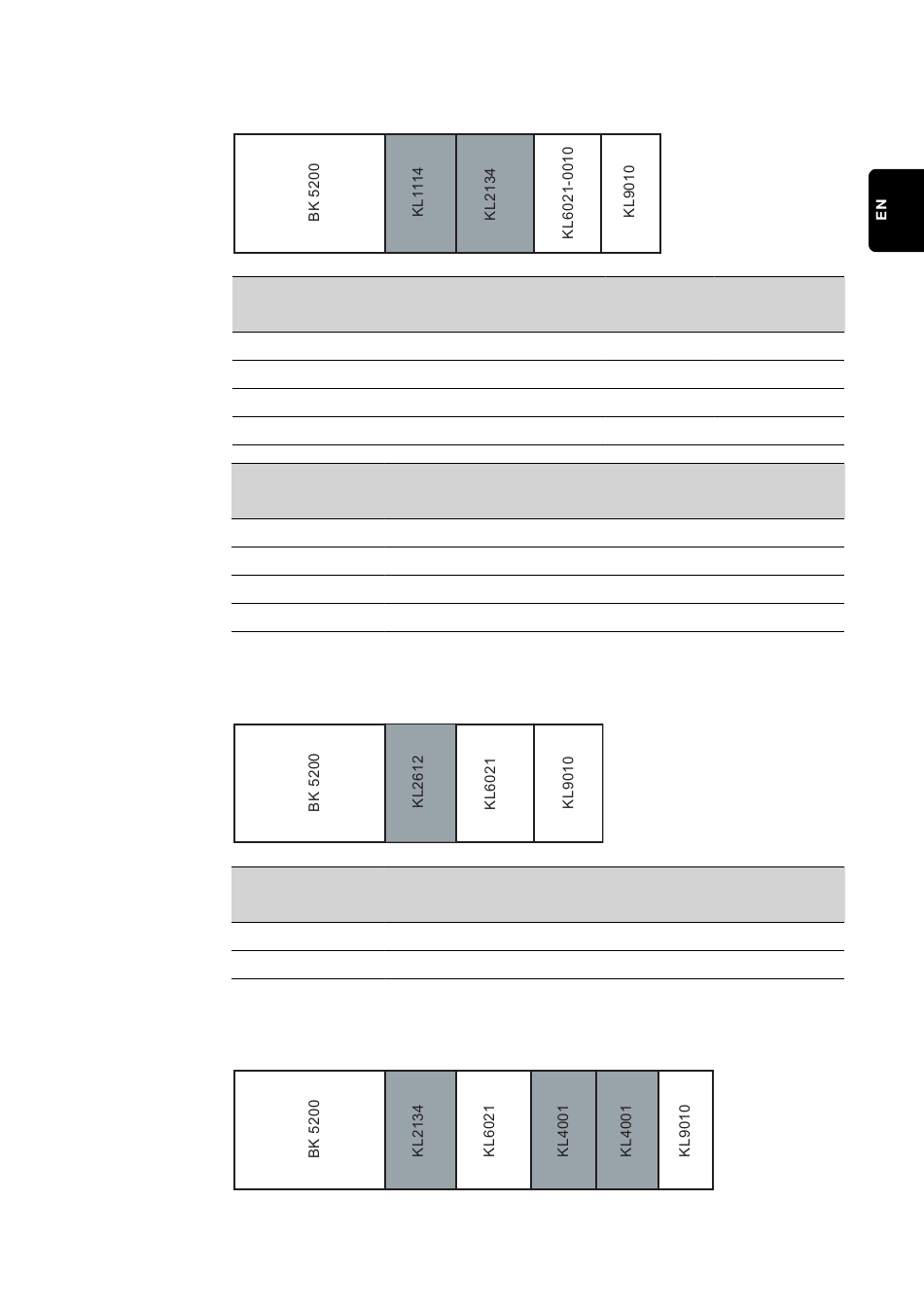

Signal assignments when using the external I/O field bus installation set
(4,100,287)
Input Remarks
Power source
E97 Digital out 1 - KL2134 / 1
E98 Digital out 2 - KL2134 / 5
E99 Digital out 3 - KL2134 / 4
E100 Digital out 4 - KL2134 / 8
Output Remarks
Power source
A97 Digital in 1 - KL1114 / 1
A98 Digital in 2 - KL1114 / 5
A99 Digital in 3 - KL1114 / 4
A100 Digital in 4 - KL1114 / 8
Signal assignments when using the twin-head field bus installation set
(4,100,395)
Input Remarks
Power source
E97 Digital out 1 - KL2612 / 1
E98 Digital out 2 - KL2612 / 5
Signal assignments when using the external field bus installation set 2AO/4DO
(4,100,462)
Range Activity
- High
- High
- High
- High
Range Activity
- High
- High
- High
- High
Range Activity
- High
- High
75
