Connecting the DIN rail to the bus cable shield - TS/TPS, MW/TT series
8
9
10
11
For the TS/TPS, MW/TT series:
12
Slave address Set slave address using the two rotary selector switches.
configuration Default setting = 11
BK5250 All addresses are permitted, each address may only appear once on the network.
1
2
3
IMPORTANT! Ensure that the switches engage properly

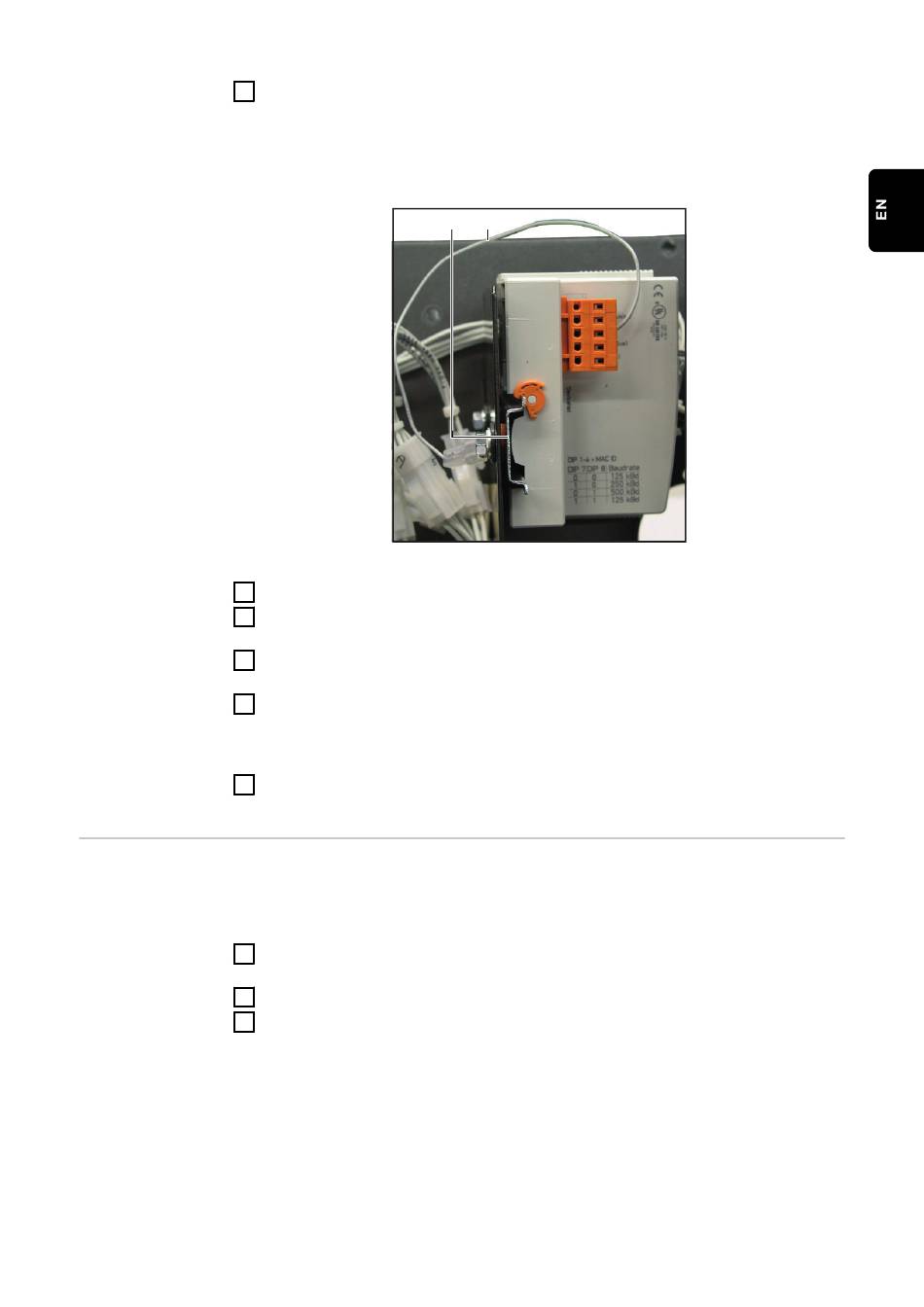

Make the electrical connection between the „insulated DIN rail" (1) and the
bus cable shield (2).
IMPORTANT! Use only „insulated" DIN rails when fitting the field bus coup-
ler. Ensure that the DIN rail has no electrical contact with the earth of the
power source.
Check that the shield is connected to the robot earth
Connect the external power supply from the robot or control system to the
connections for the external power supply on the field bus coupler
Attach the DeviceNet data line and cable for the external power supply to
the cable gland in the strain-relief device using cable ties
Attach the strain-relief device to the interface using the original fixings. En-
sure that the strain-relief device assumes its original position
Connect the LocalNet plug on the interconnecting hosepack to the LocalNet
connection on the interface
Ensure that all devices and components have been switched off and discon-
nected from the mains
Ensure that the interface has been disconnected from the mains
Move switch to desired position using a screwdriver
- Values on the upper switch represent units
- Values on the lower switch represent tens
(2)
(1)
