Final Check and Adjustments
BEFORE SWITCHING THE APPLIANCE ON
Before applying power to the unit for the first time,
check for the following conditions:
All electrical safety provisions have been ad-
j
hered to and the electrical connections are
correct.
The convection blower wheels should turn
j
counter-clockwise: check rotation from inside
the oven cavity.
Water is connected, turned on and all of the
j
connections are water tight. (Does not apply
to CNV-20E convection oven)
Grease filters are in their proper positions.
j
The transport cart is inserted into the cooking
j
cavity. When the cart is not inserted into the unit,
water can spill onto the floor causing it to be-
come slippery. If the door will not close properly,
use the following adjustment procedure.
NOTE: COS-20E and BCS-20E units only --- The
first time the unit is turned on, or after the
unit has been OFF for 5 hours and then
turned on, it will automatically flush the
steam generator for a period of 75 sec-
onds. The steam generator will then fill to
the proper water level. The unit is now
ready for operation.
DOOR ADJUSTMENT
The hinges may be adjusted using the following
procedure:
1. Adjust the top hinge plate by loosening the
three mounting bolts on the top right corner of
the unit.
2. Adjust the bottom hinge pin by loosening the
mounting bolt located under the bottom hinge
plate on the lower right corner of the oven.
3. Adjust the hinges so that the door back and
the unit face are parallel.
4. Tighten the bolts so that there is no further
movement.
5. The adjustment is correct when the door
closes firmly and no steam leaks from the gas-
ket.
The hinges can also be adjusted as follows:
1. Adjust the door catch by loosening the four
mounting screws located on the inside sur-
face of the oven door.
2. The adjustment is correct when no steam
leaks from the gasket. DO NOT over com-
press the door gasket. When closed the door
should slightly compress the door gasket.

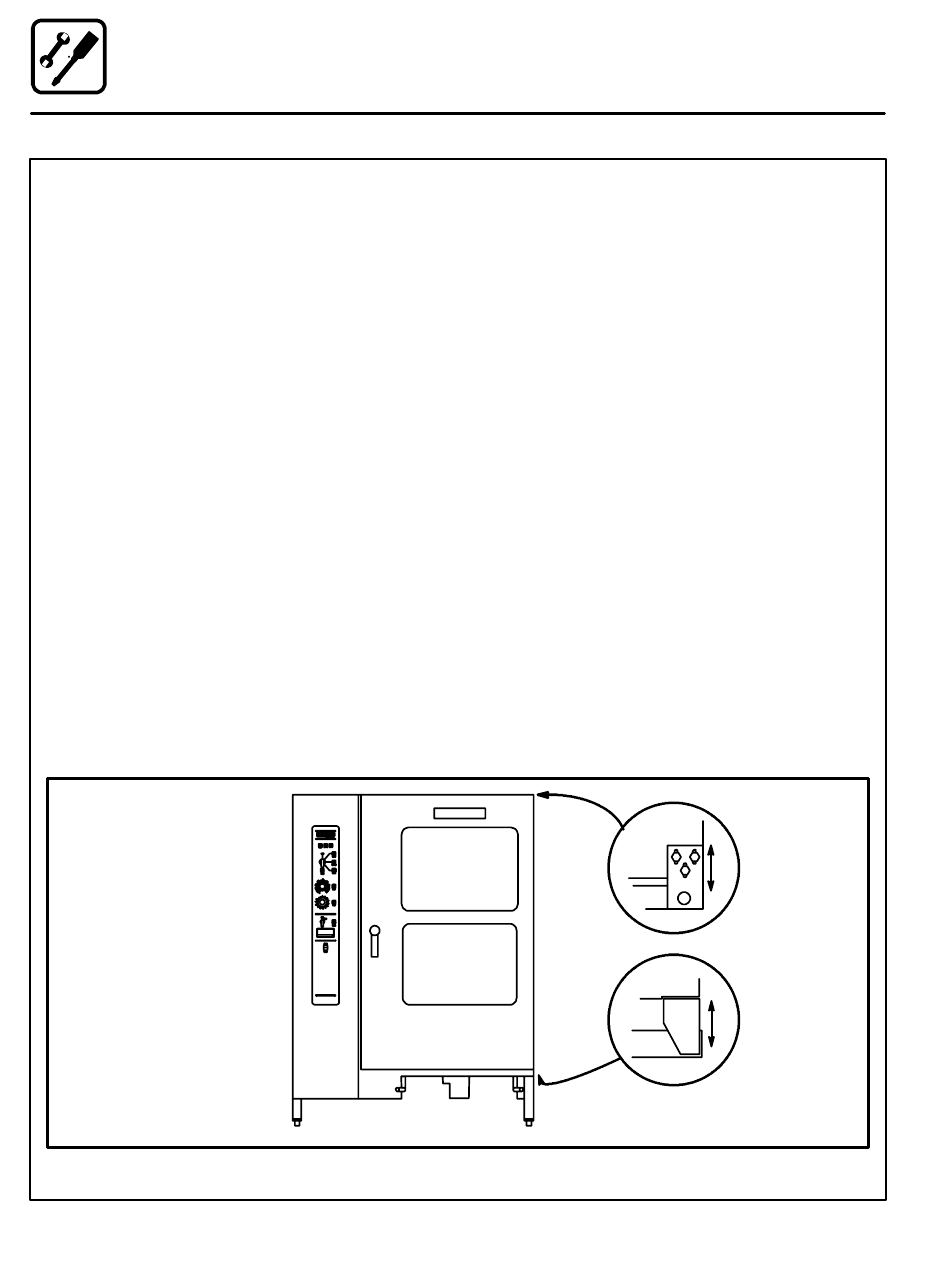

COS-20E Shown
Figure 5
10
Oven
Door
Oven
Door
