ELECTRICAL CONTROL COMPARTMENT
Remove side panel
j
Set motor protectors (F2) to on position
j
Adjust motor protectors to 3 amps
j
Reset high limit thermostats F3 and F6
j
Check fuses
j
Reinstall side panel
j
PLUMBING FINAL CHECK
NOTE: Not applicable for CNV-20E convection
oven.
Incoming water pressure within 40 PSI (mini-
j
mum) - 50 PSI (maximum)
Water solenoids are properly bracketed and
j
not leaking
Atmospheric vented drain in place
j
Water feed lines intact without leaks
j
Water pressure regulators are set to 35 PSI
j
Spray hose connected properly
j
Washer
Regulator Assembly
Fill
Solenoid
Washer
Hose and Spray

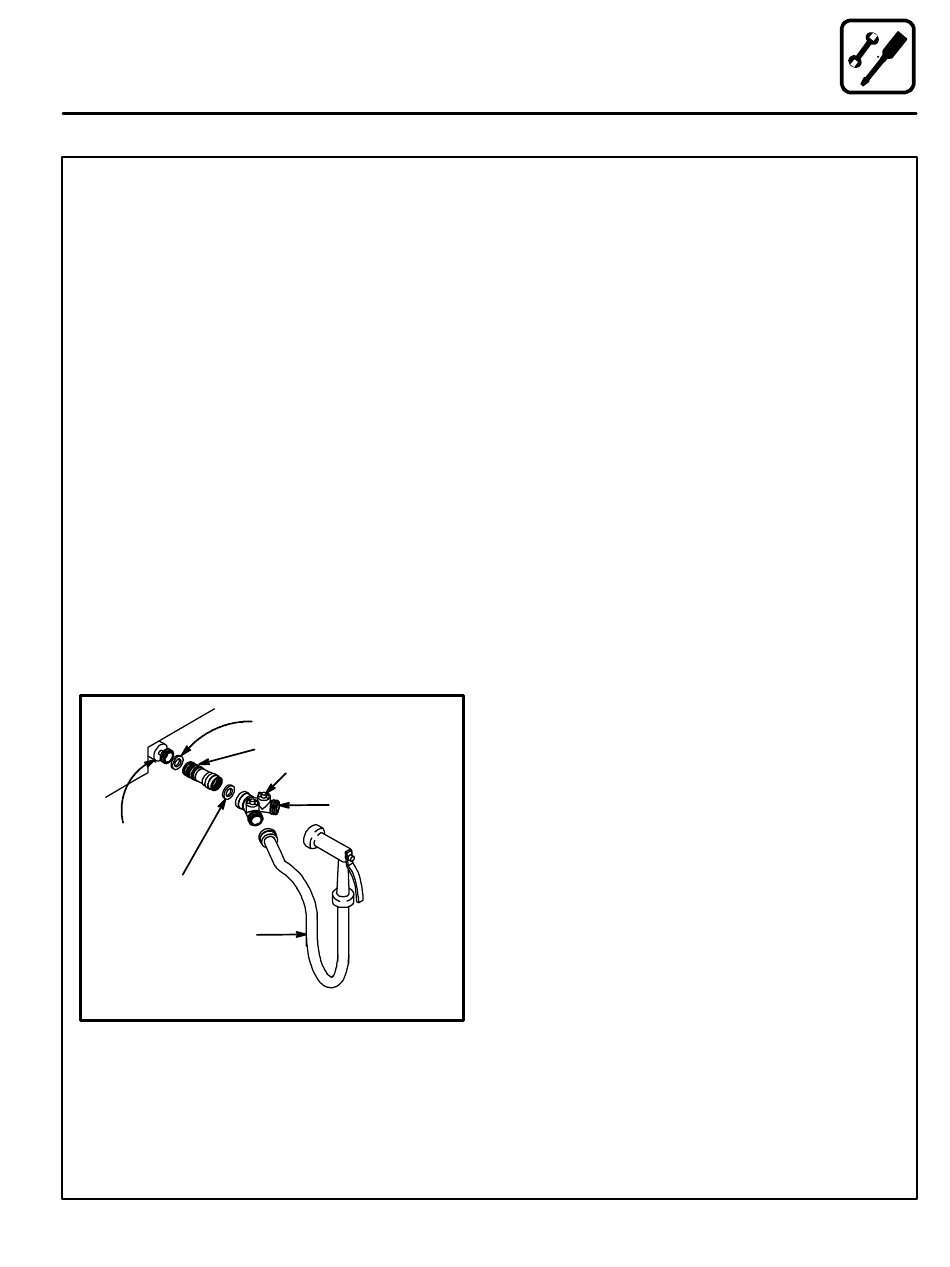

Spray Hose Connection
Figure 6
"Y" Fitting
Cold water supply
Installation
OVEN OPERATIONAL TESTS
NOTE: Checks to be made by customer or autho-
rized service agent.
Cool Down Mode (if applicable)
Turn to COOL DOWN position and verify that
j
the motor operates with the door open.
Combi Mode (if applicable)
Turn to COMBI mode, set thermostat to 350_F
(177_C) and verify:
Steam generator flushes and fills (COS-20E
j
only)
Steam generator preheats to 175_F (79_C)
j
then switches to hot air (COS-20E only)
When hot air reaches 350_F (177_C) hot air
j
shuts off and steam comes on
Steam Mode (if applicable)
Remove control panel, turn to STEAM mode and
verify:
Check timer operation in both positions
j
1. Set timer in position other than ON, timer
should count down
2. Set timer in ON position, oven should op-
erate continuously without timer
Run light (power light) turns on
j
Unit produces steam, window fogs, door seal
j
does not leak
Quenching system working
j
Hot Air Mode (if applicable)
Turn to HOT AIR mode and set thermostat to
400_F (205_C) and verify:
Heat demand light is on
j
Oven is heating properly
j
Heat lights shuts off at 400_F (205_C) and
j
oven maintains 400_F (205_C)
11
Final Check Lists
