I. BACKREST TENSION ADJUSTABLE

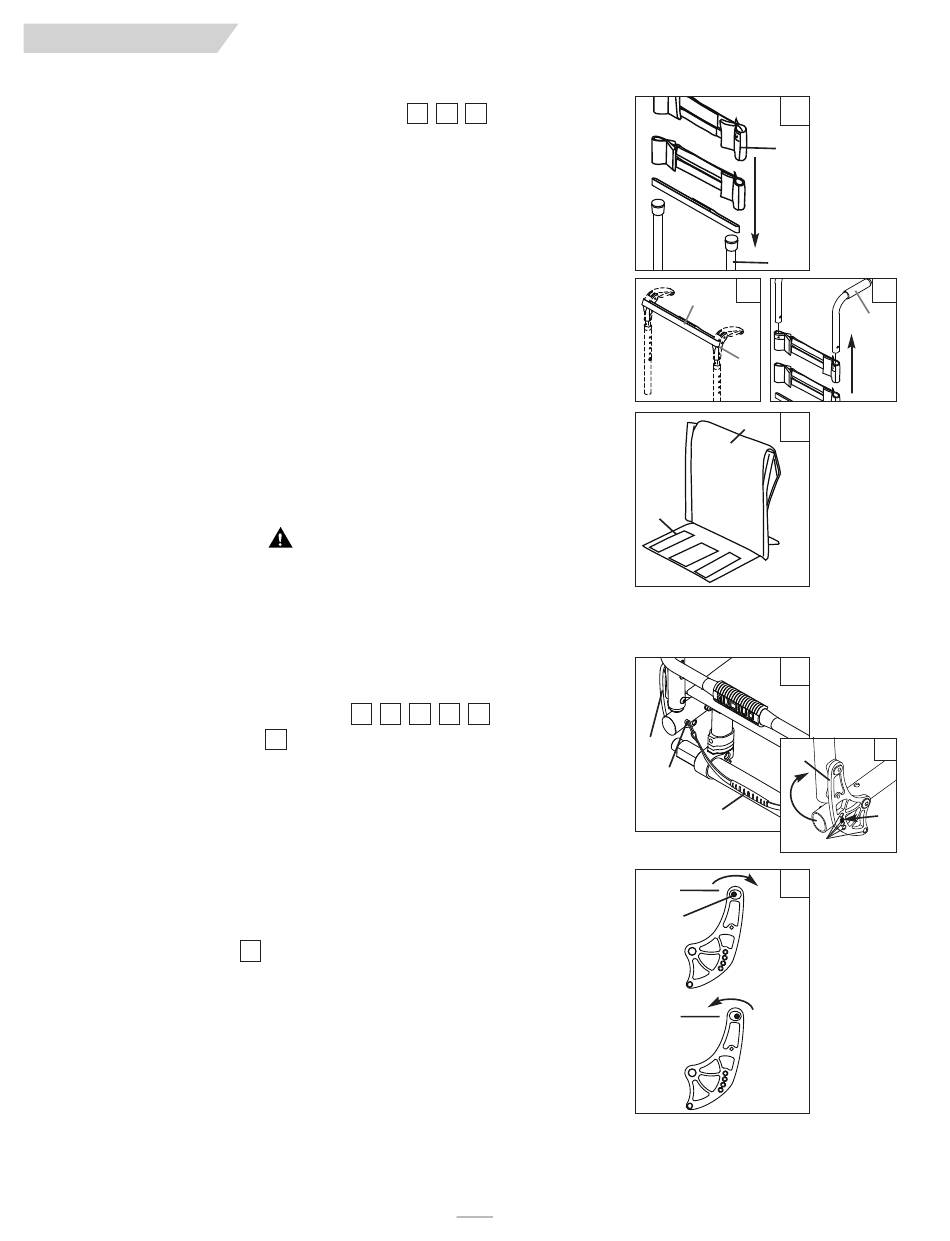

To install the Backrest Tension Adjustable
1. Slide Velcro straps (A) over the backrest frame section. Make sure to include at least
one strap below the towel bar (if using a rigid chair).
2. Tighten the straps appropriately to desired tension level. DO NOT overtighten straps
as this will cause undue strain upon the chair backrest frame (B).
3. If using fold down push handles, insert the single Velcro strap (C) through the slots in
the front of the push handles (D).
If using inegral push handles (E), slide straps from bottom of backrest upward.
4. Install backrest cover at desired level and fold over rear of Velcro strapping system (F).
The Quickie patch should be upright on the rear of the chair.
5. Finish installation by placing vanity flap (center panel) down onto Velcro on the seat
sling to secure attachment (G).
Adjusting the Backrest Tension Adjustable
Suggest using anti tips while making any adjustments. Ensure anti tips are safely secured and
in a position to prevent the wheelchair from tipping backwards.
1. User can transfer into wheelchair. Place wheel locks in the locked position
2. From the rear of the wheelchair the attendant can lift the Vanity Flap (Center panel) to
access the strap system. Adjust straps for optimal balance and truck alignment. Ensure
the Velcro straps has a minimum of 2"s of engagement, hook securing to loop. Press
the Velcro together to ensure it's securely engaged.
3. Once adjustments have been finalized replaced Vanity Flap to its original position.
Any changes made to the straps will affect the center of gravity. Suggest the
user has the attendant stationed behind the wheelchair to prevent the wheel-
chair from tipping backwards while they become accustomed to the adjustment.
J. BACK ANGLE ADJUSTMENT
Folding and Unfolding Backrest
1. Release the backrest by pulling the release cord (H) with a simple, short force.
2. While maintaining tension on the release cord, rotate the backrest to the desired angle
or to the folded down position.
3. Lock the backrest in place by releasing the cord and allowing the pins (I) to engage in
the nearest hole ( J) of the backrest bracket (K).
CAUTION– Be sure the pins (I) are fully engaged through the backrest bracket (K) on both sides of the chair.
Test the backrest to be sure it is locked before use.
CAUTION – When changing the back angle of the wheelchair both the left and right angle adjustable back
bracket must be in the same hole position before the wheelchair is to be used.
Adjusting Backrest Options
Backrest bracket has two positions, Forward Mount and Rearwad Mount. Change the bracket
position by removing bolt X and pivoting the bracket forward or rearward. Reinsert the bolt in
the new position and tighten. Then follow the instructions for "Folding and Unfolding backrest".
F= Forward Mount R= Rearward Mount
