E N G L I S H

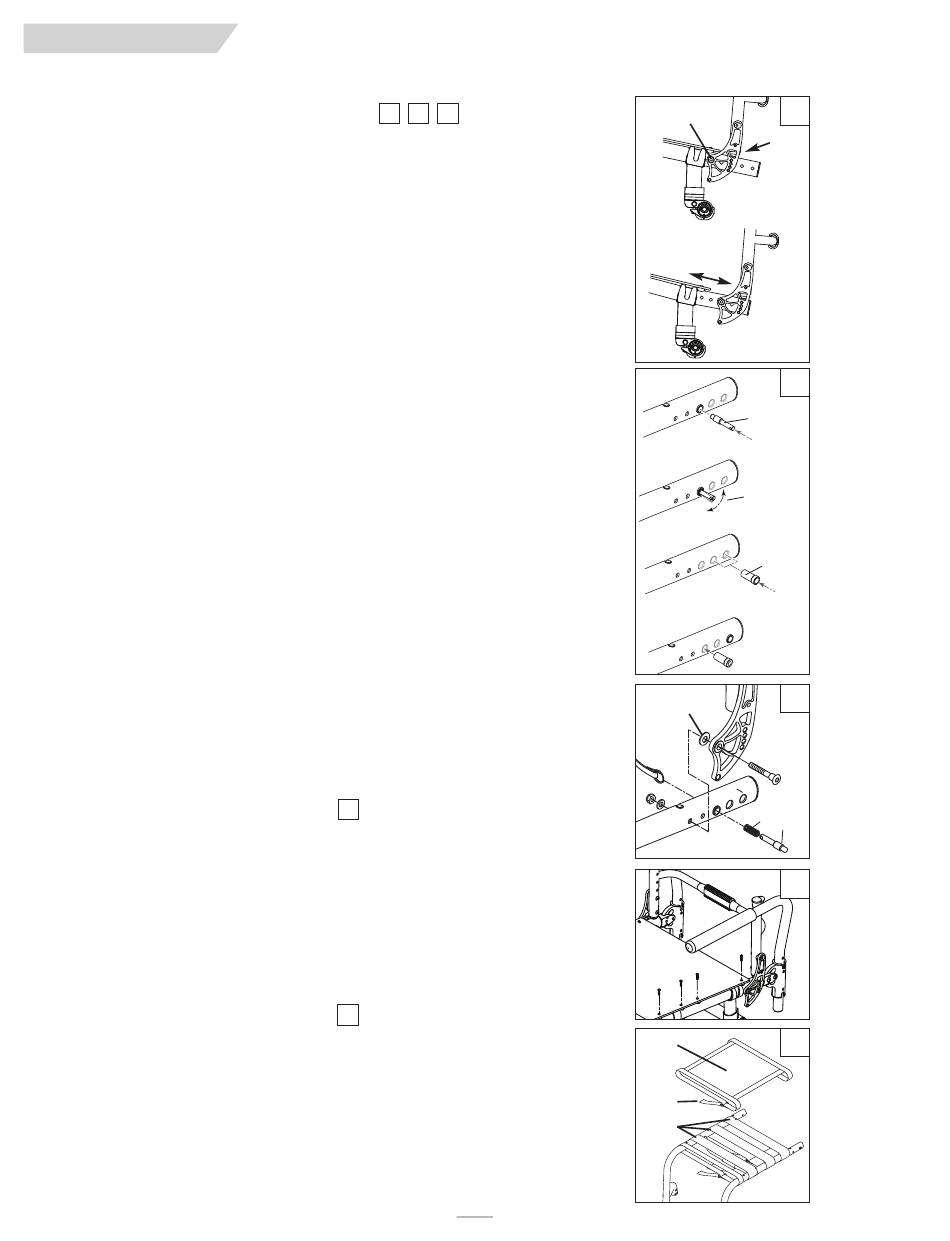

F. DEPTH ADJUSTABLE BACKREST
1. The backrest may be adjusted by first removing the JAY style quick-release lanyard
cord (not shown) from the backrest release pins (A) on the inside of the chair frame.
This will allow the pin and spring assembly to be removed later in step 2.
2. Using a 5mm and 10mm Allen Wrench, remove the bolt holding the backrest bracket
to the chair (B). Repeat this step for the opposite side.
3. Once the backrest is removed, the quick-release pins and springs must be removed.
The frame bushing can be removed by reversing the quick-release pin and inserting the
pin into the bushing (C). Slowly remove the pin (D) as it's worked from side to side to
pull the bushing out (Fig. 12). A pair of pliers may be necessary to grip the exposed lip
(E) of the bushing for complete removal.
4. If the desired back depth is 1" greater, move the plunger bushing back one hole. If the
desired back depth adjustment is 2", the plunger bushing must be moved to the most
rearward hole. Insert the pivot bushing received with the owners manual into the hole
from which the original bushing was removed.
5. To reassemble the back, reinsert the springs into the bushings (F). Then reinsert the
quick-release pins into the bushings with the lanyard attachment holes first (G).
6. Reposition the backrest in place in the folded position. Insert the quick-release pin into
its appropriate placement hole.
7. Working on one side of the chair at a time, insert the large beveled washer (H) in
between the backrest bracket and the frame. Insert the backrest plate pivot bolt into
the chair and secure using the washer and nylock nut.
8. Using the 5mm and 10mm Allen Wrench, tighten the nylock nut so that the end of the
bolt reaches the end of the nut. Repeat on the opposite side of the chair.
NOTE– Do not over-tighten the backrest plate pivot bolt as it may hinder the backrest from folding properly.
9. Reattach the JAY®-style quick-release lanyard to the quick-release pins.
G. SEAT SLING ADJUSTMENT
Remove the screws retaining the left side seat sling. Readjust VELCRO®-style material to
increase the tension in the seat sling. Replace screws. If there is any difficulty in reattaching
the screws, try using a probe to help align the holes. Ensure that the plastic saddles are under
the seat rail in all fastener positions.
H. ULTRA LIGHT SEAT SLING
The Ultra Light Seat Sling may be removed by first loosening the Velcro strap (I) on both the
front and rear of the seat upholstery cover ( J). Then proceed by loosening all Velcro straps
(K) that encircle the chair frame. All straps must be reinstalled in the same position and quan-
tity as the original set-up.
