BML-M0 _ -... / BML T _ _ -...
Magnetic Tape – Magnetic Encoder System
3

Construction and function

3.1

Magnetic tape design

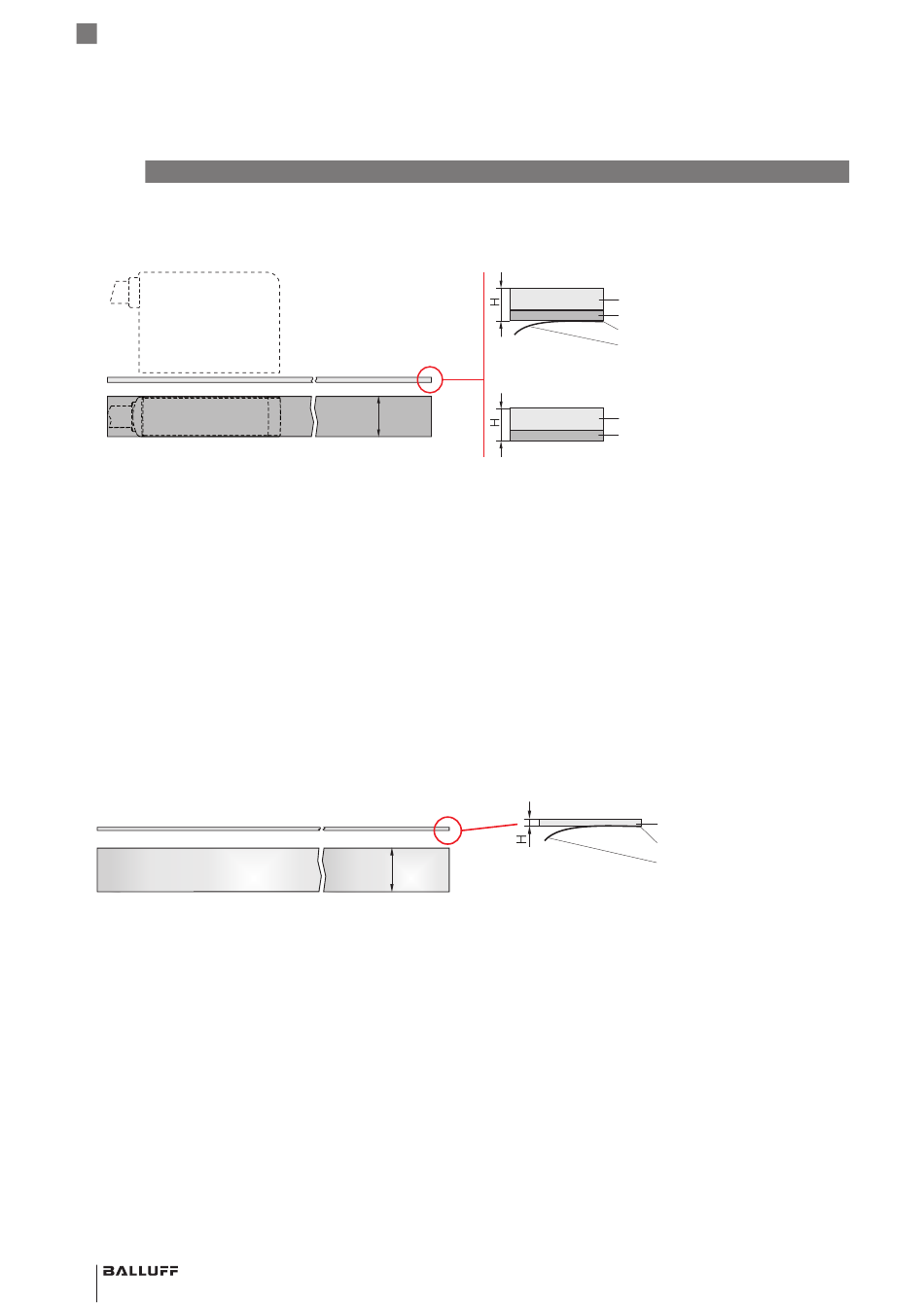

Fig. 3-1: Magnetic tape design
Max. length: The maximum delivered length of the
magnetic tape depends on the model.
Magnetic layer: The magnetic layer contains a track with
alternating magnetic north and south poles. Some versions
also have a second track (e.g. with reference points) or a
third track.
Carrier film: The carrier film holds and stabilizes the tape.
Imprint: All tapes are imprinted with the production date,
a coding reference, a direction arrow and, depending on
the model, a track structure symbol.
3.2

Cover strip design

Fig. 3-2: Cover strip design
The cover strip is used to protect the magnetic tape
mechanically.
The cover strip is included with the BML-M0_-I_ _-A3-... /
BML T_ _–_ _ _ _–_3... or can be ordered separately by
the roll (accessory).
For dimensions see Tab. 5-1 on page 17
1
6 english
1)
B
1)
B
BML-M02... / BML-M07... / BML TSC-_ _ _ _-1...
Magnetic layer
Carrier film
Adhesive layer
Protective film
BML-M03... / BML-TSC-_ _ _ _-Z...
Magnetic layer
Carrier film
Cover strip
Adhesive layer
Protective film
