Attachment Application
BF Pick tines
2) 3)
FCS Edger
FH Power scythe,
adjustable
1)
HL 0° Long reach hedge
trimmer
2)
HL 135° Hedge trimmer,
adjustable
1)
HT Pole pruners
1) 4)
SP Special harvester
1)
SP 10 Special harvester
1)
Unsuitable for models with bike
handle
2)
Limited suitability for models with
bike handle
3)
It is not necessary to use the
shoulder strap
4)
Use the handle hose supplied with
the machine
14

Mounting the Bike Handle

Mounting Bike Handle with Swivelling
Handle Support
The machine is supplied with the
swiveling handle support already
mounted on the shaft. To mount the
handlebar it is necessary to remove the
clamp moldings.

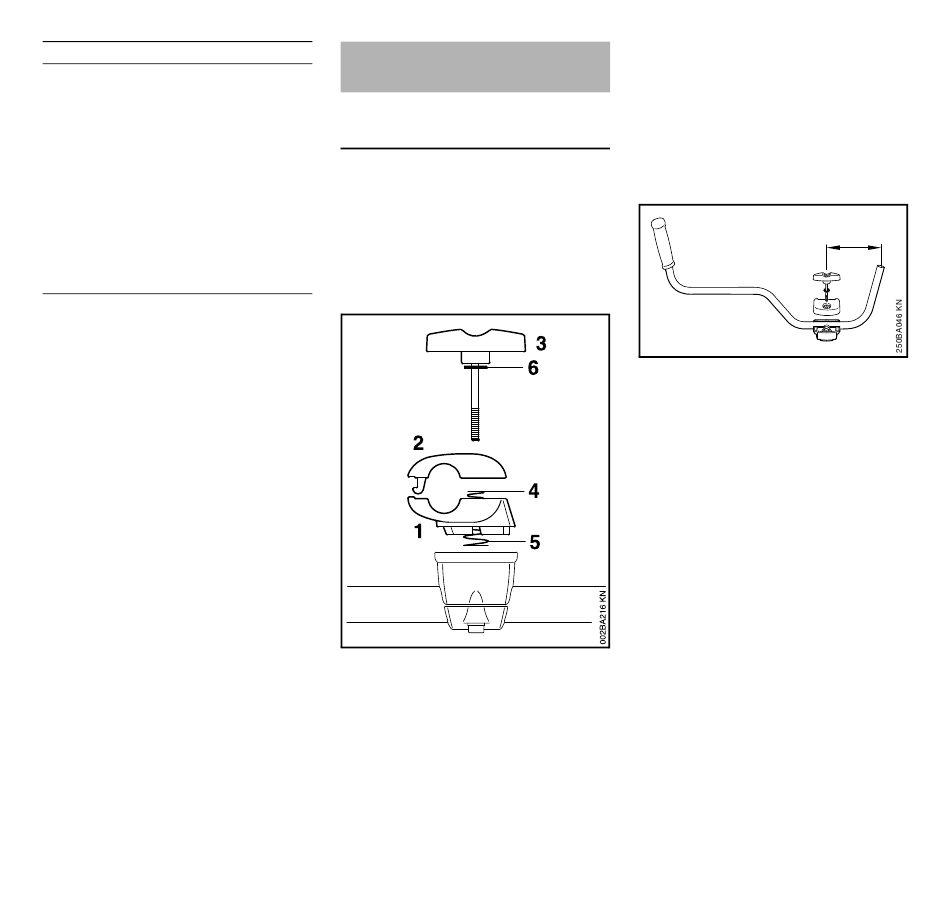

Removing the clamp moldings
Hold the lower clamp (1) and upper
N
clamp (2) firmly together.
Release the wing screw (3) – the
N
clamps are loose once the wing
screw has been released. They are
pushed apart by the two
springs (4 and 5).
Pull out the wing screw – the
N
washer (6) remains on the wing
screw.
Separate the clamp moldings – the
N
springs (4 and 5) remain in the
lower clamp.
Securing the handlebar
7
Place the handlebar (7) in the lower
N
clamp (1) so that distance A is no
more than 15 cm (6 in).
Place the upper clamp in position
N
and hold both clamp moldings
together.
Push the wing screw through the
N
two clamps as far as stop – hold all
parts together and secure them.
FS 90, FS 90 R
A
1
