3) Installation feasibility check

Before proceeding with installation, check the condition of the product components, suitability of the selected model and conditions of the
intended installation environment.

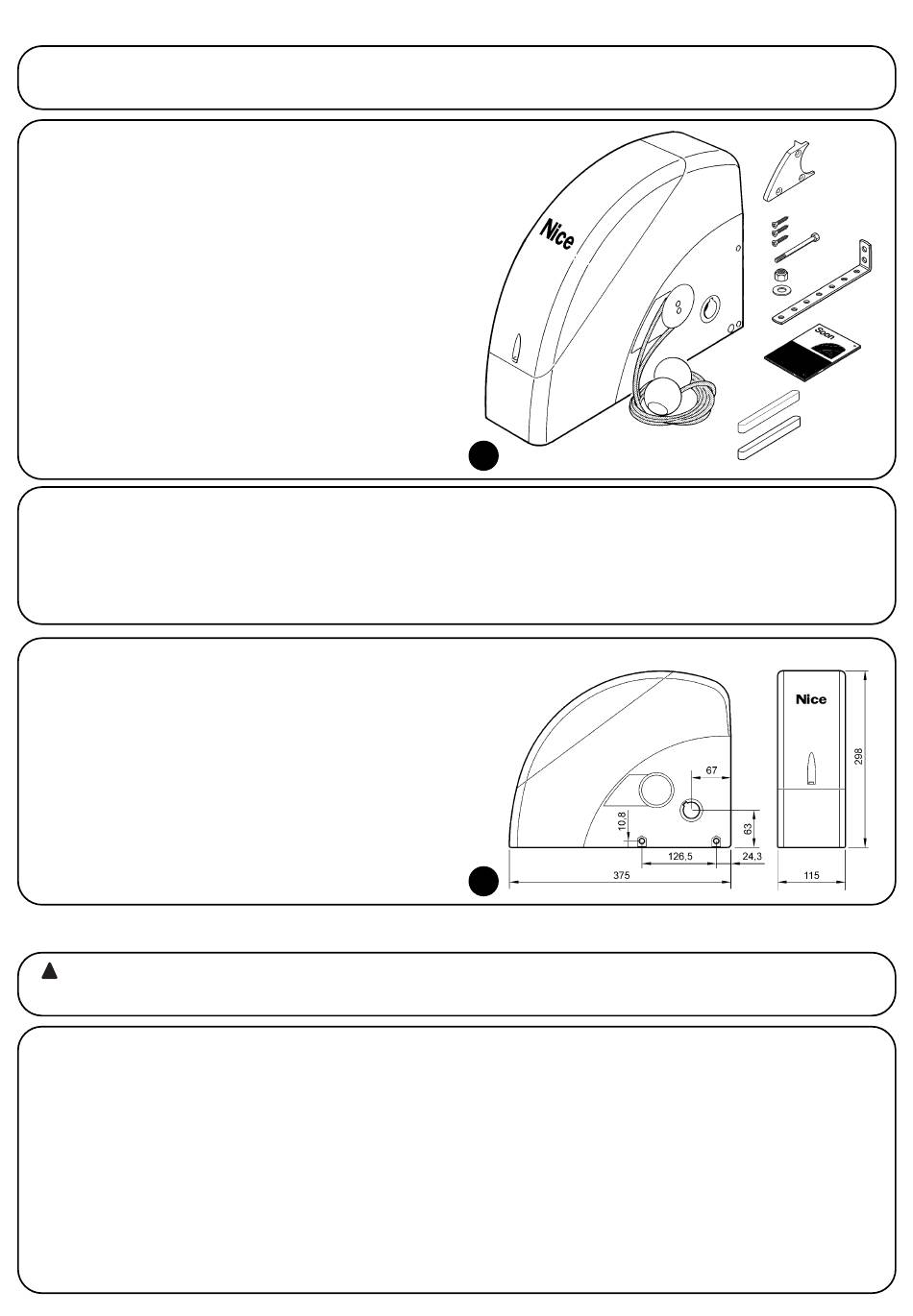

3.1) Check product components (see fig. 1)
Check the condition of the packaging:
unpack the product and ensure presence of:
- 1 Soon gearmotor
- 1 fixing bracket
- 4 release half-rings
- 2 keys
- 1 M8x130 screw
- 1 M8 locknut
- 1 D8 washer
- 1 gear
- 3 black self-tapping screws
- 1 instruction manual

3.2) Check suitability of environment

• Check that the selected site of installation is compatible with the
overall dimensions of the Soon model (Fig. 2).
• Check that there are no obstacles along the trajectory of the sec-
tion door, which could obstruct total opening and closing move-
ments.
3.3) Check product application limits (see fig. 2)
Check the application limits of the Soon model and relative acces-
sories to be installed, assessing suitability of the characteristics to
meet the requirements of the environment and the limitations speci-
fied below.
• Ensure that the size of the sectional door is less than 20 m
• Ensure that the section door drive shaft is compatible with the
Soon outlet shaft, using the keys provided in the pack.
• Ensure that the wall fixing brackets are sufficiently long.

4) Install the various components

!
Installation of the automation must be performed exclusively by qualified personnel, in observance of current legis-
lation and standards governing these operations, and according to the instructions in this manual.
4.1) Standard installation layout (see fig. 3)
Fig. 3 illustrates the complete installation of a Soon gearmotor. The drawing shows the various components and cables required for con-
nection, all assembled and positioned according to a standard layout.
Key to mechanical components in Fig. 3:
1 - Soon gearmotor
2 - Photocell
3 - Key-operated selector switch
4 - Post for photocell
5 - Flashing light
6 - Transmitter
7 - Main edge
4
1
• Check that the selected site of installation enables easy and safe
execution of manual manoeuvres
• Check that each device to be fixed is positioned on a solid surface
protected from the risk of accidental impact.
2 .
2
Key to electric cables in Fig. 3:
A - Electric power line
B - Flashing light with aerial
C - Photocells
D - Key-operated selector switch
E - Main edge
