This unit features the following main functions:
 Barbecue and Heater in the lower fire place
 Spit and Grill in top oven.
The main features of this log Oven / Grill are:
Fireplace (Lower section)
 Cast iron.
 Cast iron door with vitroceramic glass.
 Adjustment of combustion through primary air
valves, self-cleaning glass and draw valve.
 Slotted walls for the placement of gridirons to use
the fireplace as a barbecue.
 Base and removable gridiron.
Oven (upper section)
 Cast iron door with vitroceramic glass, and
thermometer.
 Capacity, 102 litres.
 Stainless steel walls, roof and door lining.
 Interior lighting
 Oven base, double, enamelled cast iron for use
as barbecue gridiron. The top section is
removable.
 The top section features a flue and a cover to
access and clean the chimney.
 Removable fixtures for gridirons for easy cleaning
of the oven.
 2 chrome steel spits. (For use in the oven or the
fireplace).
 Stainless steel tray, and Pyrex glass bowl.
Furthermore ...
 Soot pan at the top of the front section to provide
access to clean the front section of the hood,
above the oven.
 Special scraper for cleaning.
 Stainless steel controls.
 Flue for Ø200 mm pipes.
 The whole is protected with black heatproof paint (RAL 9004).
I.- INTRODUCTION
52

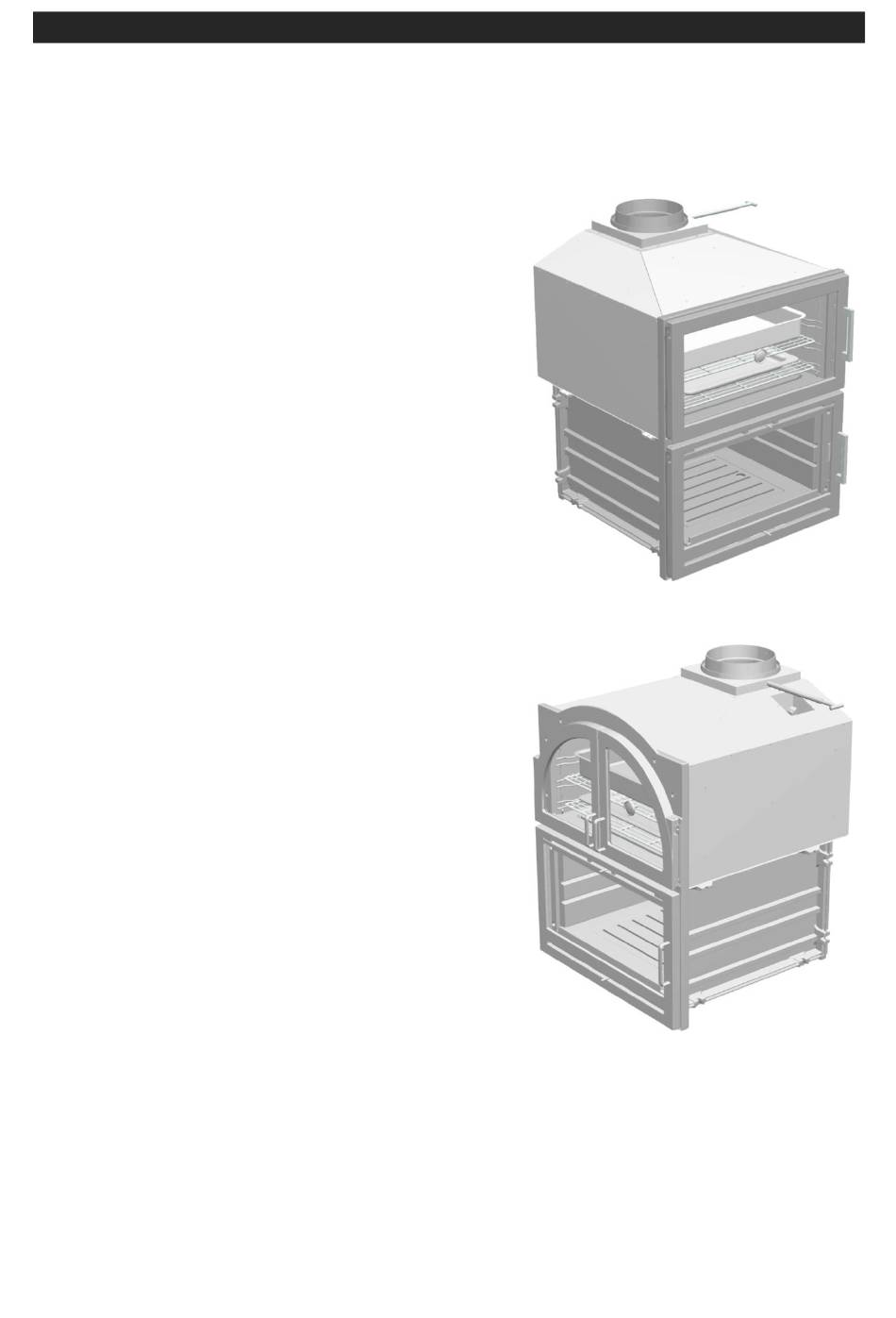

Fig.3
Fig.4
