Instructions for Use
1.
4.

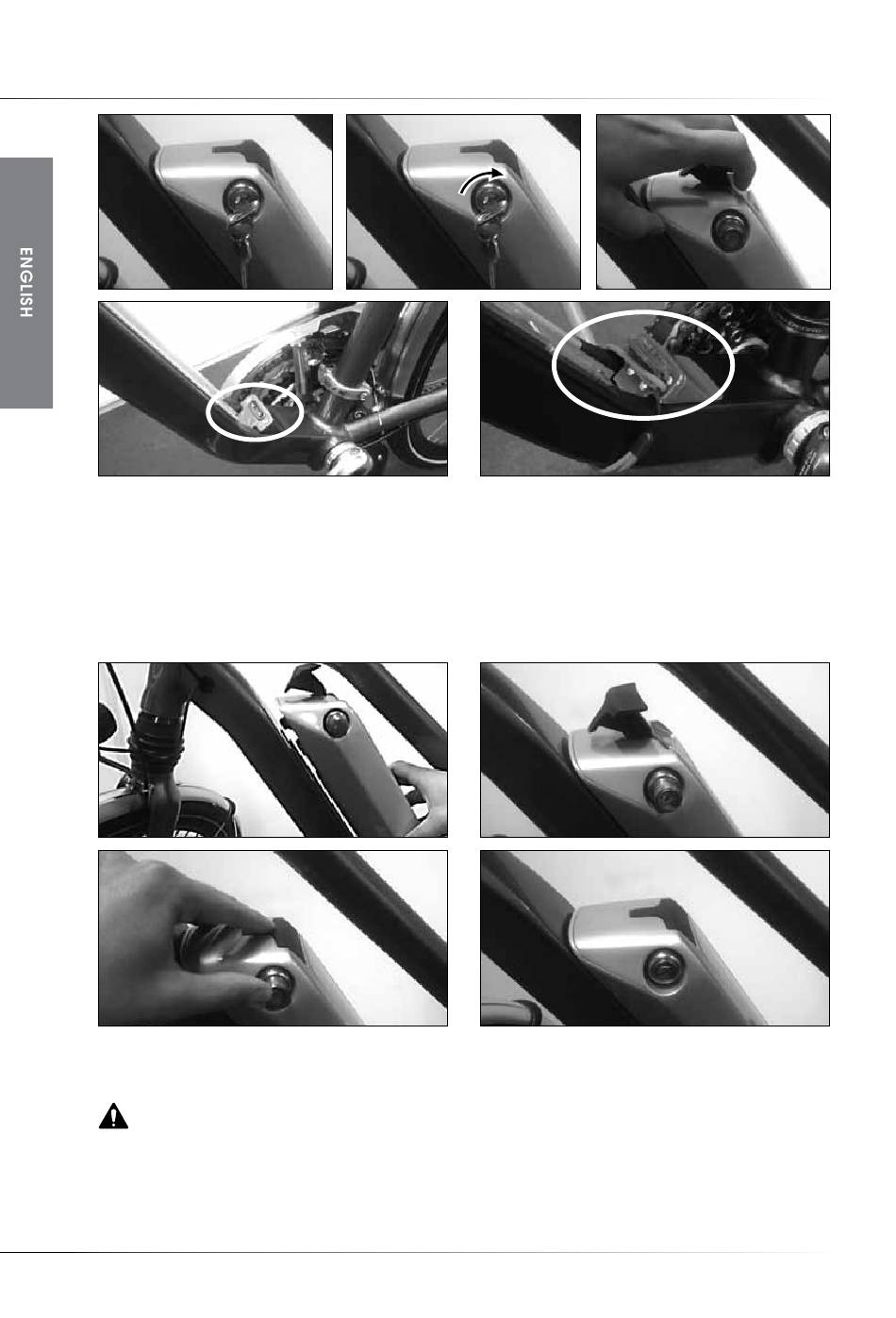

• Replacing battery-pack
Position the battery over the down tube (with some space between the seat tube and the lower end of
the battery) (1). Now, slide the battery-pack down onto the rail (2). Use the lever to lower the battery
carefully during the last phase of sliding, so that the connectors engage (3). Be sure that the
connector at the bottom of the battery and the connector on the docking engage properly. When the
battery is fully in place, push the lock in until it clicks (4). Do not ride the bike with the lock open.
1.
3.
4.7 Charging the battery-pack
Notice: Before charging, make sure that the system is switched off and never turn the system on
or off during charging. This prevents unintended activation of the system. Only use the power supply
approved for use with this bike. Charging with a non-original power supply may cause the battery
pack to overheat, catch fire, or even explode. When charging, do not let the battery-pack or power
supply get wet – because of risk of electrical shock.
30
2.
5.
Contacts at the bottom side of the down tube
2.
4.
3.
