Quick start - Down Tube Battery
1.7 Down tube Battery (RIDE+ C320, RIDE+ C420)

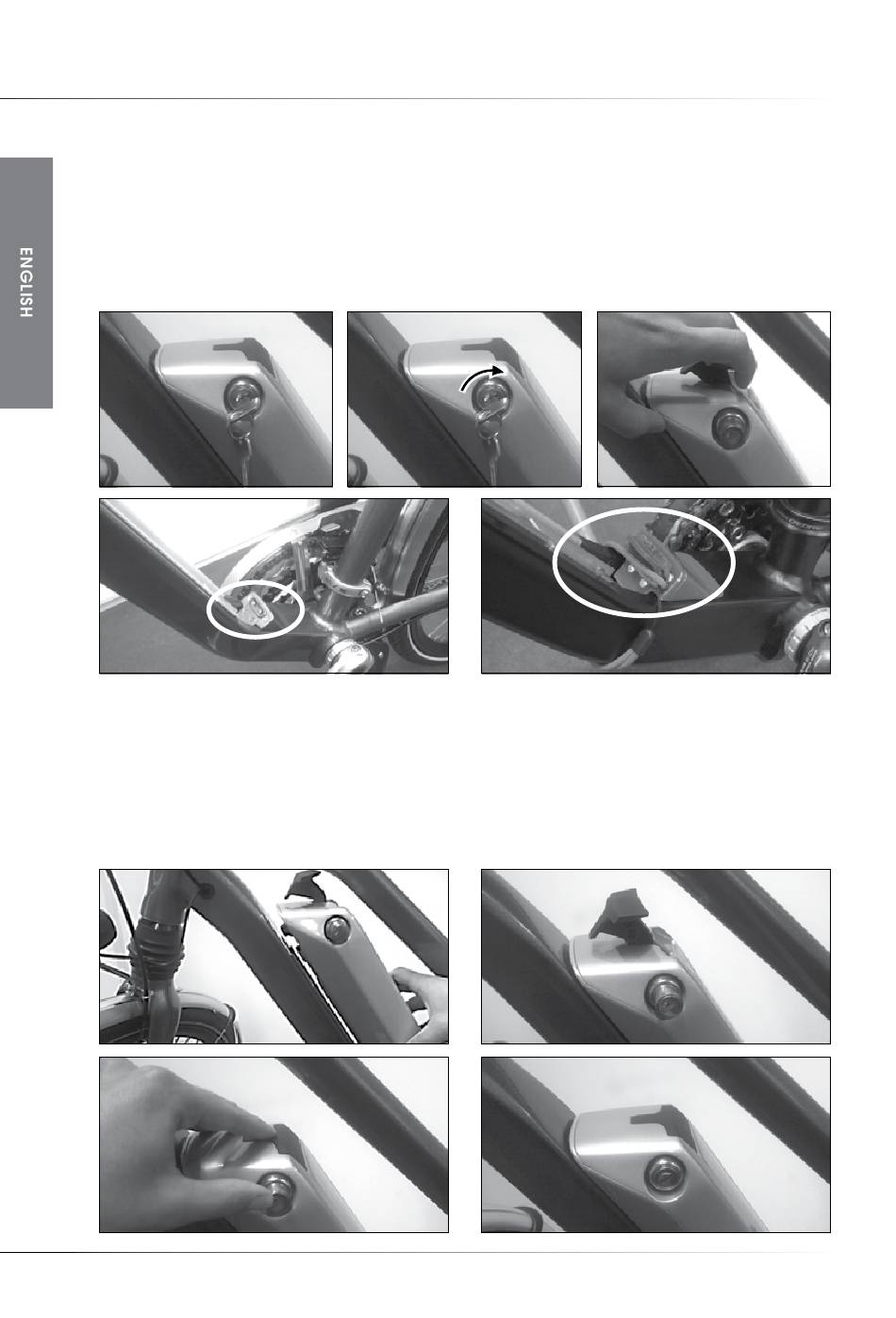

• Removing the battery-pack
Insert the key in the lock, twist the key clockwise until the lock springs out (1,2). When the lock
springs out, the lever of the battery will be released. Now take the key from the lock and pull the
lever of the battery so that it slides upwards - parallel to the down tube - until it releases from the
rail (3). When the battery is not on the bike, always use the protective cover on the contacts on the
frame to protect the electrical system from water (5).
1.
4.
• Replacing the battery-pack
Position the battery over the down tube (with some space between the seat tube and the lower end
of the battery) (1). Now, slide the battery-pack down onto the rail (2). Use the lever to lower the
battery carefully during the last phase of sliding, so that the connectors engage (3). Be sure that
the connector at the bottom of the battery and the connector on the docking engage properly.
When the battery is fully in place, push the lock in until it clicks (4). Do not ride the bike with the
lock open.
1.
3.
12
2.
5.
Contacts at the bottom side of the down tube
2.
4.
3.
