4.6 D owntube Battery-pack
• Battery-pack size
Depending on the model, your bike will be equipped with either a "RIDE+ C320 battery-pack" or a
"RIDE+ C420 battery-pack". Removal, putting back and charging are the same for the two packs.
Both packs have the same exterior and are interchangeable.
• 'RIDE+ C320 Battery-pack', containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
• 'RIDE+ C420 Battery-pack', containing 52 Li-Mn (Lithium-Ion) cells, 8.8 Ah, 420 Wh.
• Bottle cage holder

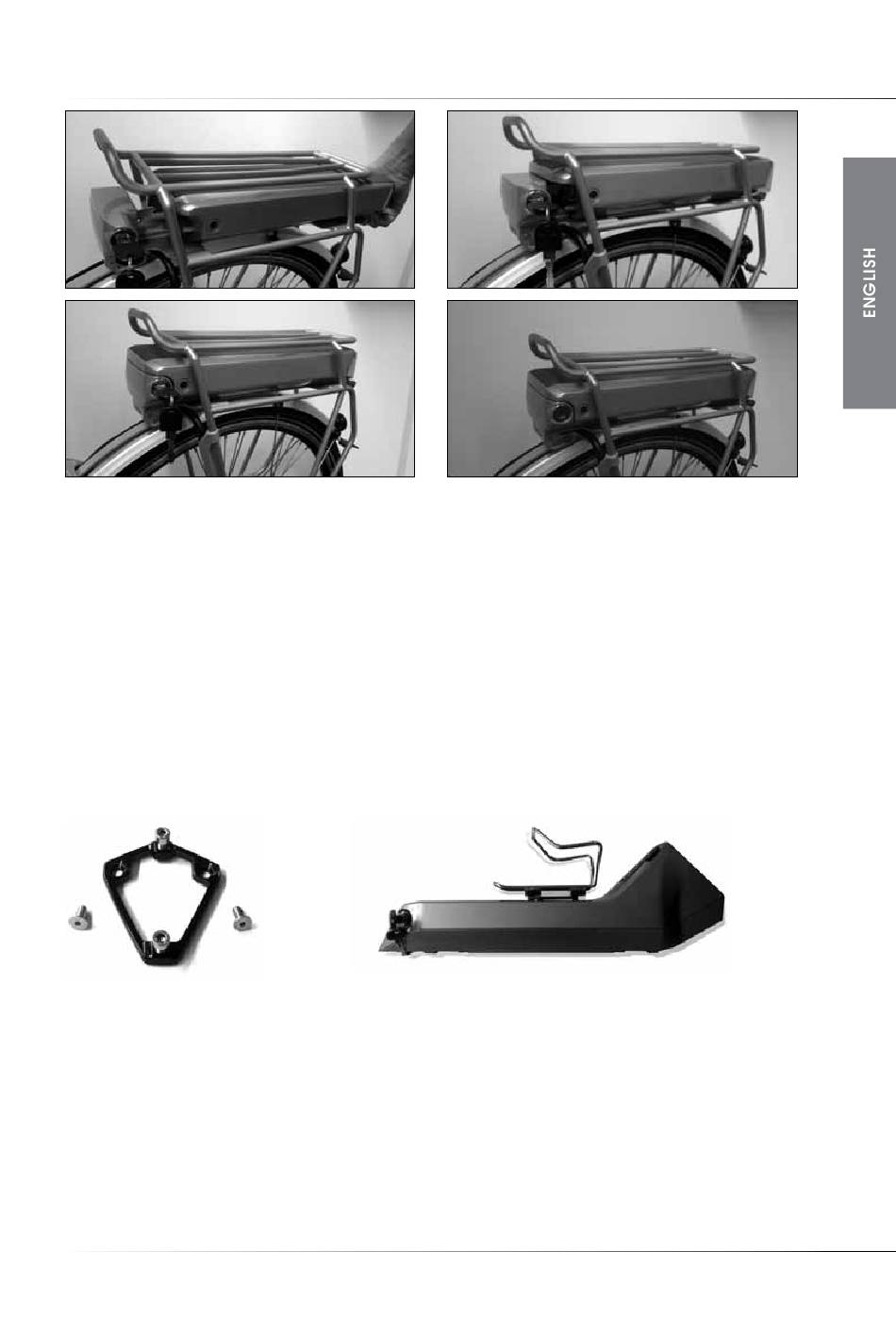

A bottle cage can be mounted on the RIDE+ C320 and RIDE+ C420 batteries by installing the
'bottle cage holder'. This adapter can be mounted by 2 bolts. Subsequently, the bottle cage can be
mounted on the adapter. Only use the 4 bolts that are delivered with the holder to prevent damage
to the battery cells inside.
• Removing battery-pack
Put the key in the lock, twist the key clockwise until the lock springs out (1,2). When the lock
springs out, the lever of the battery will be released. Now take the key from the lock and pull the
lever of the battery so that it slides upwards - parallel to the down tube - until it releases from the
rail (3). When the battery is not on the bike, always use the protective cover on the contacts on the
frame to protect the electrical system from water (5).
