18. Display control

INGECON SUN STORAGE 1PLAY inverters/chargers incorporate a display, keypad
and LED unit to interface with the installer or the user.
This interface allows the display of the main internal parameters and the
configuration of the entire system during installation.
Parameters, variables and commands are organized as menus and submenus.

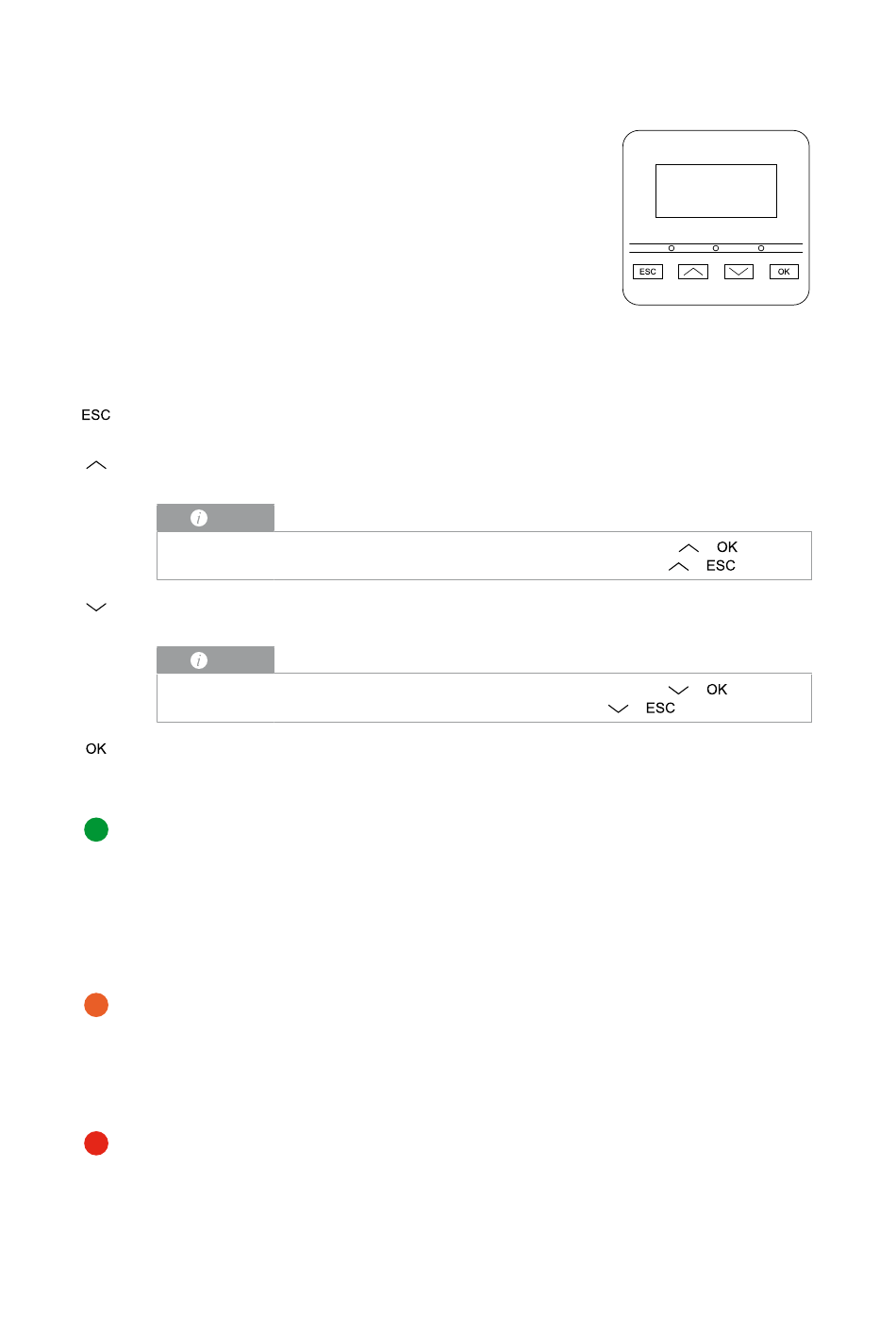

18.1. Keypad and LEDs

The keypad has four keys:
To exit a parameter, leave a menu and returning to the next level up in the structure, to not
confirm a change or not accept a suggestion.
Scroll up the list of parameters or folders within the same level or increase the value of an
editable parameter by one base unit.
To increase the value of a parameter by intervals of 10 use the combination
increase the value of a parameter by intervals of 100 use the combination
Scroll down the list of parameters or folders within the same level or decrease the value of an
editable parameter by one base unit.
To reduce the value of a parameter by intervals of 10 use the combination
the value of a parameter by intervals of 100 use the combination
Its purpose is to accept a parameter as valid, to enter a lower level menu in the structure, to
confirm a change or accept a suggestion.
The front panel has three LEDs:
Green LED
•
•
•
•
Orange LED
•
•
•
•
Red LED
•
56
INFO
INFO
Flashing every 0.2 seconds: the storage system does not have enough energy to start.
The inverter is in the battery emergency charge process from the PV array.
Flashing every 1 second: inverter checking the storage system and starting up.
On: inverter generating voltage in the consumption grid or connected to the auxiliary
grid/genset.
Off: the inverter is disconnected or without firmware.
Three flashes: the external fan is not working correctly.
Flashing every 1 second: the internal fan is not running correctly.
Flashing every 3 seconds: the inverter is limiting power due to high temperature.
On: presence of alarm.
On: manual stop.
+
ABH2013IQM01_C- Installation and Operation Manual
Display control
+ . To
+ .
+ . To reduce
.
