4. Product description
The sewage lifting units of the SANICUBIC 1 FRK series are ready-to-plug, fully flood-
proof lifting units with gas and odour-proof plastic collecting tank.
!
The lifting units are fully floodable with a maximum height of up to 1 m water column
(from the set-up area) at a flooding duration of 2 days at the longest.
In dry rooms, all electrical devices such as controls, sockets, plugs and alarm transmit-
ters must be installed flood-proof.
After flooding and prior to recommissioning, we recommend to carryout an inspection.
Ä Chapter 7 „Maintenance and repair"
The lifting unit operates with a vertical waste water pump without blockage and with an
automatic, pneumatic level control. It is delivered complete with control and all necessary
switching elements.

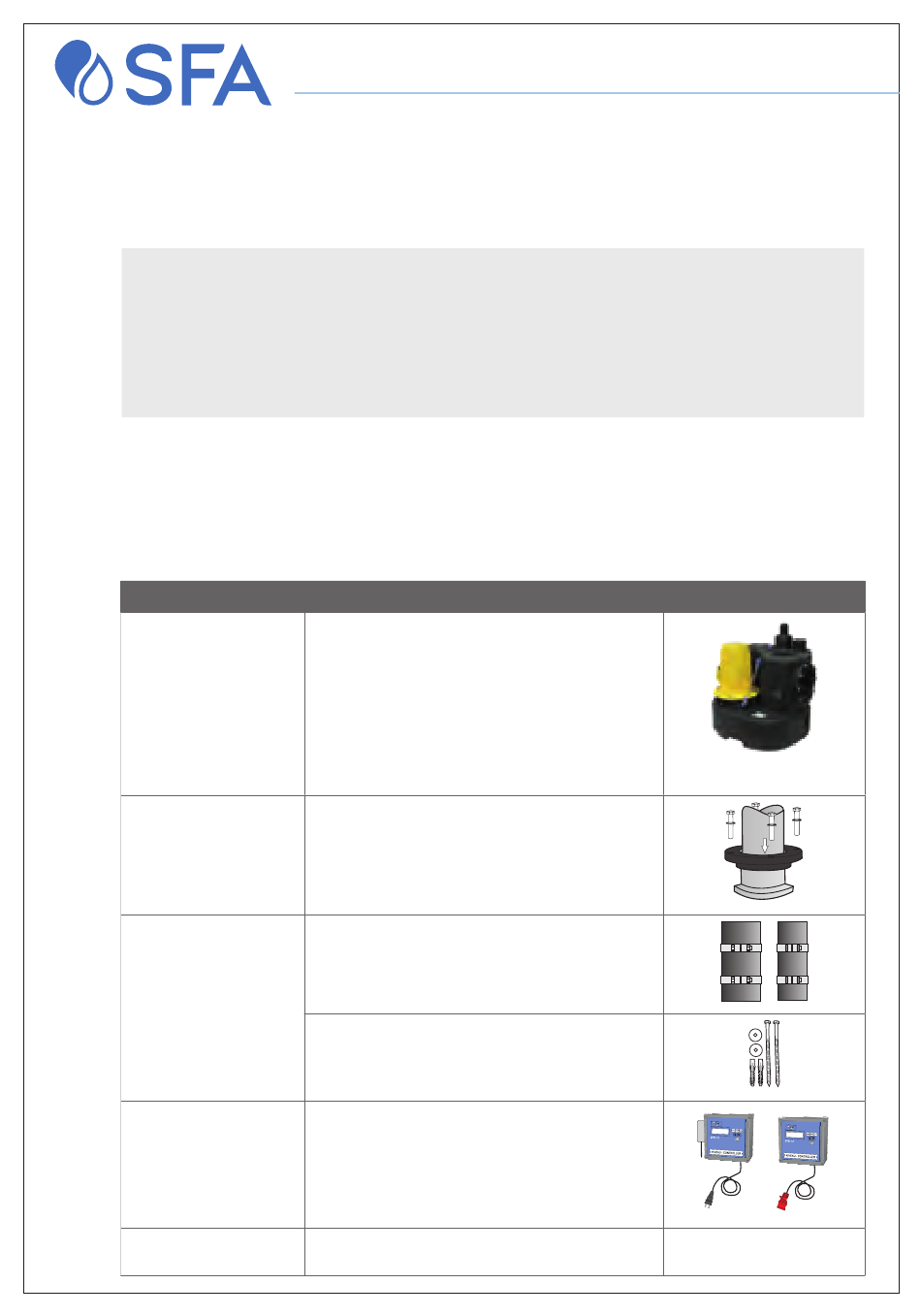

4.1 Scope of delivery
Unit
Collecting tank
complete
Adapter flange
on pressure line
DN 100
Installation accessories • 1 x pipe coupling DN 100 (NBR hose with 2
Pump control
Documentation
56
SANICUBIC 1 FRK
Individual part
• 1 x collecting tank
• 1 x control line pneumatic hose
Ø 8/6 mm, 5 m long
• 1 x connecting cable, 3.5 m long
(connected to the pump motor and the
pump control)
• with an integrated check valve DN 100 (except
for SANICUBIC 1 FRK 3.0-2P, this one with
put-on check valve made of grey-cast iron)
• 1 x adapter flange for transition to
pressure line DN 100
• 1 x O-Ring DN 100
• 1 x Flat seal DN 100
• 4 x Hexagon screw M 16x60
clamps)
• 1 x pipe coupling DN 70 (NBR hose with 2
clamps)
• 2 x Screws 6x140 (SW10)
• 2 x dowels 8 x 60
• 2 x washers
• 1 x pump control ZPS1
(Type three-phase alternating current or
type alternating current)
• Operating manual
• Delivery documents
English
