4. Place the module on a clean, level surface with the gobo wheel facing upwards. To avoid con-
taminating the gobos and other components, please wear clean, lint-free gloves.

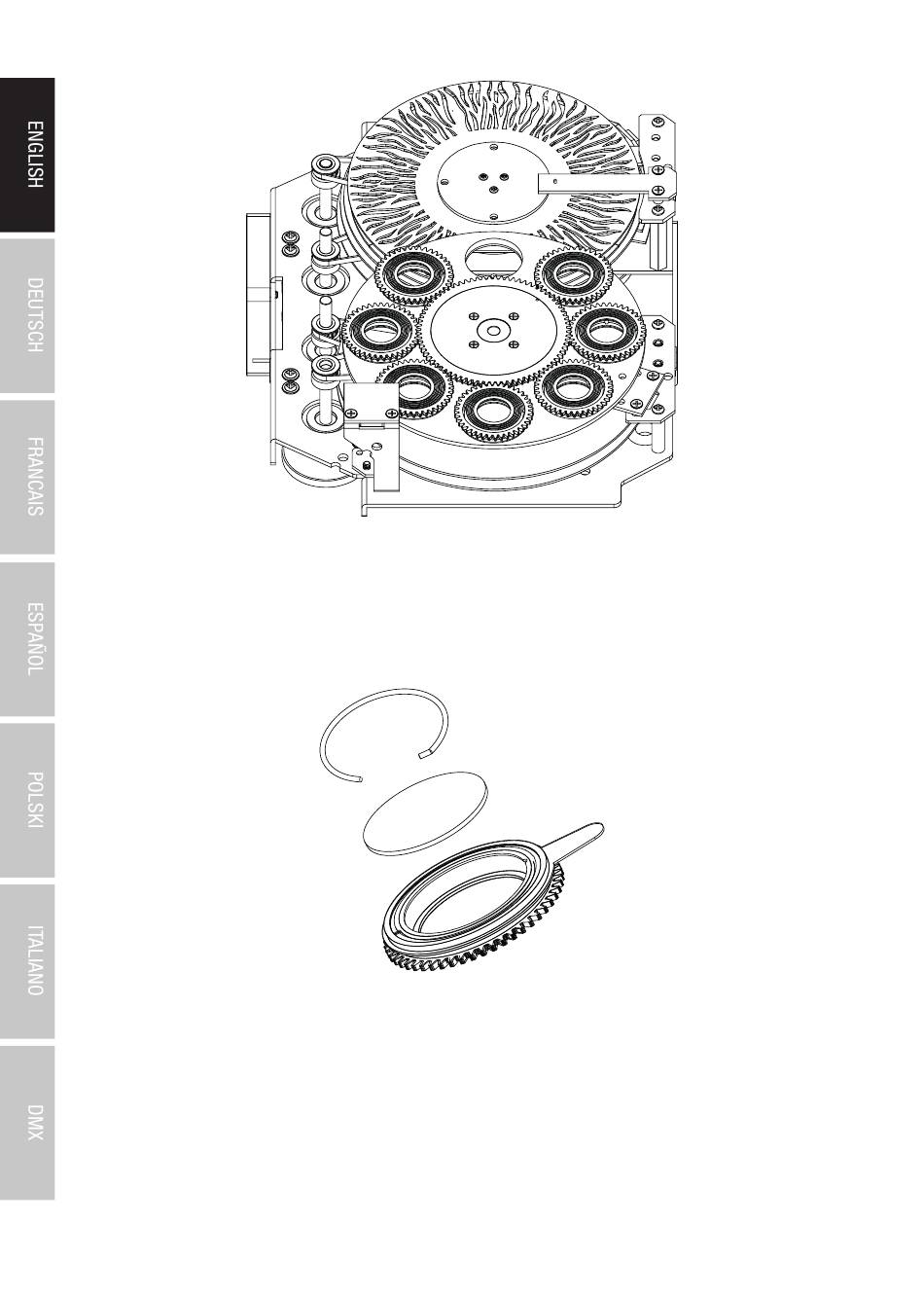

5. Lift the gobo holder slightly up on the gear and then pull it out of the gobo wheel.
6. The gobo can now be removed from the holder and replaced with another one.
7. Then place the gobo holder back into the respective gobo wheel, ensuring that the gobo holder
is correctly positioned in the corresponding recess. For rotating gobos, you can check that the
gobo is positioned correctly by turning the gobo wheel. The gobo must rotate without catching.
8. Re-install the module in the light head, secure it with the two previously loosened screws, and
reconnect the plug for the power and signal supply to the corresponding port.
9. Remove the old seal from the groove in the head cover.
28
