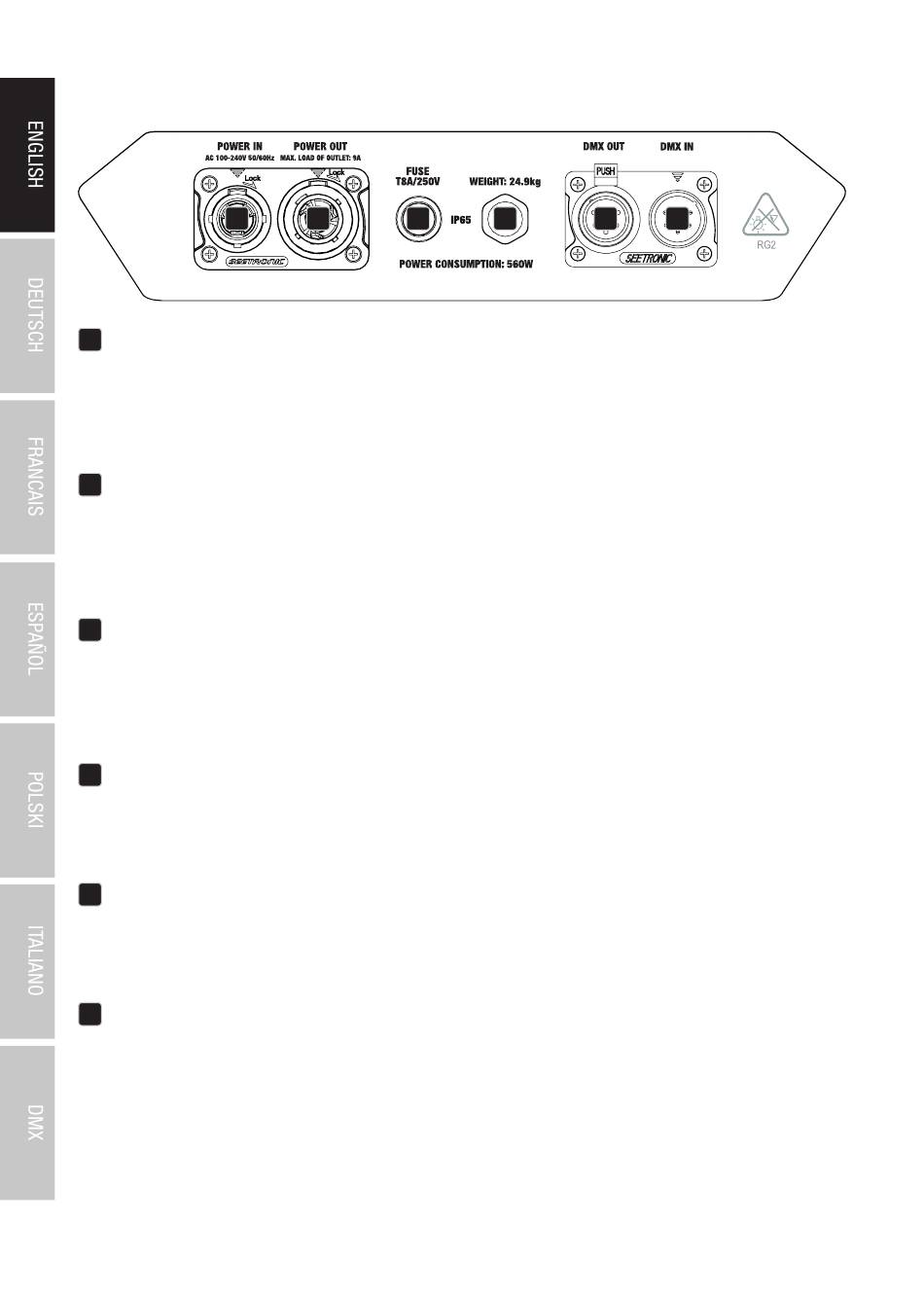

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1
POWER IN
IP65 power input socket with rubber sealing cap. Operating voltage 100–240 V AC / 50–60 Hz.
Connect using the included mains cable. Always close with the rubber sealing cap when not in
use.
2
POWER OUT
IP65 power output socket with rubber sealing cap. Enables power supply to other CAMEO lights.
Always close with the rubber sealing cap when not in use. Ensure that the total current consump-
tion of all connected devices does not exceed the value specified on the device in amperes (A).
3
FUSE
IP65 fuse holder for 5× 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the
same type and value. In the event of repeated fuse failure, please contact an authorised service
centre. Carefully reseal the fuse holder to further ensure IP65 tightness.
4
DMX IN
Male IP65 5-pin XLR socket for connecting a DMX controller (e.g., DMX console). Always close
with the rubber sealing cap when not in use.
5
DMX OUT
Female 5-pin XLR socket for relaying the DMX control signal. Always close with the rubber sealing
cap when not in use.
6
PRESSURE EQUALISATION ELEMENT
Pressure equalisation element to prevent condensation inside the housing. In order to ensure its
proper functioning, the element must be protected from dirt.
ANTENNA
The antenna for wireless DMX control is located inside the base of the device.
