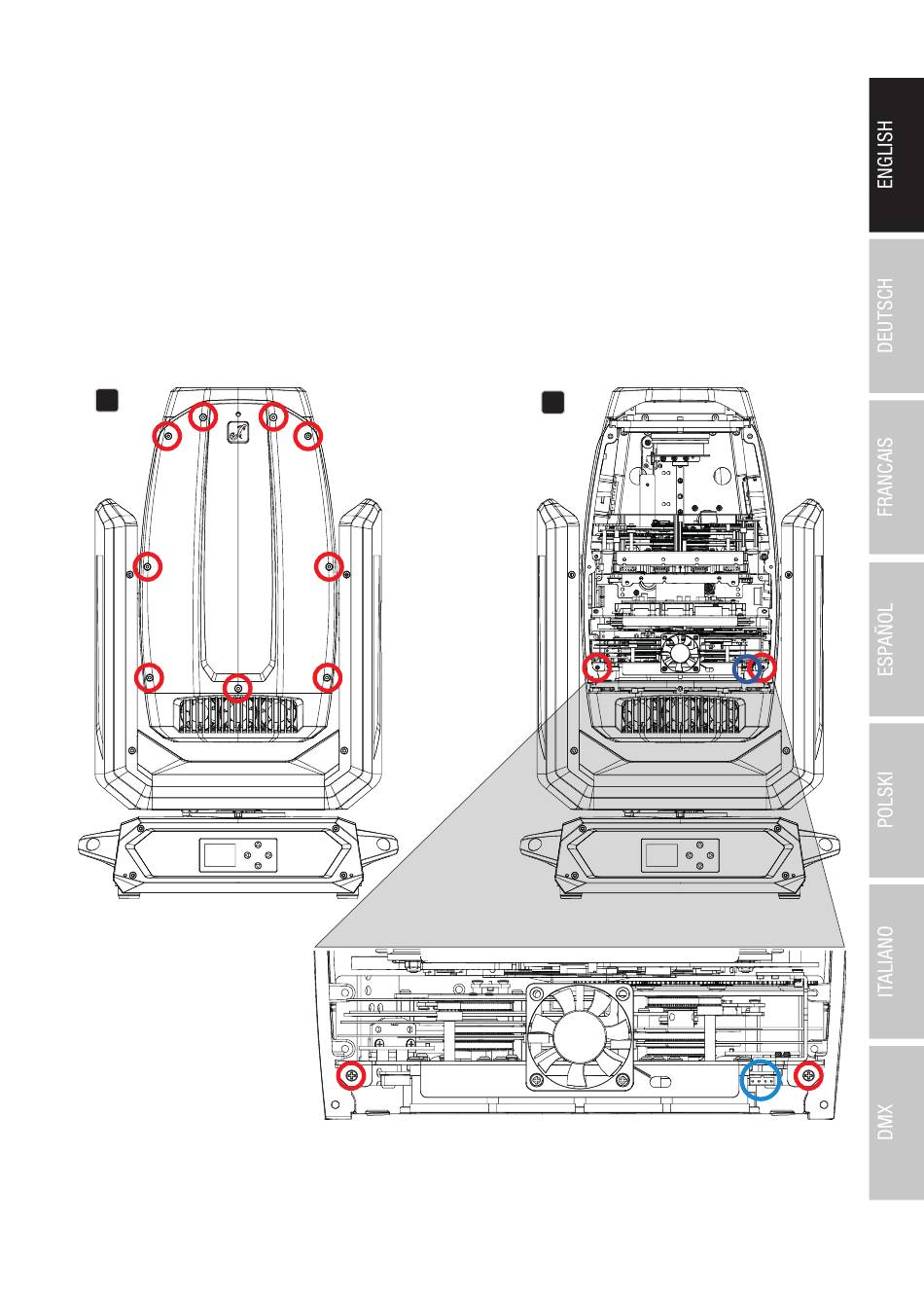

1. Disconnect all poles of the device from the power supply (pull out the mains plug). Now lock the
light head (pan and tilt lock).
2. Loosen the nine Allen screws on the device head cover, located on the side opposite the Pan-
Lock (see red markings), remove the cover from the light head, release the cover's safety cable,
and place it to one side.
3. Carefully disconnect the four-pin plug connection for the power and signal supply of the gobo
module (lower module, see blue marking in the illustration). Then loosen both screws that hold
the module in the guide, and pull the module out of the light head (see red markings in the
illustration).
