7. Mount the dust cover onto the
wheel and press it in place.

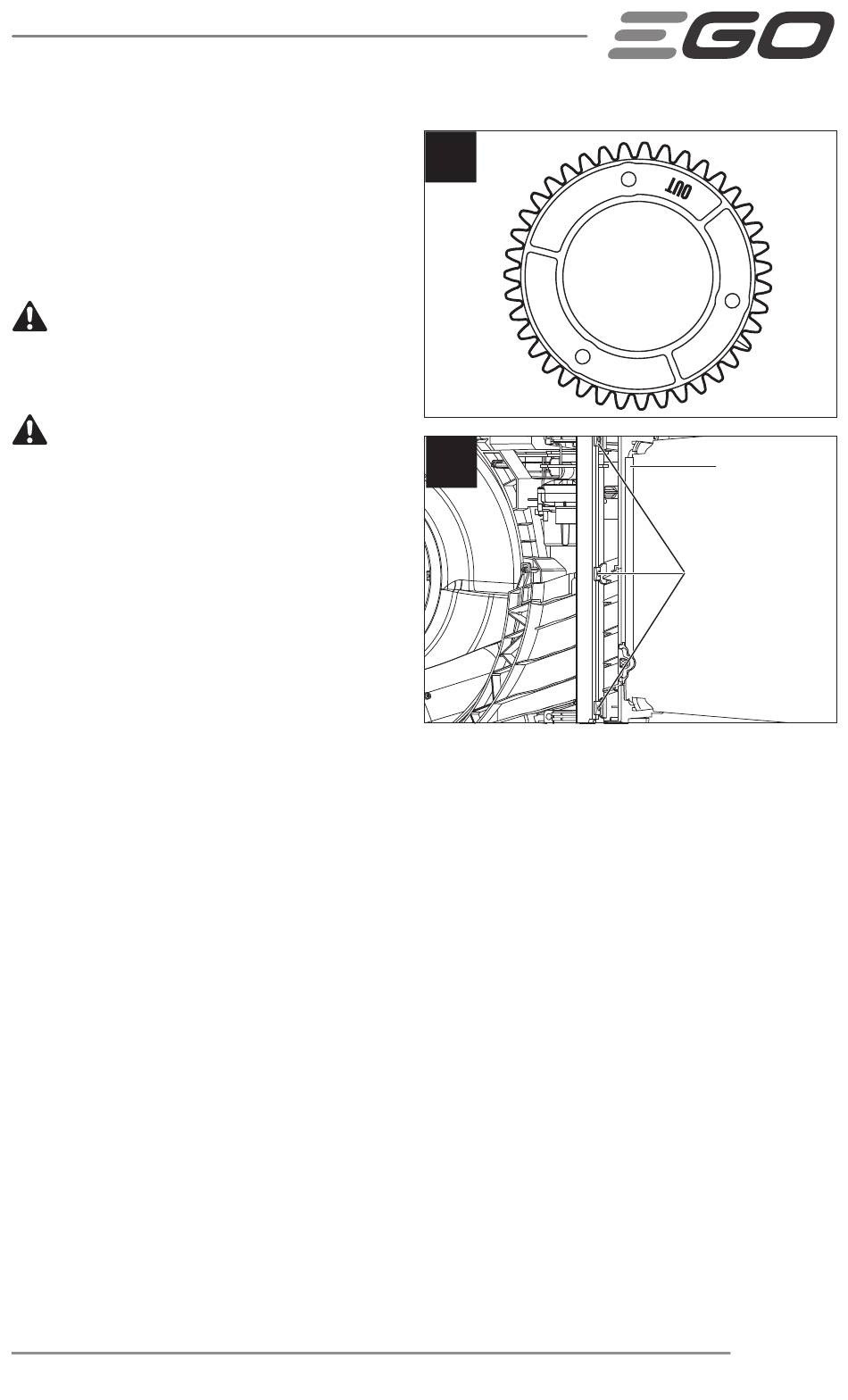

REPLACING THE TRAILING
SHIELD (Fig. 22)
WARNING:
the battery pack(s) when servicing or
transporting the mower.
WARNING:
mower unless the trailing shield is in
place and working. Never operate the
mower with damaged safety devices.
Failure to do so can result in personal
injury. The trailing shield is subject
to wear and damage, which could
expose moving parts or allow objects
to be thrown. For safety protection,
frequently check the trailing shield and
replace it immediately with only the
identical replacement part, listed in this
manual.
1. Remove the battery pack(s).
2. Turn the mower on its side with the upper surface against the wall.
3. Use a Torx T20 screwdriver (not included) to loosen and remove the three locking
screws for the trailing shield; remove the worn trailing shield (Fig. 22).
4. Replace with a new trailing shield and attach it with the three locking screws.
56-VOLT LITHIUM-ION CORDLESS 22" LAWN MOWER — LM2240SP/LM2240SP-FC
Always remove
Never operate the
21c
22
Trailing Shield
Locking Screw
