MAINTENANCE
WARNING:
from the mower before cleaning or performing any maintenance.
WARNING:
other parts may create a hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified service technician.
REPLACING THE BLADES
WARNING:
cutting edges with rags or other materials when performing any maintenance on the mower
blades. Always remove the battery pack when servicing or transporting the mower.
NOTICE:
The following tools (not included) are required for replacement of the blades:
◾
9/16" (14 mm) adjustable wrench (impact wrench with 9/16" (14 mm) socket is
recommended)
◾
Torque wrench with 9/16" (14 mm) socket
◾
Manual screwdriver or metal rod with a diameter of 5/16" (8 mm) or less
◾
Manual screwdriver or metal rod with a diameter of 1/4" (6.35 mm) or less
Replacing the Blade Set
To remove the blade set
Fig. 18a shows the high performance
blade set.
1. Stop the motor, remove the battery
pack(s) and grass bag from the
mower.
2. Turn the mower on its side.
3. Insert a metal rod (stabilizer 1) Ø5/16" (8 mm) or less in the stabilizer hole to
prevent the blade set from rotating when loosening the shaft bolt.
4. Use the 9/16" (14 mm) wrench to turn the shaft bolt COUNTERCLOCKWISE to
loosen and remove the shaft bolt (Fig. 18a).
42
56-VOLT LITHIUM-ION CORDLESS 22" LAWN MOWER — LM2240SP/LM2240SP-FC
To avoid serious personal injury, always remove the battery pack(s)
When servicing, use only identical replacement parts. Use of any
Always protect your hands by wearing heavy gloves or wrapping the

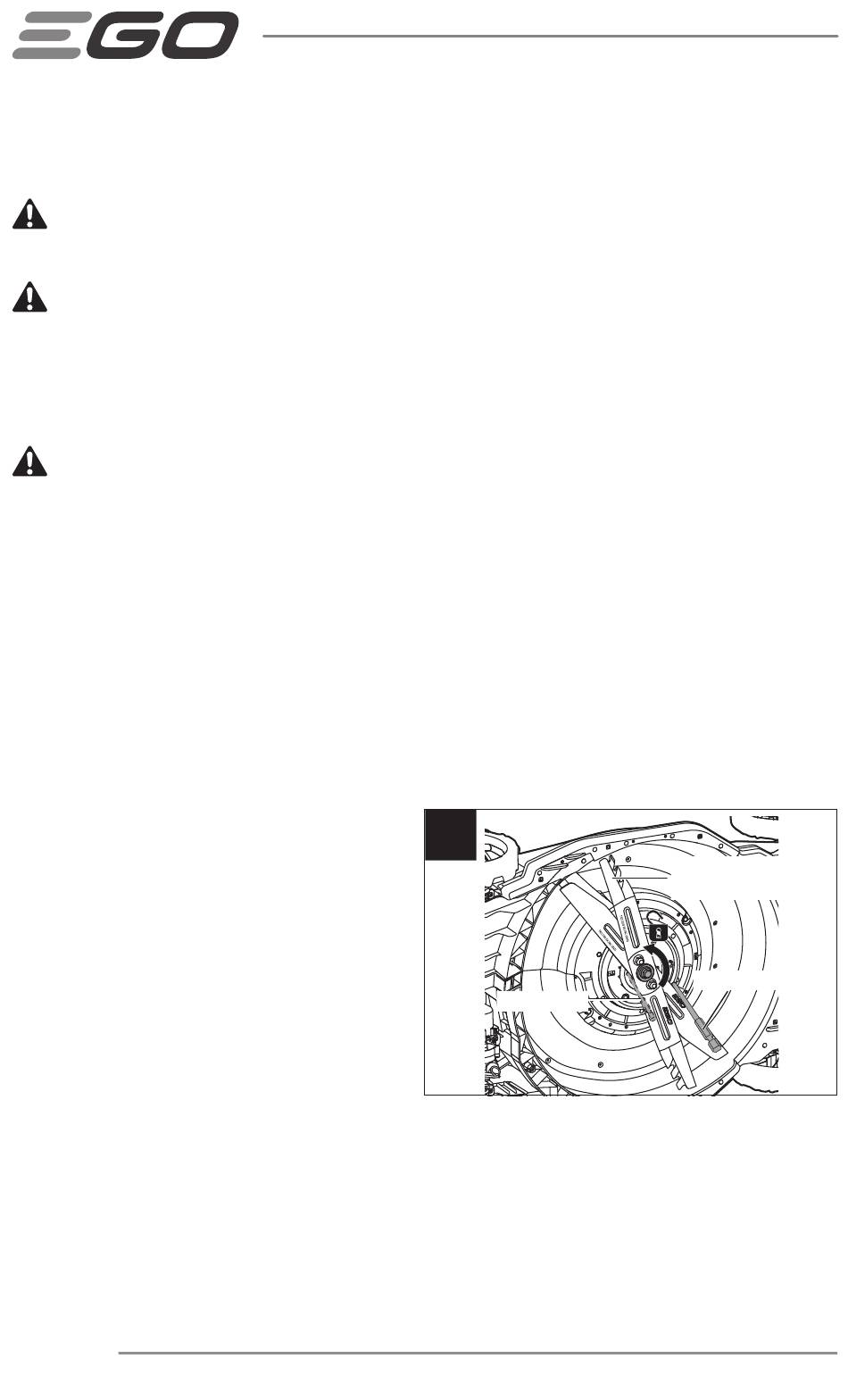

18a
Stabilizer 2
High Performance
Blade Set
Stabilizer 1
