Assembly and Connection

NOTE
The CoolPROTECT is intended for wall mounting. Hereby the display and operating keys
must be clearly visible.
6.1 Overview „Wall-Mounting"
Please note the following approach for the mounting:
1. Measure the upper holding points in the back of the CoolPROTECT (2 holding points)
2. Mark the drilling points of the desired mounting place
3. Drill the holes
4. Install applicable plugs and screws
5. Hang the CoolPROTECT into the upper holes
6. Now mark the lower hole on the CoolPROTECT
7. Remove CoolPROTECT from the wall
8. Drill a hole where you marked the position
9. Install applicable plug
10. Hang the CoolPROTECT into the upper screws
11. With applicable screws, screw the lower holding point tightly

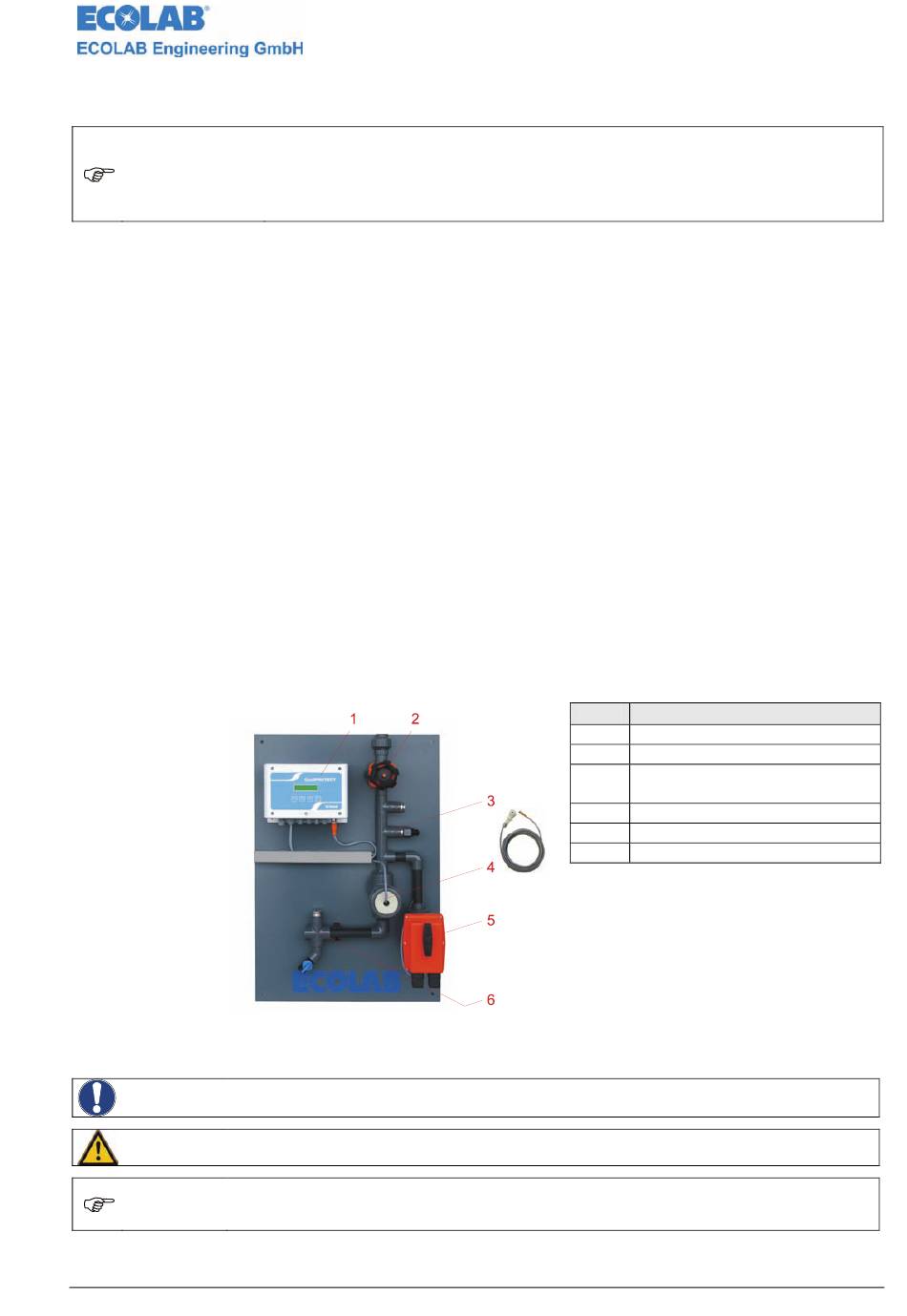

6.2

Mounting Example

Fig. 6.1
6.3 Overview „Electric Connection"
WARNING!
The maximal allowable voltage may not be exceeded.
With the electrical connection all international, national and local applicable safety
CAREFUL!
regulations have to be observed.
It is to be observed that all connections are to be executed so that the EMV-influence
NOTE
regarding the signals is minimized. This is especially important for the release contact.
If necessary protected cable or coupling relay should to be used.
417101555_CoolProtect.doc
The following assembly and installation descriptions are suggestions for a best
possible installation.
The different terms and physical circumstances will however decide the means of the
actual installation.
The installation is to be executed in accordance with the applicable specifications.
Designation
Item.
1
2
3
4
5
6
- 48 -
CoolPROTECT
Stop valve
Optional metering valve with
biocide metering
Conductivity measurement
Bleeding ball valve
Sampling
