Commissioning
3.3 Sensor Installation
● Tape, chalk and a ruler or measuring tape
● Mounting Straps
● Spacer Bar
● Mounting Guide (for Direct Mount)
● Ultrasonic coupling compound
● Transducers (matched set)
3.3.2

Installing the Sensors.

Reflect Mount using Mounting Frames and Spacer Bar
1. After receiving the spacing index from the Installation Menu, prepare the pipe surface area
2. Degrease the surface and remove any grit, corrosion, rust, loose paint, etc.
Before beginning refer to the Reflect Mount Installation diagram example below.
①
②
③
④

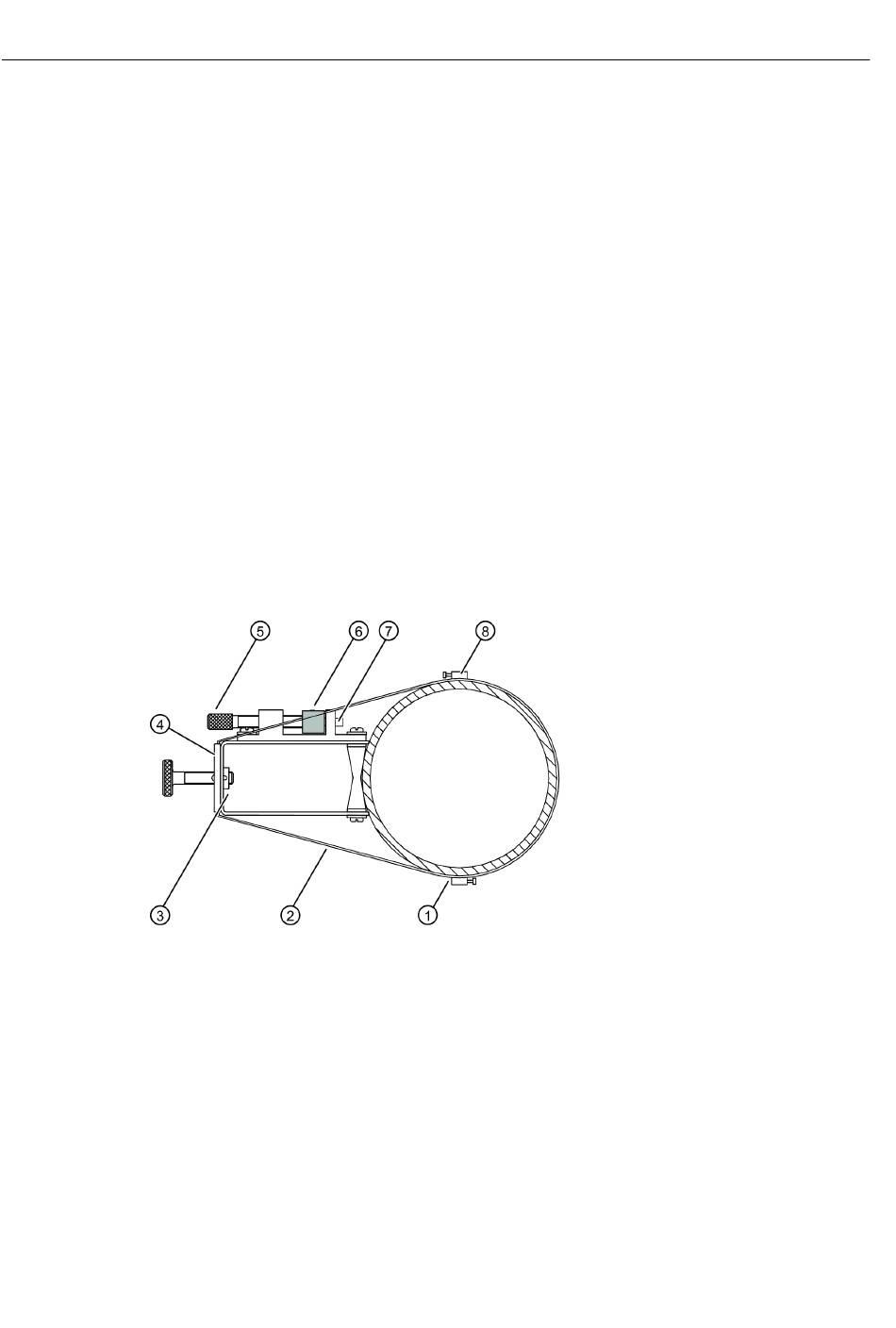

Figure 3-4
24
where the sensors will be mounted.
Optional: On larger pipes, multiple lengths of
straps can be linked together to surround pipe.
Mounting Strap positioned around Mounting
Frame
Sensor shown in the 9 o'clock position on pipe
Mounting Frame
Reflect Mount with Mounting Frames and Spacer Bar (Front View)
⑤
Space Bar Platform & Clamping Screw
⑥
Space Bar (Front View)
⑦
Metal Post
⑧
Mounting Strap Adjusting Screw
FUE1010 IP40 (NEMA 1) Energy Portable
Compact Operating Instructions, 5/2009, A5E02384186-03
