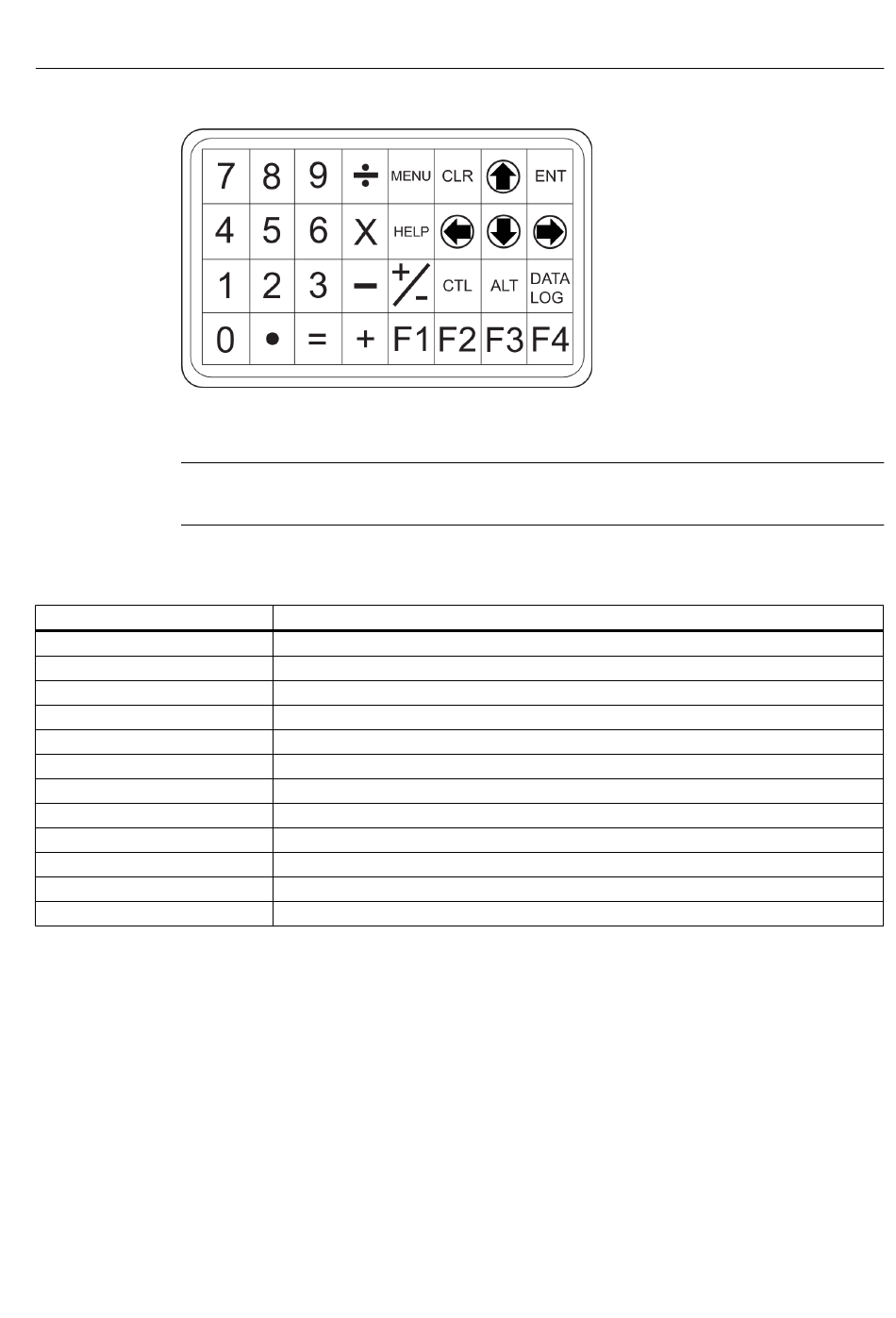

Figure 3-2
Note
Use <Left Arrow> key to return to previous menus.
Table 3-1 Key Pad Function Chart
Keys
MENU
ENT
Left / Right Arrows
Up / Down Arrows
CLR
Numbers 0 - 9
Decimal Point
Math Operators
"F" Keys 1, 2, and 3
CTL and ALT
DATALOG
Plus and Minus [+ / -]
FUE1010 IP40 (NEMA 1) Energy Portable
Compact Operating Instructions, 5/2009, A5E02384186-03
Key Pad
Description
Press to activate the Installation Menu.
Store numeric data, select from option lists, etc.
Menu navigation keys move cursor.
Same as <Left> and <Right> arrows. Scrolls option lists and graphic display screen.
Erases data or selects list options.
Use to type numeric data.
Use for decimal points in numeric data.
4-function math operations in numeric entry cells.
Caution: System Reset Key (use during power up).
Used as shift keys for alternative key functions.
Triggers immediate Datalogger report.
Changes the sign of numeric data.
