3. Plug the 1015BCK-2 Adapter/Battery Charger (USA) (7ME39403BC10) or 1015BCA-2
4. Charge the Battery Pack for at least 8 hours before using it for the first time.
Note
A [LOBAT] flag appears on the flowmeter graphic screen when the remaining battery
operating time is less than 20 minutes.
FUE1010 IP40 (NEMA 1) Energy Portable
Compact Operating Instructions, 5/2009, A5E02384186-03
(EURO) (7ME39403BC20) AC power cord into a proper AC source. Plug the Battery
Charger DC output cable into the DC input connector on the 1015BB Battery Pack.
①
Plug Type CEE 7/16 (EUR)
②
Plug Type NEMA 1-15P (USA)
③
Cord 1829 mm (6 ft)
④
Male "Cigarette" Connector

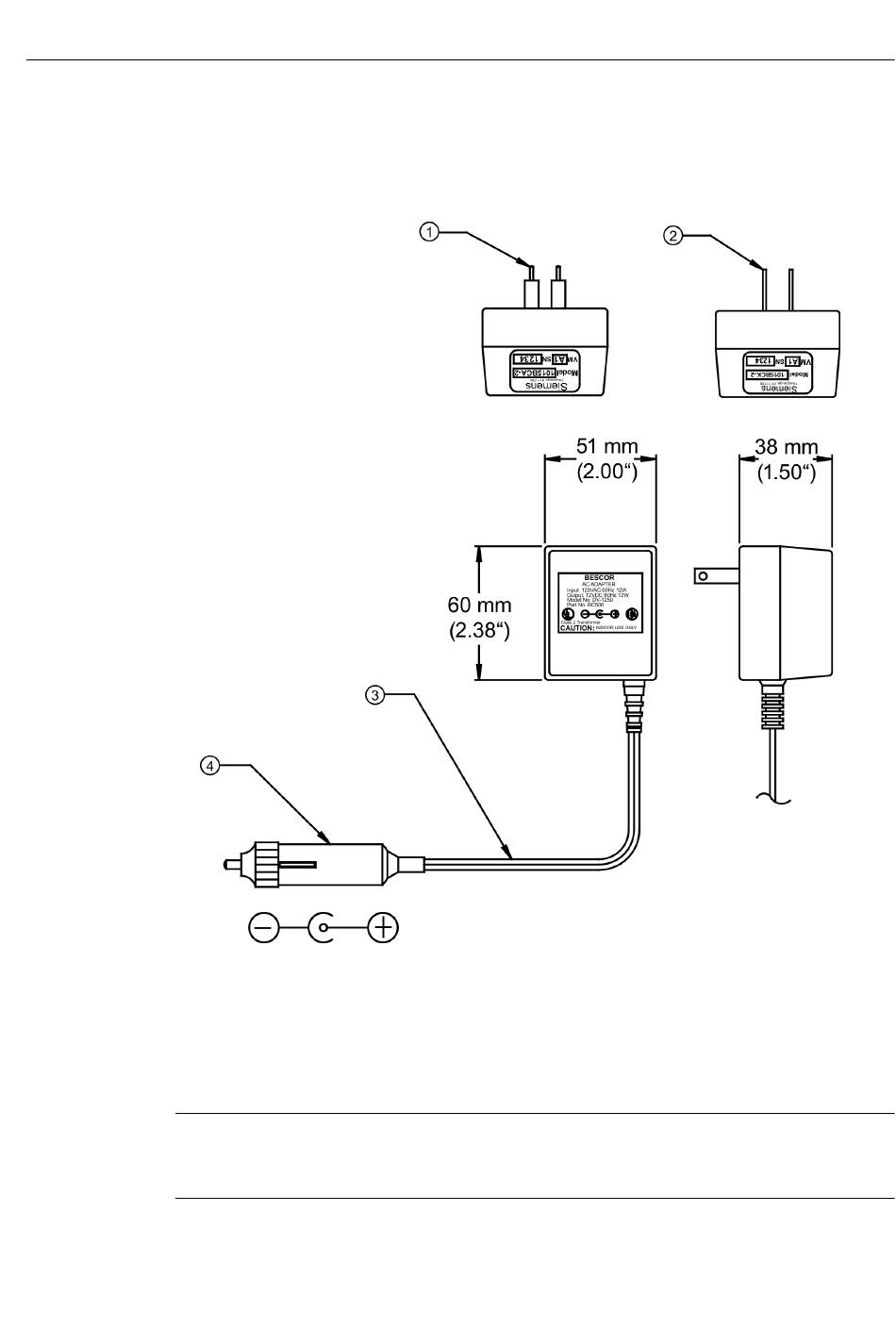

Figure 2-3 1015BCK-2 and 1015BCA-2 Battery Chargers
Installation
2.1 Application Guidelines
