Power supply
Functional earth connection
12
AVENTICS | AES I/O Modules, Analog | R412018147–BAL–001–AG

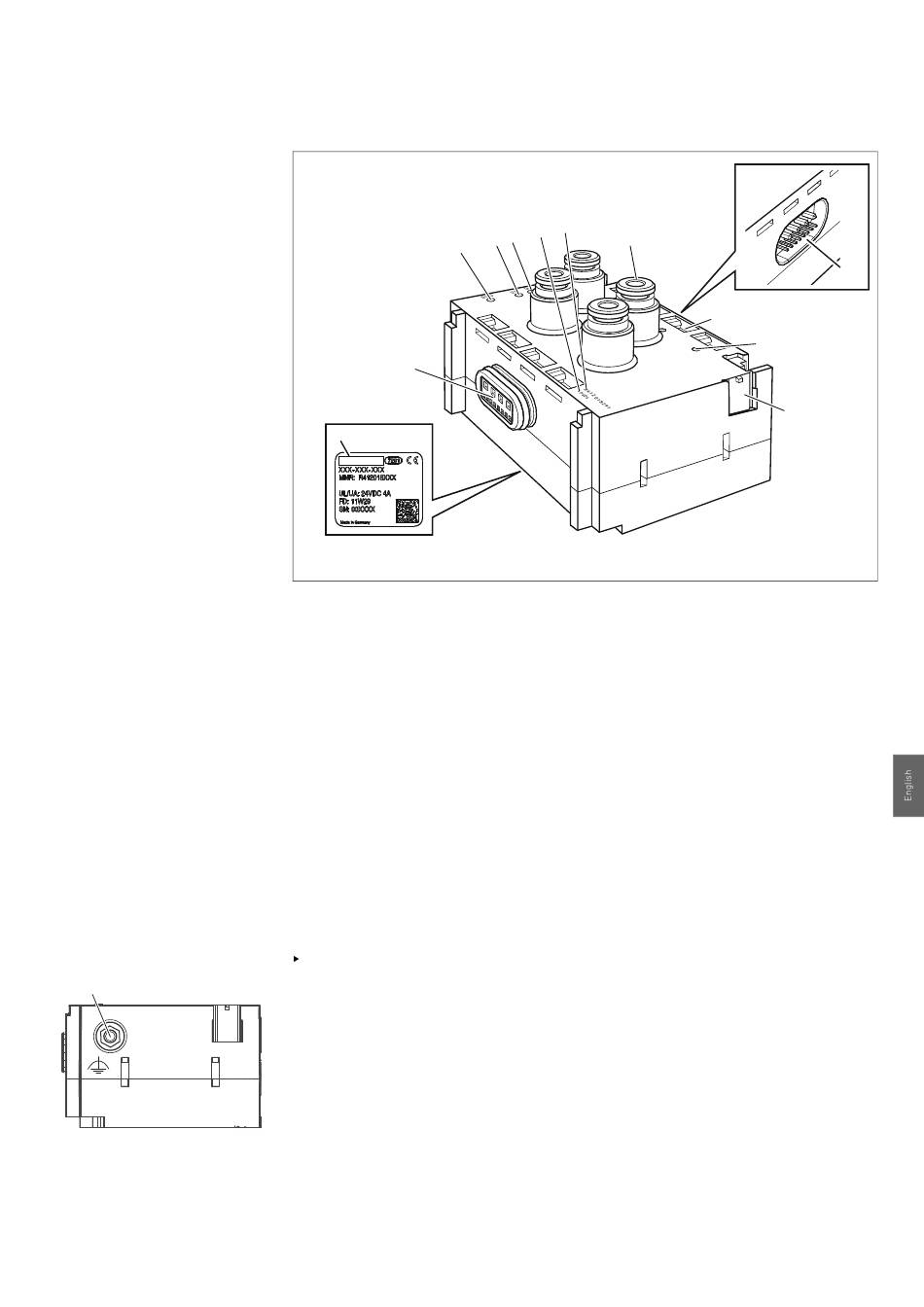

Fig. 2 shows the device overview for the pressure measurement module.
1
13
14
Fig. 2: Device overview for the pressure measurement module
1 DIAG LED for module diagnosis
2 LED (not used)
3 LED for monitoring power supply UL (input
module)
4 PLC configuration key
5 Material (part) number
8 Field for channel and connection label
9 LED (not used)
4.1

Input module 2AI2M12E

4.1.1

Electrical connections

The bus coupler supplies power for the input module via the electrical backplane connections (13)
and (15). The module does not contain any additional power supply connections.
To discharge EMC interferences, connect the FE connection (12) to the I/O module via a
low-impedance line to functional earth. The cable cross-section must be selected according to
the application.
5
4
2 3
16
5
10 Field for equipment ID
13 Electrical connection for AES modules
(female)
14 Rating plate
15 Electrical connection for AES modules (male)
16 Input for pneumatic pressure
77
About This Product
15
8
9
10
