1.3

DESCRIPTION OF THE HEATING SYSTEM

The Alde Compact 3020 boiler (figure 1) is designed to provide both heat and hot water.
The heating system includes both an LP Gas burner and an electric heating element and you can use the system with
either LP Gas, electricity or both.
The heating system consists of the boiler unit as well as an expansion tank, which is installed at the highest point
the RV. Check with your RV owner's manual to determine where the expansion tank is installed. The heating system
works by circulating hot glycol fluid through pipes and heat convector's, similar to the heating system used in many
homes.
The heating system is fitted with a 12-volt electrical circulation pump that is used to circulate the heated fluid. The heat
convector's located near the floor of the RV allow air to be heated by the hot fluid in the system and then the air rises
and circulates to heat the space in your RV. The heating system is also fitted with a built-in hot water boiler that has a
volume of approx. 2.5 gallons (8.4 liters) of fresh water.
The LP Gas boiler in the heating system can produce around 3 gallons (12 liters) of 104 °F (40 °C) water every half-
hour. If the electric heating elements are used instead of gas for powering the heating system, the capacity is slightly
less. You may use the heating system to heat the RV without filling the hot water boiler.
WARNING
HOT WATER HAZARD
VARNING
Hot water at temperatures above 120 °F (49 ºC) can
AVERTISSEMENT
cause serious scalding injuries and in extreme cases
even death.
WARNUNG
The heating system can deliver hot water at tempera-
ADVARSEL
tures up to 185 °F (85°C).
VAROITUS
– For safe operation, use a mixing valve set at
a temperature no higher than 118 °F (48 °C).
ADVERTENCIA
AVVERTENZA
The control system allows you to select LP Gas, electricity or both as the energy source. If both electricity and gas are
WAARSCHUWING
selected, the system gives priority to electrical power.

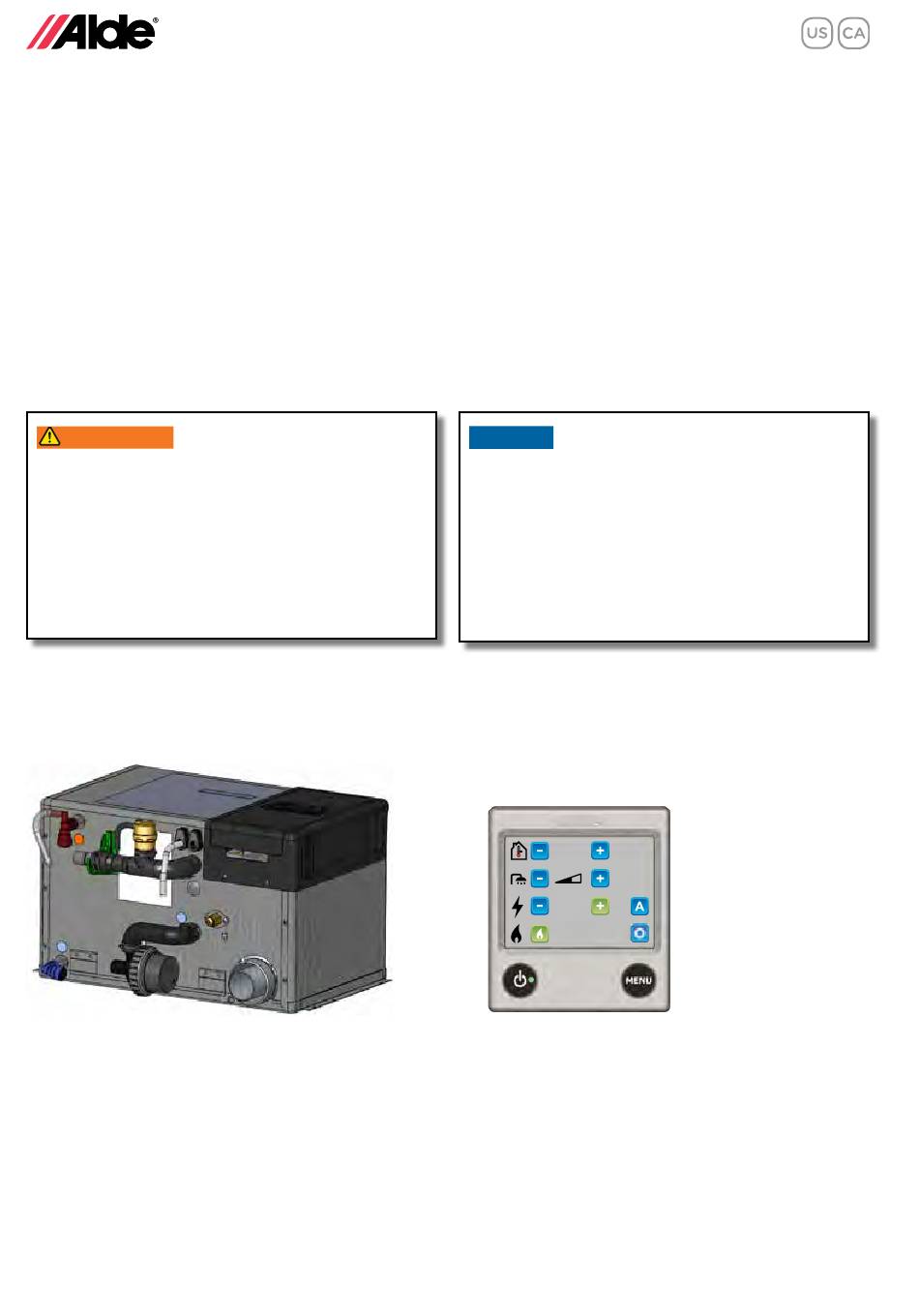

Figure 1. Alde Compact 3020 boiler
6
NOTICE
The Compact 3020 heating system is designed to be
used with a thermostat control.
This manual includes instructions for controlling the
system using the Alde control panel 3020 623 (see
figure 2), which is an optional part of the system.
If your RV has a different control system installed,
please refer to the instructions for that system.
72.0°
F
2 kW
Figure 2. Alde control panel 3020 623
