2.13 CONTROL PANEL 3020 623 CABLE CONNECTIONS

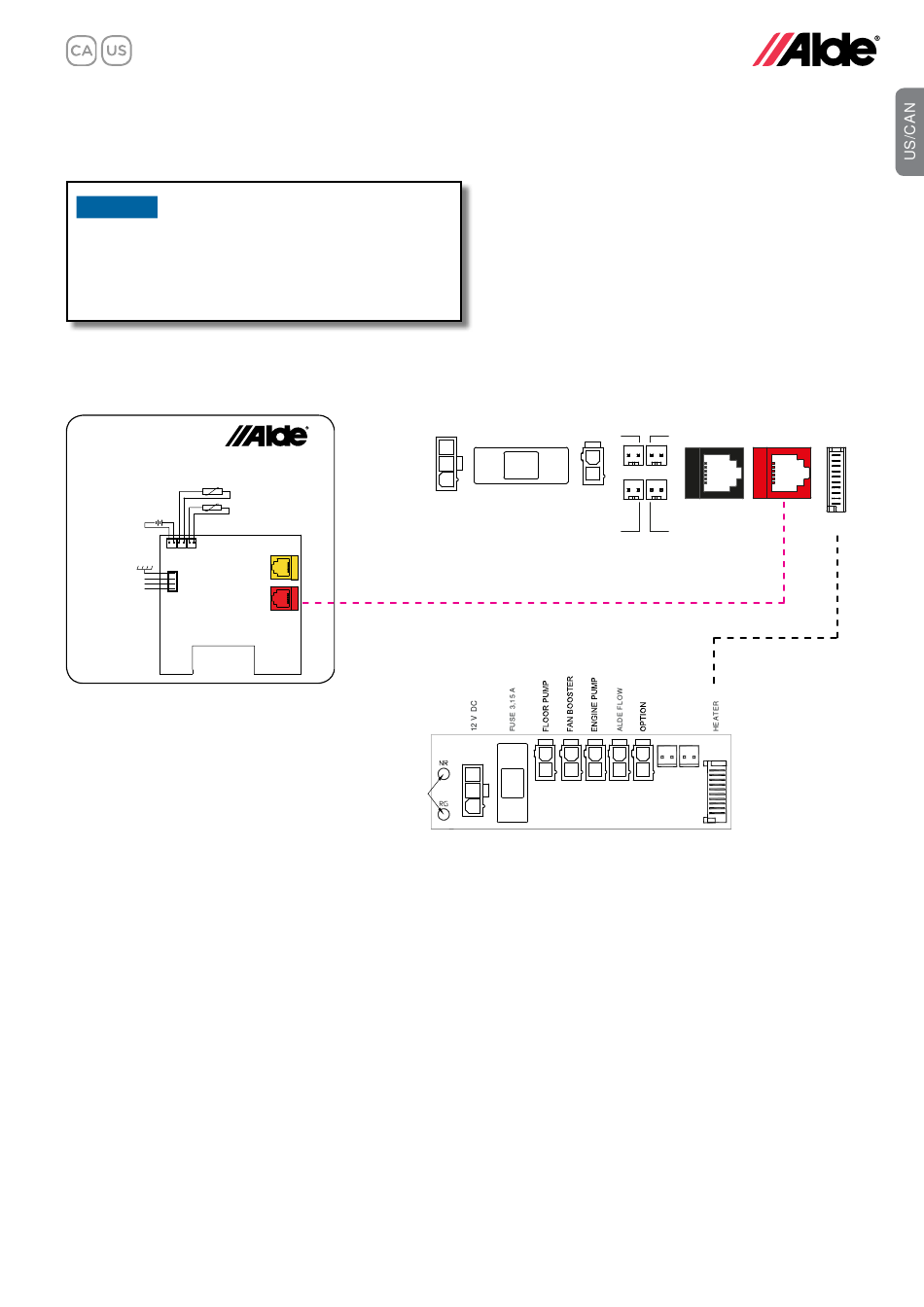

Connect accessories to the control panel as shown in the diagram below.
NOTICE
Do not clamp or bind 12V cables or sensor cables
together with 120V cables. It is preferable not to place
the cables close to each other. If the cables are
bundled, the risk of shutdown increases.
Rear side of control panel
Remote Sensor 2 Bed
Remote Sensor 1 Sofa
+
Battery Back-up (3V DC)
External panel
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle manufacturer's
instructions.
3020
12 V DC
CI Bus
Heater
OUT 12V DC
CONNECTED TO HEATER
Optional board for Compact 3020 HE
Circuit board on Compact 3020 HE
Load
monitor
E
D
12 V
Fuse 3,15 A
pump
External
start
-
+
Outdoor
sensor
Tin bus Control panel
F
I
Window
Option board/
sensor
Mechanical panel
