OPERATING INSTRUCTIONS CONTROL PANEL 3020 623

Please read these instructions carefully before using the heating system. For Operating and Installation
Instructions of the heating system, please see separate instruction. These instructions are approved for the Alde
Compact 3020 boiler fitted in recreational vehicles, in accordance with ANSI Z21.13-2014, CSA 4.9-2014. Installation
and repairs can only be carried out by a professional. National regulations must be adhered to.
CAUTION
OBSERVERA
Do not drink any alcohol or take any drugs before or
during operating the heating system and follow the
ATTENTION
safety instructions in this manual carefully.
VOORZICHTIG
2.1

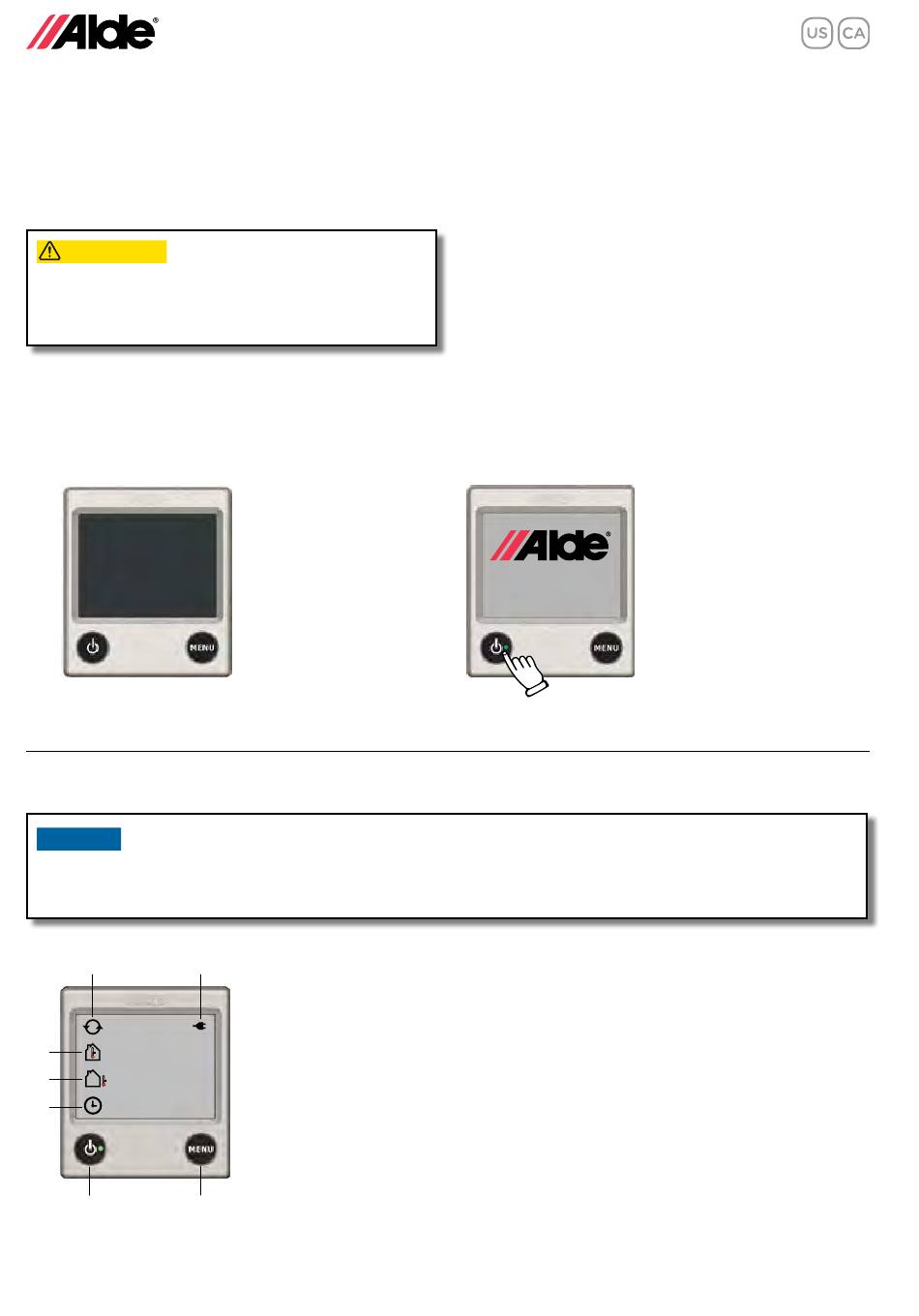

STARTING THE HEATING SYSTEM

1. The control panel and the heating
system are switched off.
2.2

THE CONTROL PANEL IN STANDBY MODE

NOTICE
If "Standby Brightness" is set to Off, the display goes out when it enters standby mode, but lights up if you press the
screen. See settings in chapter 2.9, section 8.
D E
72.0°
C
43.0°
B
Fri 6:30 am
A
G F
16
A. Clock
The clock shows day and time. The
clock is set under 2.9, section 4.
F
B. Outdoor temperature
The outdoor temperature is
F
displayed if a sensor probe is
installed.
C. Indoor temperature
The indoor temperature is
displayed automatically.
D. Circulation pump
This symbol is displayed when the
circulation pump is requested.
2. To start the heating system, press the On/Off button
and the start-up display will appear. The heating starts
with the most recent setting.
3020
High Efficiency
E. 120 volts
This symbol is displayed when
120V is connected to the heating.
F. MENU button
Button for setting Menu.
G. On/Off button
Shut down / turn on the heating.
A green LED comes on
beside the On/Off button
when the panel/heating sys-
tem is on.
